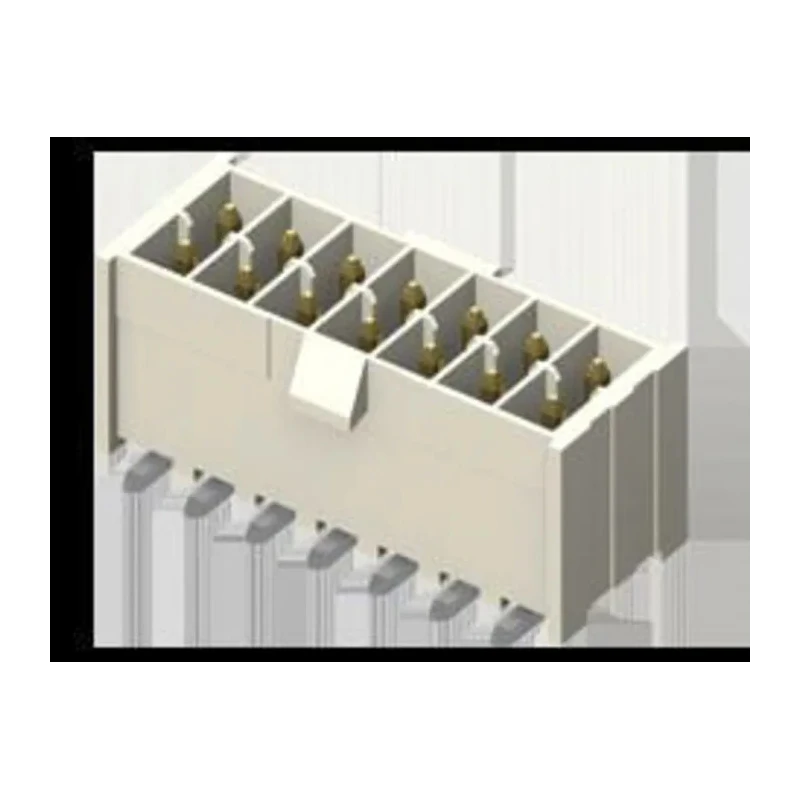

Samtec IPL1 Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 954V |
| Brand | Samtec |
| Orientation | Right Angle |
| Model | IPL1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 1.52mm |
Key Features
- This PCB header uses liquid crystal polymer housing for high durability.
- It has a right angle orientation suitable for wire-to-board connection.
- The contact material is phosphor bronze plated with gold for excellent conductivity.
- Designed for through hole mounting with solder termination and a 1.52 mm tail pin length.
- Operational temperature range from -55°C to 125°C ensures robust performance in various environments.
- This header supports voltages up to 954 V and current ratings up to 3.8 A at 95°C.
- Comes with male contacts and is shrouded to protect against accidental shorts.
Product Description
Samtec IPL1-105-01-S-D-RA-K is a high-quality Right Angle Through Hole PCB Header designed for reliable wire-to-board connections in electronic assemblies.
It features 10 individually shrouded contacts arranged over 2 rows with a precise 2.54 mm pitch. The housing is manufactured from liquid crystal polymer, offering excellent mechanical strength and thermal stability.
The male contacts are made of phosphor bronze and plated with gold to ensure low contact resistance and high corrosion resistance. The through hole mounting type with solder termination and a tail pin length of 1.52 mm allows for stable assembly and excellent solder joint integrity.
Operating over a wide temperature range of -55°C to 125°C, this connector performs reliably in industrial applications, including electronic equipment, manufacturing, and laboratory devices.
The header is rated for voltages up to 954 V and can support current ratings of up to 3.8 A at 95°C, making it suitable for demanding power and signal applications. This PCB header uses liquid crystal polymer housing for high durability.
It has a right angle orientation suitable for wire-to-board connection. The contact material is phosphor bronze plated with gold for excellent conductivity. Designed for through hole mounting with solder termination and a 1.52 mm tail pin length.
Operational temperature range from -55°C to 125°C ensures robust performance in various environments. This header supports voltages up to 954 V and current ratings up to 3.8 A at 95°C. Comes with male contacts and is shrouded to protect against accidental shorts.
This product is made in the United States and conforms to industry standards, though no specific approvals are listed. It is ideal for professional electronic component integration in industrial, laboratory, manufacturing, and commercial electronics applications.
Browse more high-quality PCB Headers from Samtec on EnvMart to find compatible connectors and accessories for your electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports voltages up to 954 V.
It can support current ratings of up to 3.8 A at 95°C.
The header features a 2.54 mm pitch and has 10 contacts arranged in 2 rows.
The operational temperature range is from -55°C to 125°C.
The housing is made from liquid crystal polymer, which provides high durability and thermal stability.
It uses solder termination for secure mounting.
The tail pin length is 1.52 mm.
This model is shrouded to protect against accidental shorts.
The contacts are made of phosphor bronze and plated with gold for excellent conductivity.
It supports a wire-to-board connector system.
This product is made in the United States.
It is suitable for industrial applications, including electronic equipment, manufacturing, and laboratory devices.
