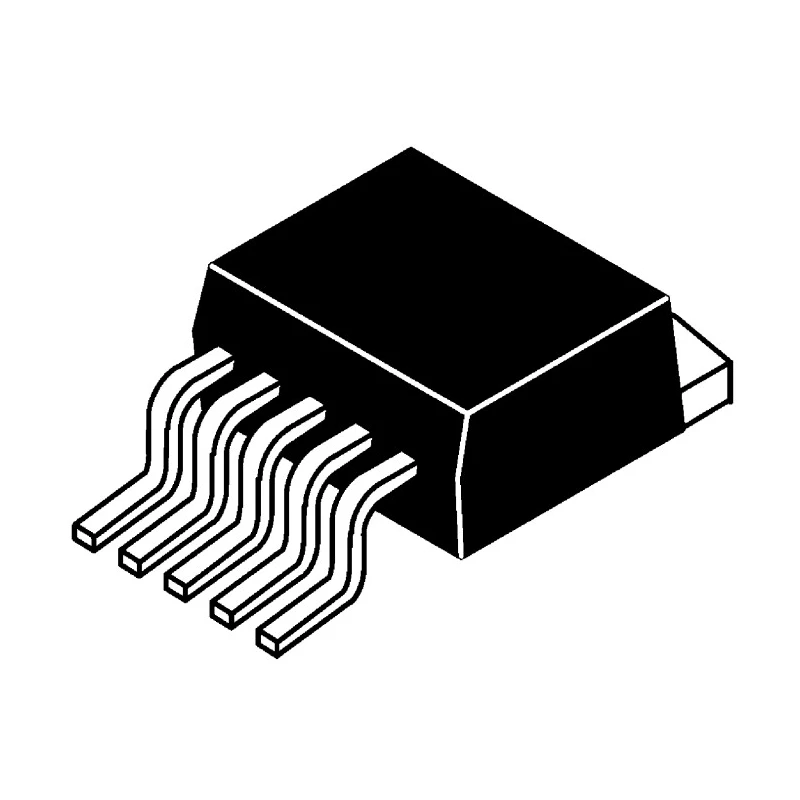

Texas Instruments Boost Converter Surface Mount TO-263 Package 12.6V Output Voltage 5A Output Current LM2587S-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 90% |
| Length | 10.16mm |
| Model | LM2587S-ADJ/NOPB |
| Depth | 4.57mm |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM2587 |
| Output Current | 5A |
| Package Type | TO-263 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | 125°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Line Regulation | 100 mV |
| Standards/Approvals | JEDEC, RoHS |
| Minimum Input Voltage | 4V |
| Number of Pins | 5 |
| Output Voltage 1 | 12.6V |
| Output Voltage 2 | 5.25V |
| Wide Input Voltage Range | 4V to 40V |
| Output voltage versions | 5V, 12V, and adjustable |
Key Features
- This boost converter operates with a wide input voltage range from 4V to 40V.
- It features a TO-263 surface mount package with 5 pins, suitable for compact electronic applications.
- The device delivers a high efficiency of approximately 90% for power savings.
- It supports output voltage versions including 5V, 12V, and adjustable configurations.
- Its maximum input voltage rating is 40V with minimum input at 4V, making it versatile for various designs.
- The converter is suitable for applications requiring a single output of up to 5A current.
- Incorporates internal protections including soft-start, current limit, under voltage lockout, and thermal shutdown.
- The rugged design operates reliably within an extended temperature range up to 125°C.
Product Description
Texas Instruments LM2587S-ADJ/NOPB boost converter is a high-performance surface mount voltage regulator providing an output voltage of 12.6V and output current of 5 A. It is part of the LM258x SIMPLE SWITCHER® Regulator Series designed for flyback, step-up (boost), SEPIC, and forward converter topologies. This device requires few external components and offers stable operation with high efficiency.
The converter supports a wide input voltage range from 4V to 40V, allowing it to be used in versatile power supply environments. Featuring a TO-263 package with 5 pins, it facilitates easy PCB assembly with surface mount technology, suitable for compact industrial electronics.
The product integrates features such as internal soft-start to reduce inrush current, current limit protection to safeguard the output transistor, under voltage lockout, and thermal shutdown to enhance reliability under harsh conditions.
Designed to deliver a consistent system output voltage within ±4% tolerance across line and load variations, the device offers output voltage options of 5V, 12V, or adjustable outputs, accommodating a variety of applications.
With a high efficiency rating of 90%, the LM2587S-ADJ/NOPB is suitable for efficient power conversion applications in industrial, consumer electronics, and embedded systems. The regulator meets JEDEC and RoHS compliance standards ensuring quality and environmental responsibility.
This boost converter operates with a wide input voltage range from 4V to 40V. It features a TO-263 surface mount package with 5 pins, suitable for compact electronic applications. The device delivers a high efficiency of approximately 90% for power savings.
It supports output voltage versions including 5V, 12V, and adjustable configurations. Its maximum input voltage rating is 40V with minimum input at 4V, making it versatile for various designs. The converter is suitable for applications requiring a single output of up to 5A current.
Incorporates internal protections including soft-start, current limit, under voltage lockout, and thermal shutdown. The rugged design operates reliably within an extended temperature range up to 125°C. It complies with JEDEC and RoHS standards for quality and environmental safety.
This product is ideal for electronic, industrial, and power supply applications requiring DC-DC step-up voltage conversion.
Explore more in the DC-DC Converter category for high-quality power regulation components and modules suitable for industrial, laboratory, manufacturing, and embedded electronic systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 12.6V.
The maximum input voltage rating for this unit is 40V.
It is capable of delivering an output current of up to 5A.
The device operates with a high efficiency of approximately 90%.
It operates with a wide input voltage range from 4V to 40V.
The dimensions of the package are 10.16mm in length, 8.64mm in width, and 4.57mm in depth.
This boost converter features a surface mount design.
It incorporates protections such as soft-start, current limit, under voltage lockout, and thermal shutdown.
It supports output voltage versions of 5V, 12V, and adjustable configurations.
The load regulation is 100 mV, and the line regulation is also 100 mV.
It meets JEDEC and RoHS compliance standards for quality and environmental responsibility.
The rugged design operates reliably within an extended temperature range up to 125°C.
