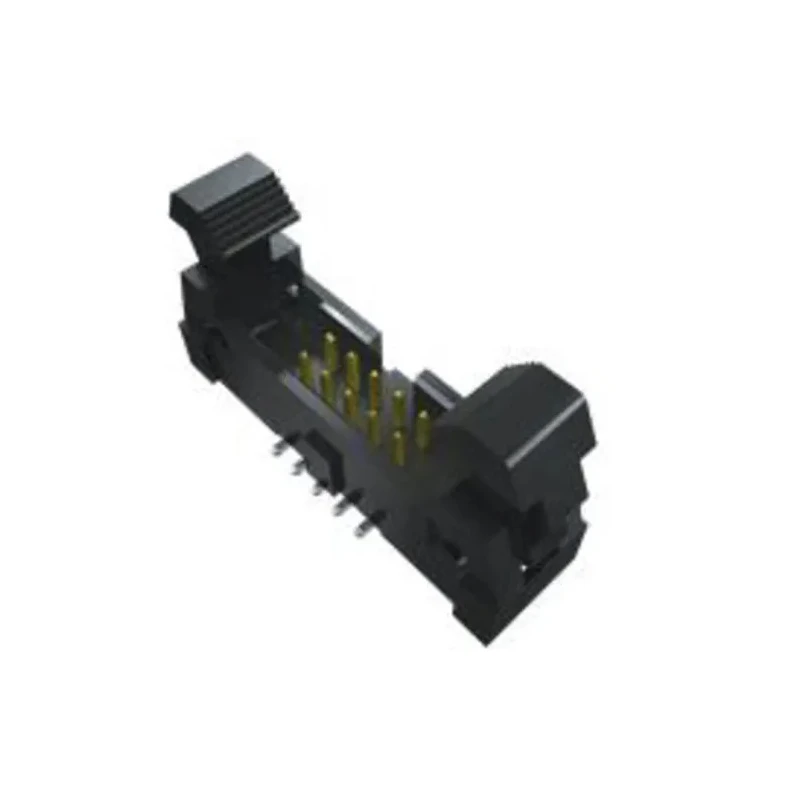

Samtec EHT Series Straight Surface PCB Header, 40 Contact(s), 2 mm Pitch, 2 Row, Shrouded EHT-120-01-S-D-SM-LC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | EHT-120-01-S-D-SM-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | EHT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The header features 40 male contacts arranged in 2 straight rows.
- The pitch between contacts is 2 mm, enabling compact PCB designs.
- Constructed with a liquid crystal polymer housing for enhanced durability.
- Contacts made of phosphor bronze with gold or tin plating ensure excellent conductivity.
- Shrouded design provides polarization and protection against misalignment.
- Surface mount type is suitable for PCB surface assembly.
- Operates reliably within a temperature range of -55°C to 125°C.
- Termination is via soldering to secure the connector firmly on the board.
Product Description
The Samtec EHT-120-01-S-D-SM-LC is a high-quality PCB header from the EHT Series, featuring 40 contacts arranged in 2 straight rows with a 2 mm pitch. This surface mount, board-to-board connector is designed with a shrouded housing made of liquid crystal polymer, providing robustness and polarization to ensure proper mating.
The contacts are made from phosphor bronze and plated with gold or tin, which provides reliable electrical conductivity and corrosion resistance. Operating temperature ranges from -55°C to 125°C, making it suitable for industrial and electronic applications requiring durability over a wide thermal range.
The solder termination type ensures a secure mechanical and electrical connection to printed circuit boards in various electronic devices. Ideal for use in electronics manufacturing and assembly environments, this connector supports efficient and reliable PCB interconnections.
The design guarantees compatibility with all common pin counts from 3 to 25 in the series, though this particular model features 40 contacts for higher density connections. Its shrouded structure prevents misalignment during assembly and enhances connector lifespan.
The header features 40 male contacts arranged in 2 straight rows. The pitch between contacts is 2 mm, enabling compact PCB designs. Constructed with a liquid crystal polymer housing for enhanced durability. Contacts made of phosphor bronze with gold or tin plating ensure excellent conductivity.
Shrouded design provides polarization and protection against misalignment. Surface mount type is suitable for PCB surface assembly. Operates reliably within a temperature range of -55°C to 125°C. Termination is via soldering to secure the connector firmly on the board.
This product is widely used in industrial electronics, communication equipment, and manufacturing setups requiring dependable PCB connections. Browse more high-quality PCB Headers and electronic components at EnvMart for your project needs.
