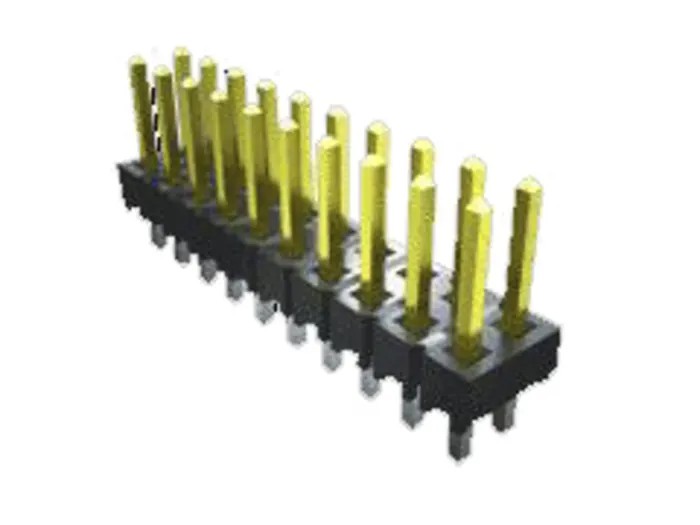

Samtec TSW Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-108-15-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.3A |
| Model | TSW-108-15-L-D |
| Mount Type | Through Hole |
| Special Features | Many options for optimizing cost and performance with platings and ruggedizing features |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 13.21mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Features 16 gold-plated male pins arranged in 2 rows for reliable board-to-board connectivity.
- Pin headers have a pitch of 2.54 mm (0.100 inch), ideal for standard PCB applications.
- Constructed with phosphor bronze contacts and polybutylene terephthalate housing for durability.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Supports a maximum current of 4.3 A and voltage rating of 550 V.
- Designed as straight orientation with through-hole mounting type for secure soldering.
- Unshrouded design allows easy mating with compatible connectors.
- Tail pin length is 2.79 mm and mating pin length is 13.21 mm for optimal contact.
Product Description
Samtec TSW-108-15-L-D is a high-quality Straight Through Hole Pin Header featuring 16 male contacts arranged in 2 rows with a 2.54 mm pitch. Its gold-plated phosphor bronze pins and polybutylene terephthalate housing provide excellent conductivity and durability, ensuring long-lasting connections in electronic assemblies.
This pin header supports a current of up to 4.3 A and operates safely within a temperature range of -55°C to 125°C, with a voltage rating of 550 V. The unshrouded, straight orientation design with through-hole mounting facilitates reliable solder attachment onto printed circuit boards (PCBs).
The tail pin length of 2.79 mm and mating pin length of 13.21 mm afford secure mechanical and electrical contact. Its square post contact system (.025 inch / 0.635 mm) enhances mechanical stability. Multiple plating and ruggedizing options are available, allowing customization to balance cost and performance for diverse industrial applications.
Features 16 gold-plated male contacts arranged in 2 rows with 2.54 mm pitch. Constructed with durable polybutylene terephthalate housing and phosphor bronze contacts. Rated for 4.3 A current and 550 V voltage for reliable electrical performance.
Operates over a wide temperature range from -55°C to 125°C. Designed for through-hole mounting with a straight, unshrouded orientation. Includes tail pin length of 2.79 mm and mating pin length of 13.21 mm. Contact system features square post design for strong mechanical connection.
Offers plating and ruggedizing options to optimize cost-effectiveness. Ideal for demanding industrial electronic board-to-board connector applications.
This pin header belongs to the TSW series by Samtec, known for precision and performance in PCB connector solutions. Industrial users in electronics manufacturing, embedded systems, and control equipment design will find this component essential for high-quality electrical interconnections.
For easy and accurate integration into your project, compatible 3D models, schematics, and footprints are available via DesignSpark software. Browse EnvMart’s Electronics Components category for a wide array of PCB connectors and related products to complement this header.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm (0.100 inch), which is standard for PCB applications.
This model has 16 gold-plated male contacts arranged in 2 rows.
It supports a maximum current of 4.3 A, ensuring reliable electrical performance.
The voltage rating for this pin header is 550 V, suitable for various applications.
The contacts are made of phosphor bronze, while the housing is constructed from polybutylene terephthalate.
It operates reliably within a temperature range of -55°C to 125°C.
This model is designed for through-hole mounting, allowing secure soldering onto printed circuit boards.
The tail pin length is 2.79 mm, and the mating pin length is 13.21 mm for optimal contact.
This pin header has an unshrouded design, allowing for easy mating with compatible connectors.
It includes options for optimizing cost and performance with various platings and ruggedizing features.
The connector system is designed for board-to-board applications, enhancing connectivity between PCBs.
It belongs to the TSW series by Samtec, known for precision and performance in PCB connector solutions.
