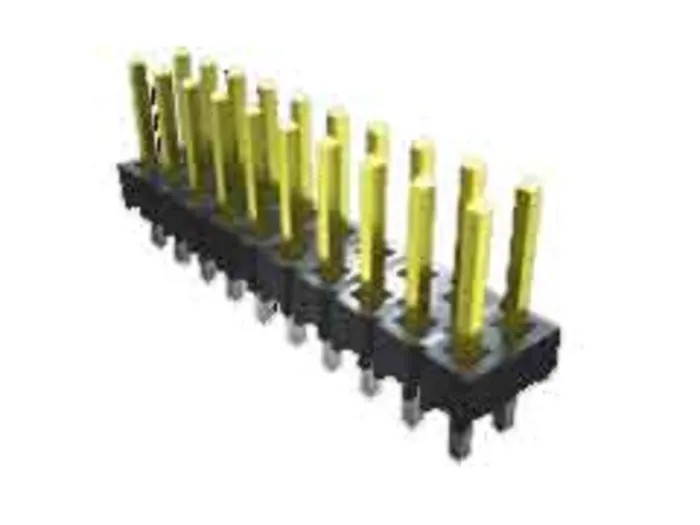

Samtec TSW Series Straight Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-102-07-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.3A |
| Model | TSW-102-07-L-D |
| Mount Type | Through Hole |
| Special Features | Many options for optimizing cost and performance with platings and ruggedizing features |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Features 4 male contacts arranged in 2 rows for efficient PCB interfacing.
- Unshrouded design allows easy soldering and insertion.
- Gold-plated phosphor bronze contacts ensure reliable conductivity.
- Supports a maximum operating voltage of 550V and current of 4.3A.
- Housing made from durable polybutylene terephthalate for thermal stability.
- Designed for through-hole mounting with a tail pin length of 2.54 mm.
- Operates safely between -55°C and 125°C ambient temperatures.
- Suitable for various industrial and electronic assembly applications.
Product Description
Samtec TSW-102-07-L-D is a high-quality Straight Through Hole Pin Header designed for electronic assembly and PCB applications. This connector features 4 contacts arranged in 2 rows with a 2.54 mm pitch, providing reliable board-to-board connection with an unshrouded design for straightforward soldering and insertion.
The contacts are made of phosphor bronze with gold plating, guaranteeing excellent electrical conductivity and corrosion resistance. The polybutylene terephthalate housing offers strong mechanical durability and thermal stability suitable for operating temperatures ranging from -55°C to 125°C.
With a rated current of 4.3A and a maximum voltage rating of 550V, this pin header is suitable for a wide range of industrial, manufacturing, electronic, and laboratory equipment applications. The through-hole mounting type and solder termination ensure a secure and durable connection on printed circuit boards.
The tail pin length of 2.54 mm with mating pin length of 5.84 mm supports compatibility with standard PCB layouts. This product is unshrouded, facilitating flexible integration in customized electronic assembly designs.
Features 4 gold-plated male contacts arranged in 2 rows for efficient circuit connection. Housing material is polybutylene terephthalate, giving robustness and thermal resistance. Designed with a 2.54 mm pitch for compatibility with common PCB standards.
Operating temperature range from -55°C to 125°C for versatile environmental deployment. Suitable for solder termination and through-hole mounting methods. Ideal for industrial, laboratory, electronic manufacturing, and assembly applications.
This pin header provides reliable and durable electrical connections essential for high-performance electronics projects. It meets standard specifications without any special certifications. Browse EnvMart's extensive range of PCB connectors and electronic components for complementary parts.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 550V.
This pin header has a current rating of 4.3A.
The contacts in this pin header are arranged with a pitch of 2.54 mm.
It supports through-hole mounting, making it suitable for secure PCB connections.
The housing is made from polybutylene terephthalate, providing thermal stability.
This pin header operates safely between -55°C and 125°C.
It features 4 male contacts arranged in 2 rows.
The tail pin length is 2.54 mm, compatible with standard PCB layouts.
The contacts are made of phosphor bronze with gold plating for reliable conductivity.
This model is unshrouded, allowing for easier soldering and insertion.
It is suitable for various industrial, manufacturing, electronic, and laboratory equipment applications.
The termination type is solder, designed for through-hole mounting.
