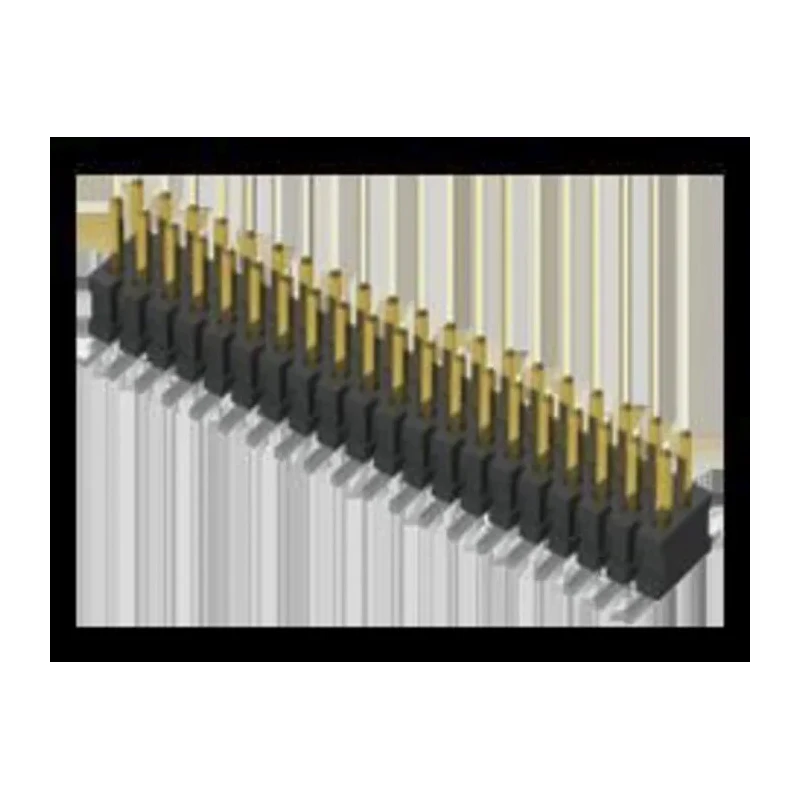

Samtec FTSH Series Straight Surface Pin Header 34 Contacts 1.27 mm Pitch 2 Row Unshrouded FTSH-117-01-L-DV-K

Samtec FTSH-117-01-L-DV-K is a high-quality FTSH Series straight surface pin header designed for demanding electronic applications needing reliable wire-to-board connectivity. With 34 contacts arranged in 2 rows at a 1.27 mm pitch, this unshrouded connector provides a compact footprint ideal for PCB headers requiring high-density connections.

The connector housing is manufactured from durable liquid crystal polymer, ensuring excellent mechanical strength and thermal stability across an operating temperature range from -55°C to 125°C. The contacts themselves are made of phosphor bronze and finished with gold plating, offering superior electrical conductivity and resistance to corrosion.

Rated for 3.4 amps of continuous current, the FTSH-117-01-L-DV-K features a male contact gender with a 0.1 mm tail pin length, facilitating dependable solder connections on surface mount boards. The mating pin length of 3.05 mm ensures proper engagement with compatible connectors, while the unshrouded design allows for easy accessibility during assembly and maintenance.

This micro header connector supports various post heights and configurations, making it suitable for industrial, manufacturing, electronic systems integration, telecommunications equipment, and laboratory instrumentation where dependable PCB interconnections are critical.

Features a straight orientation suitable for wire-to-board connections. Constructed with a housing made of liquid crystal polymer for durability. Contact material is phosphor bronze with gold plating for reliable electrical performance.

Rated for a current of 3.4 A with solder termination type. Operates reliably between temperatures of -55°C to 125°C. Offers a contact gender of male with tail pin length of 0.1 mm and mating pin length of 3.05 mm. Designed as a micro header available in surface mount configurations.

Unshrouded contact style allows easy mating with connectors.

This product is manufactured in China and maintained under New condition status. Explore more high-quality PCB Headers and connectors on EnvMart for enhanced circuit design and assembly efficiency.
