5 Valve Manifolds-Instrumentation Manifolds Orifice Size 157 in. (4.0 mm), 5M-501R

Name: 5 Valve Manifolds-Instrumentation Manifolds Orifice Size 157 in. (4.0 mm), 5M-501R
Brand: Hikelok
SKU: ACASH
Price: 77.44 USD
Availability: InStock



SKU ACASH Category Industrial Valves Brand Hikelok Condition New

Specifications

Applications	Industrial
Working Temperature	PTFE packing from -65 Degree F to 450 Degree F (-54 Degree C to 232 Degree C) Graphite packing from -65 Degree F to 1200 Degree F(-54 Degree C to 649 Degree C)
Maximum Pressure	Stainless steel up to 6000 psig (413 bar) Alloy C-276 up to 6000 psig (413 bar) Alloy 400 up to 5000 psig (345 bar)
Orifice Size	0.157 in. (4.0 mm) CV 0.35

Key Features

Testing for every valve with nitrogen at the maximum working pressure
Upper stem and lower stem design, Stem threads above packing protected from system media

Product Description

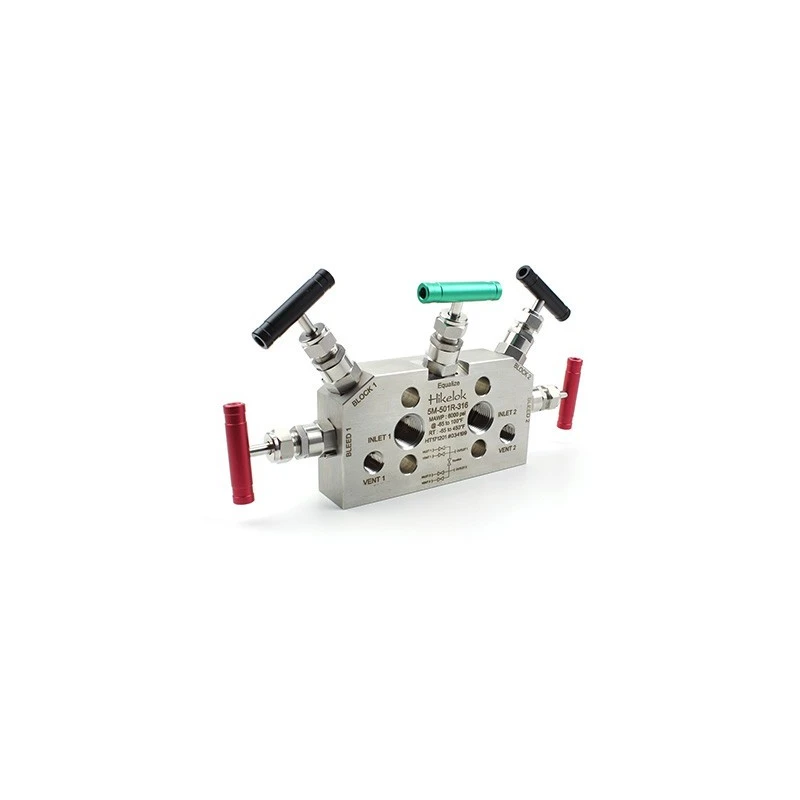

5 Valve Manifolds-Instrumentation Manifolds Orifice Size 157 in. (4.0 mm), 5M-501R are designed for differential pressure applications. 5-valve manifolds consists of high pressure valve, low pressure valve, balance valve and two check (blowdown) valves. 5-valve manifolds is used for all kinds of imported instruments, and it is installed with all kinds of differential pressure, flow, liquid level and other transmissions. When working, close the two groups of checking valves and balance valves. If inspection is needed, just cut off the high pressure and low pressure valves, open the balance valve and two check valves, and then close the balance valve to calibrate and balance the transmitter.

Safety back seating seals in fully open position

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The orifice size of this manifold is 0.157 in. (4.0 mm) with a flow coefficient (CV) of 0.35.

The manifold features PTFE packing suitable for temperatures from -65°F to 450°F (-54°C to 232°C) and graphite packing for temperatures from -65°F to 1200°F (-54°C to 649°C).

This manifold is designed for industrial applications, particularly for differential pressure measurements and instrument connections.

To calibrate and balance the transmitter, the high pressure and low pressure valves are closed, the balance valve and two check valves are opened, and then the balance valve is closed.

The 5-valve manifold includes a high pressure valve, a low pressure valve, a balance valve, and two check (blowdown) valves.

The working temperature range for PTFE packing is from -65°F to 450°F (-54°C to 232°C).

The working temperature range for graphite packing is from -65°F to 1200°F (-54°C to 649°C).

The stem threads are designed to be above the packing, providing protection from system media when in the fully open position.

This manifold is compatible with all kinds of imported instruments and is installed for differential pressure, flow, liquid level, and other transmissions.

The manifold includes safety back seating seals that ensure protection when the valve is in the fully open position.

The balance valve allows for the calibration and balancing of the transmitter by controlling the flow during inspection procedures.
