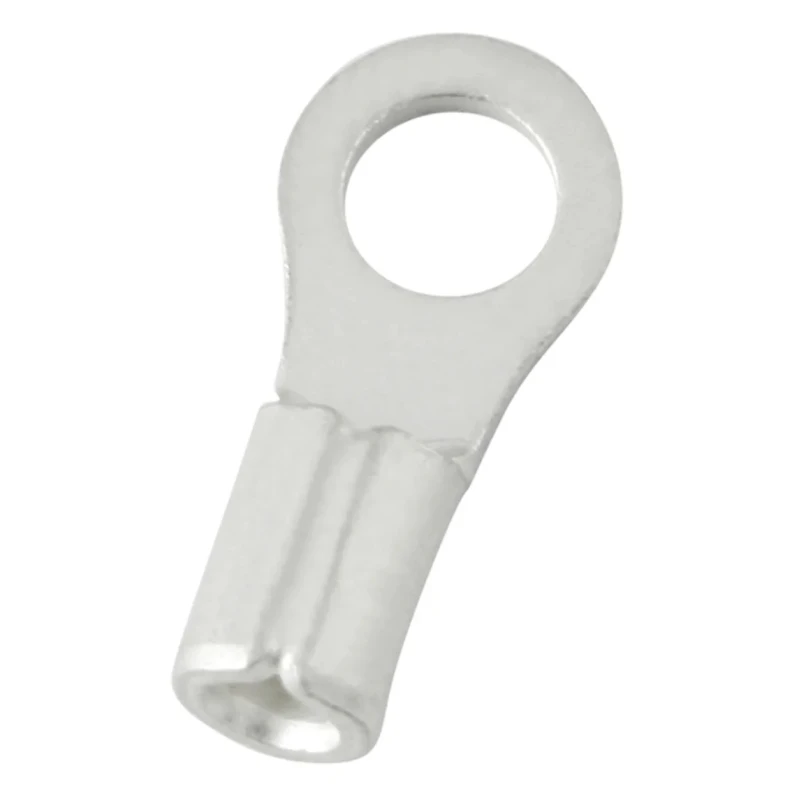

RS PRO Uninsulated Ring Terminal 3.7 mm Stud Size 22 AWG to 16 AWG Wire Size, Copper Tin Plated Contact, Grey 178-8592

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Uninsulated Ring Terminal 3.7 mm Stud Size 22 AWG to 16 AWG Wire Size, Copper Tin Plated Contact, Grey 178-8592

Name: RS PRO Uninsulated Ring Terminal 3.7 mm Stud Size 22 AWG to 16 AWG Wire Size, Copper Tin Plated Contact, Grey 178-8592
Brand: RS PRO
SKU: 98430
Price: 0.08 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Grey
THICKNESS	0.75mm
Model	178-8592
Insulation	Uninsulated
Overall Length	14.4mm
Contact Material	Copper
Series	E245391
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	6.6mm
Inner Ring Diameter	3.7mm
Stud Size	3.7 mm

Key Features

This ring terminal is uninsulated for direct electrical connection.
It supports wire sizes ranging from 22 AWG to 16 AWG.
Features a stud size of 3.7 mm compatible with various electrical applications.
Constructed from copper with tin plating to ensure reliable conductivity and corrosion resistance.
Has an outer ring diameter of 6.6 mm and an overall length of 14.4 mm.
The terminal thickness is 0.75 mm, suitable for secure crimps.
Designed to operate safely within -40°C to 150°C temperature range.
The terminal color is grey for easy identification in electrical setups.

Product Description

RS PRO E245391 Uninsulated Ring Terminal provides reliable electrical connections for wire sizes 22 AWG to 16 AWG with a stud size of 3.7 mm. It is crafted from high-quality copper contact material, plated with tin to enhance durability and corrosion resistance. Its uninsulated design allows for direct electrical conduction in industrial, automotive, and electronic applications.

This ring terminal features an outer ring diameter of 6.6 mm, an inner ring diameter of 3.7 mm, and an overall length of 14.4 mm, making it suitable for tight and secure connections in compact spaces. The thickness of 0.75 mm ensures robustness during crimping and installation.

Engineered to perform across a broad temperature range (-40°C to 150°C), this terminal is ideal for use in harsh environments and various industrial conditions. Its grey color coding assists technicians in identifying wire types and sizes easily.

This Ring Terminal is uninsulated for direct electrical connection. Supports 22 AWG to 16 AWG wire sizes providing flexible application options. 3.7 mm stud size for compatibility with standard hardware. Copper contact with tin plating ensures excellent conductivity and resistance to corrosion.

Outer ring diameter measures 6.6 mm with an overall length of 14.4 mm for compact fitting. Terminal thickness of 0.75 mm supports secure crimps. Rated for operating temperatures from -40°C up to 150°C for reliability in extreme conditions.

Grey color for clear identification in wiring installations. Designed and produced by RS PRO, ensuring premium quality standards.

Suitable for industrial, automotive, electronic repair, and manufacturing applications where dependable and durable wire connections are critical. Its robust construction and craftsmanship guarantee long-term performance and safety in electrical circuits.
