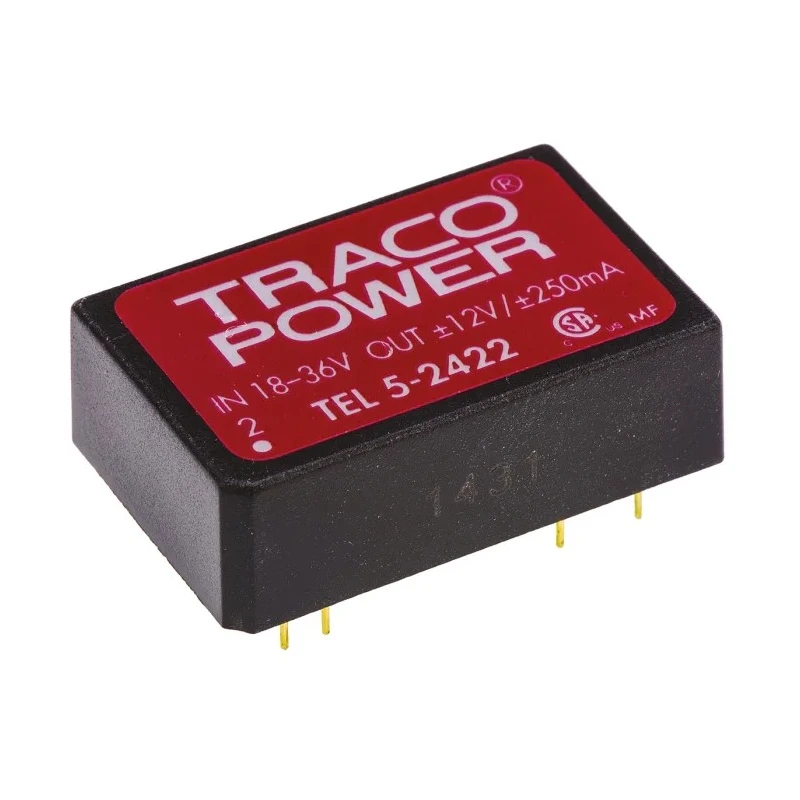

TRACOPOWER Dual Output Regulated Isolated DC/DC Converter 12V dc/ 250 mA, -12V dc, 36V dc Input, 18V Input, 5W TEL 5-2422

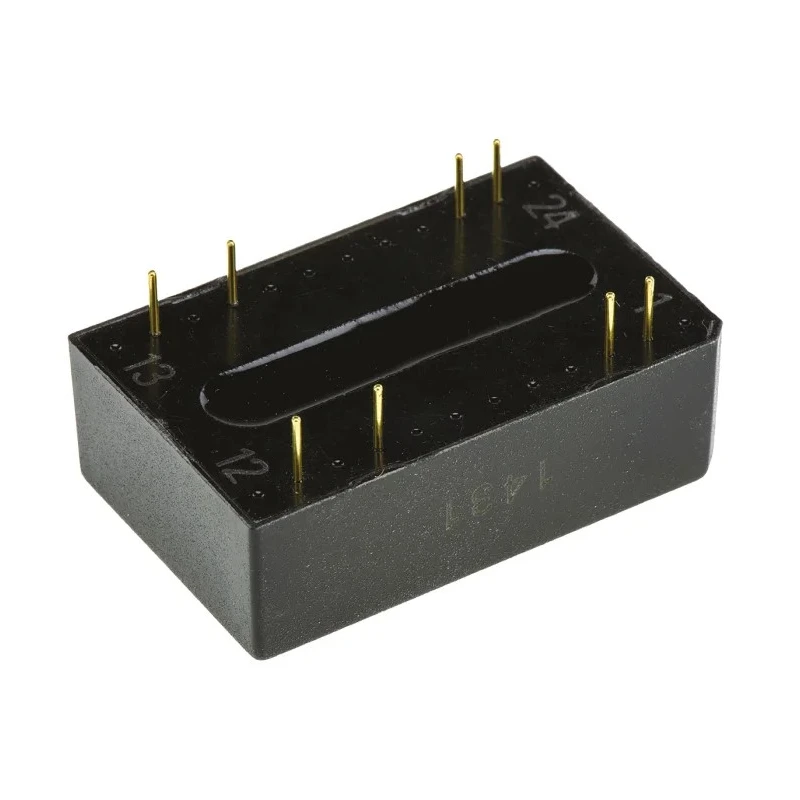

TRACOPOWER TEL 5-2422 is a high-performance dual output regulated isolated DC/DC converter designed for industrial electronic applications requiring reliable and efficient DC voltage conversion. It delivers dual output voltages of +12V dc at 250 mA and -12V dc, with a maximum input voltage of 36V dc and a minimum of 18V dc, enabling compatibility with a broad range of DC input sources. The device is surface mounted on a standard 24-pin DIP PCB footprint that simplifies installation in customized power supply boards.

This converter series offers a wide 2:1 input voltage ratio and 1.5kV DC input/output isolation, ensuring robust isolation against voltage spikes and electrical noise. The efficiency rating of 86% ensures minimal power loss, contributing to energy savings and reducing thermal stress. Continuous short circuit protection safeguards the converter and connected equipment during fault conditions, enhancing operational security.

Operating temperature ranges from -40 °C to a maximum of 85 °C with temperature derating above 70 °C at 2% per °C, allowing reliable performance in harsh and varying industrial environments. The converter complies with EN 60950-1 and UL60950-1 safety standards, adding confidence for industrial and commercial use.

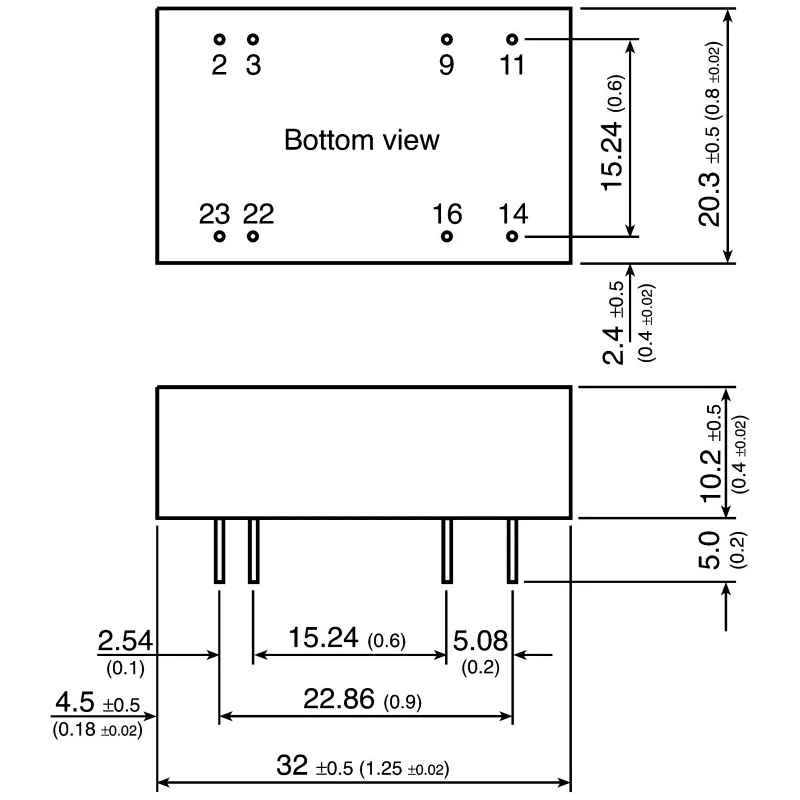

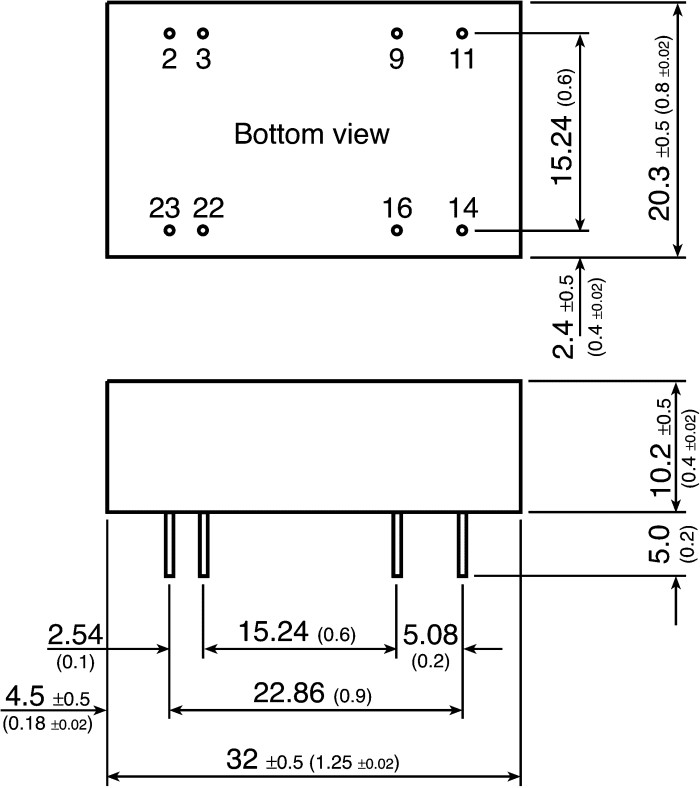

Physical dimensions are compact at 32 mm length and 10.2 mm depth, making it suitable for space-constrained applications. With a mean time before failure (MTBF) of 1,000,000 hours, the TEL 5-2422 model guarantees long-term reliability essential for continuous operation.

Typical industrial and laboratory uses include isolated power supply applications in manufacturing equipment, automated control systems, and instrumentation requiring stable dual voltage rails.

The converter supports a 2:1 wide input voltage ratio suitable for varied DC sources. Features 1.5kV DC isolation for safety and noise immunity. High efficiency of 86% reduces heat dissipation and energy consumption. Continuous short circuit protection improves device longevity.

Wide operating temperature range from -40°C to 85°C with thermal derating. Compact PCB mountable surface mount package allows easy integration. Mean Time Before Failure (MTBF) of 1,000,000 hours ensures reliability. Compliance with safety standards EN 60950-1 and UL60950-1.

Input filtering to EN 55022A reduces electromagnetic interference. Ideal for industrial, laboratory, and manufacturing power supply systems. Explore the comprehensive range of DC-DC Converters on EnvMart for reliable power solutions tailored to your industrial and electronic component needs.
