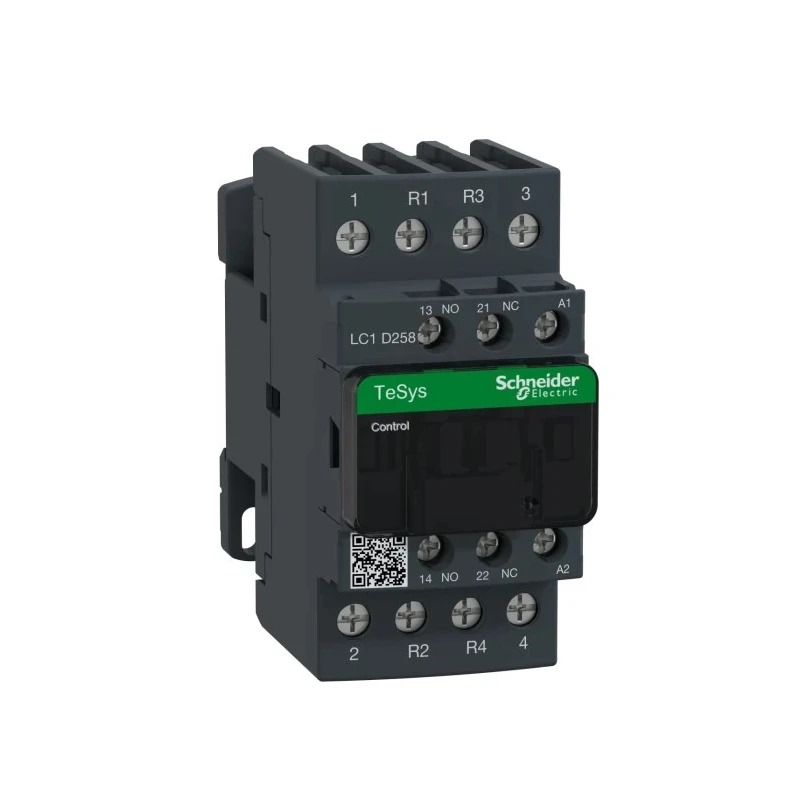

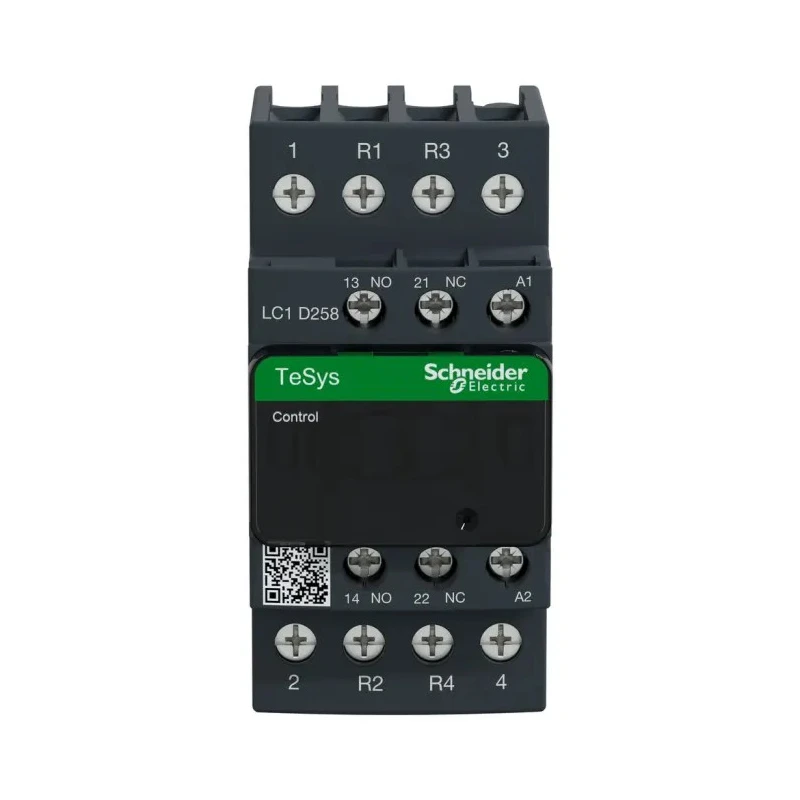

Schneider Electric Motor Control Contactor 230V AC Coil 40A 4-Pole 2 NO/2 NC 690V AC LC1D
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 105mm |
| Model | LC1D |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.5W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a 230V AC coil and rated for 40A resistive load at 690V AC contact voltage.
- Comprises 4 poles for versatile motor control and resistive load functions.
- Includes 2 normally open (NO) and 2 normally closed (NC) contacts for operational flexibility.
- Features 1 NO and 1 NC built-in auxiliary contact with screw clamp terminals for secure connections.
- Compact DIN rail mounting design with dimensions 105mm height × 45mm width × 97mm depth.
- Operates reliably within a temperature range from -40°C to 60°C in industrial environments.
- Certified to UL, IEC, CSA, CCC, EAC, and RoHS standards ensuring quality and environmental compliance.
- Suitable for industrial automation, energy generation, and food and beverage sector applications.
Product Description
Schneider Electric LC1D258P7 is a high-performance motor control contactor with a 230V AC coil designed for controlling resistive loads in industrial settings. This 4-pole contactor features a contact current rating of 40A and contact voltage up to 690V AC, offering reliable switching and motor control capabilities.
The device includes 2 normally open (NO) and 2 normally closed (NC) contacts, with an additional built-in auxiliary contact configured as 1 NO and 1 NC. Connection is achieved through screw clamp terminals, ensuring robust and easy installation.
Its compact DIN rail mounting footprint (105mm x 45mm x 97mm) and light weight (0.425 kg) facilitate efficient use of panel space and minimize mechanical load on mounting structures. It operates safely in environments from -40°C to 60°C, suitable for harsh industrial conditions.
This contactor is certified to multiple international standards, including UL, IEC, CSA, CCC, EAC, and meets RoHS requirements as a Green Premium product, ensuring environmentally responsible manufacturing and usage.
The LC1D258P7 is an excellent choice for applications in industrial automation, energy generation, and food and beverage industries, where reliable motor control is critical. It supports an operating rate of up to 3600 cycles per hour, delivering a balance of performance and longevity.
Equipped with a 230V AC coil and rated for 40A resistive load at 690V AC contact voltage. Comprises 4 poles for versatile motor control and resistive load functions. Includes 2 normally open (NO) and 2 normally closed (NC) contacts for operational flexibility.
Features 1 NO and 1 NC built-in auxiliary contact with screw clamp terminals for secure connections. Compact DIN rail mounting design with dimensions 105mm height × 45mm width × 97mm depth. Operates reliably within a temperature range from -40°C to 60°C in industrial environments.
Certified to UL, IEC, CSA, CCC, EAC, and RoHS standards ensuring quality and environmental compliance. Suitable for industrial automation, energy generation, and food and beverage sector applications. Lightweight unit weighing approximately 0.425 kg for easy installation and reduced structural stress.
Designed for high durability with operating rates up to 3600 cycles per hour. Explore the full range of Schneider Electric Contactors and electrical automation components at EnvMart to find solutions tailored to your industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 40A, suitable for resistive loads.
The coil voltage for this model is 230V AC.
It can handle a maximum contact voltage of 690V AC.
This contactor has 4 poles, providing versatile motor control capabilities.
It operates reliably within a temperature range from -40°C to 60°C.
It is designed for DIN rail mounting, facilitating easy installation.
The dimensions are 105mm in height, 45mm in width, and 97mm in depth.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This model is certified to UL, IEC, CSA, CCC, EAC, and RoHS standards.
The power rating is 2.5W.
It weighs approximately 0.425 kg, making it lightweight for installation.
This contactor is suitable for industrial automation, energy generation, and food and beverage sector applications.
