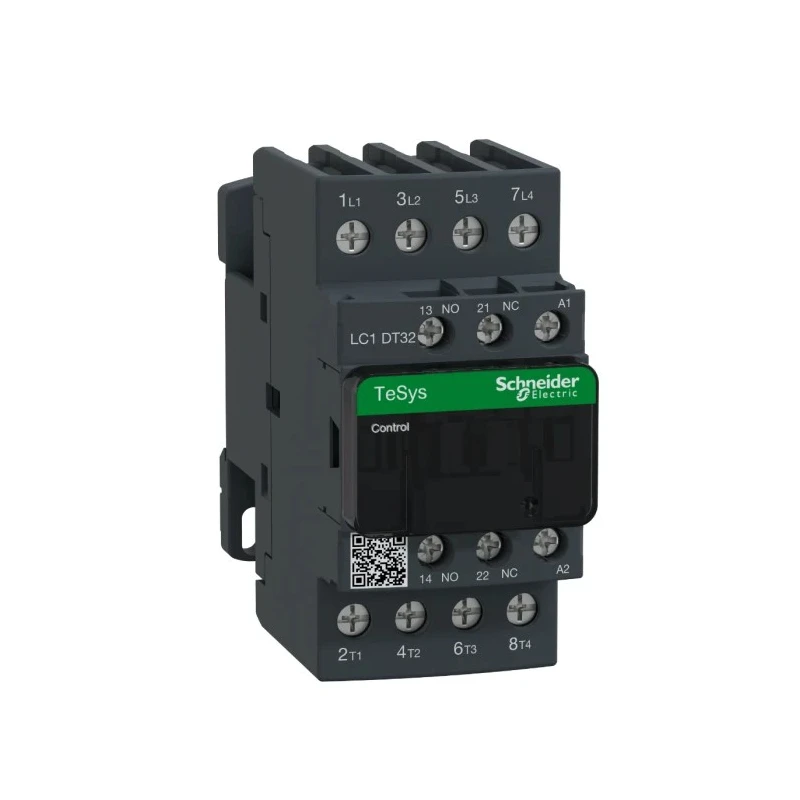

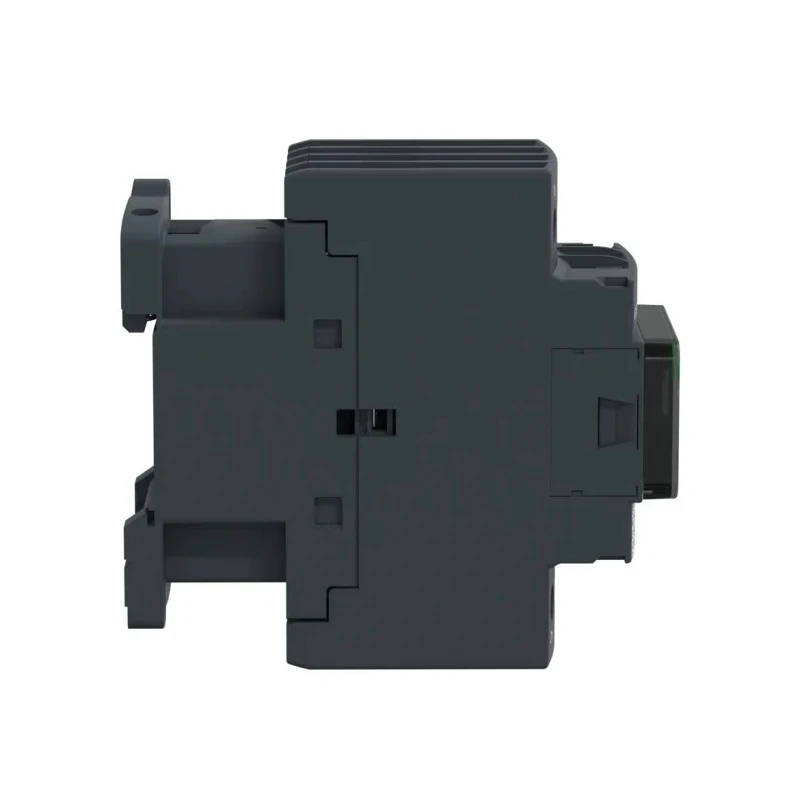

Schneider Electric TeSyS D 4-Pole 32A Contactor, 24V AC Coil, 4 NO Contacts, 690V AC LC1DT32B7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT32B7 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, UL, RoHS, IEC, EAC, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V AC coil and operates at a contact voltage of 690V AC.
- Features four main poles with normally open (NO) contacts and two auxiliary contacts (1 NO and 1 NC configuration).
- Mountable on DIN rail with compact dimensions of 91mm (H) x 45mm (W) x 97mm (D) for space-efficient installation.
- Designed for reliable operation in temperatures ranging from -5°C to 60°C.
- Screw clamp terminals ensure secure and vibration-proof wiring connections.
- Certified to international standards including IEC, UL, CSA, CCC, EAC, and RoHS compliant as a Green Premium product.
- Suitable for industrial automation, motor starters, and other resistive load applications.
- Achieves operating rates of up to 3600 cycles per hour for high switching demands.
Product Description
Schneider Electric LC1DT32B7 is a 4-pole TeSyS D contactor rated at 32A with a coil voltage of 24V AC. It is engineered for motor control and resistive load applications with reliable performance up to 690V AC contact voltage.
The contactor features four normally open main contacts along with two built-in auxiliary contacts configured as one normally open and one normally closed, the latter being mirror certified for enhanced safety. It is designed for high reliability with operation capability up to 3600 cycles per hour and supports ambient temperatures from -5°C to 60°C.
With a compact profile measuring 91mm in height, 45mm in width, and 97mm in depth, this device is suitable for installation in tight, crowded industrial control panels. Its DIN rail mount and screw clamp terminals provide secure mounting and wiring safety. The device is certified to multiple international standards including IEC, UL, CSA, CCC, and EAC, and complies with RoHS/REACh as a Green Premium product supporting sustainability goals.
Applications include motor starters in industrial automation systems, manufacturing, and automotive production environments where reliable switching of resistive loads is essential. The contactor’s robust design and certifications make it appropriate for a wide variety of demanding electrical control tasks.
Equipped with 24V AC coil voltage ensuring compatibility with common control circuits. Supports 32A contact current and 690V AC contact voltage for robust load handling. DIN rail mountable and compact for easy integration into motor control panels.
Operational temperature range from -5°C to +60°C suitable for harsh industrial environments. One NO and one NC auxiliary contact built-in for flexible circuit design and signaling. Covers motor control and resistive load switching with high mechanical and electrical endurance.
Screw clamp terminals for secure, vibration-resistant connections. Meets global safety and environmental standards: IEC, UL, CSA, CCC, EAC, and RoHS compliant.
Explore Schneider Electric Contactors and TeSyS D series products for efficient motor control solutions. Find related automation and control gear at EnvMart to support your industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this contactor is 690V AC.
The coil voltage for this model is 24V AC.
This contactor features four poles with normally open (NO) contacts.
The dimensions of this contactor are 91mm in height, 45mm in width, and 97mm in depth.
The operational current rating of this unit is 32A.
This contactor operates within a temperature range of -5°C to 60°C.
It is designed for DIN rail mounting, facilitating easy installation in control panels.
The contactor is certified to multiple international standards, including IEC, UL, CSA, CCC, and EAC, and is RoHS compliant.
This model can achieve operating rates of up to 3600 cycles per hour.
It features screw clamp terminals that provide secure and vibration-proof wiring connections.
This contactor is suitable for motor control and resistive load applications in industrial automation.
This model includes two auxiliary contacts, configured as one normally open and one normally closed.
