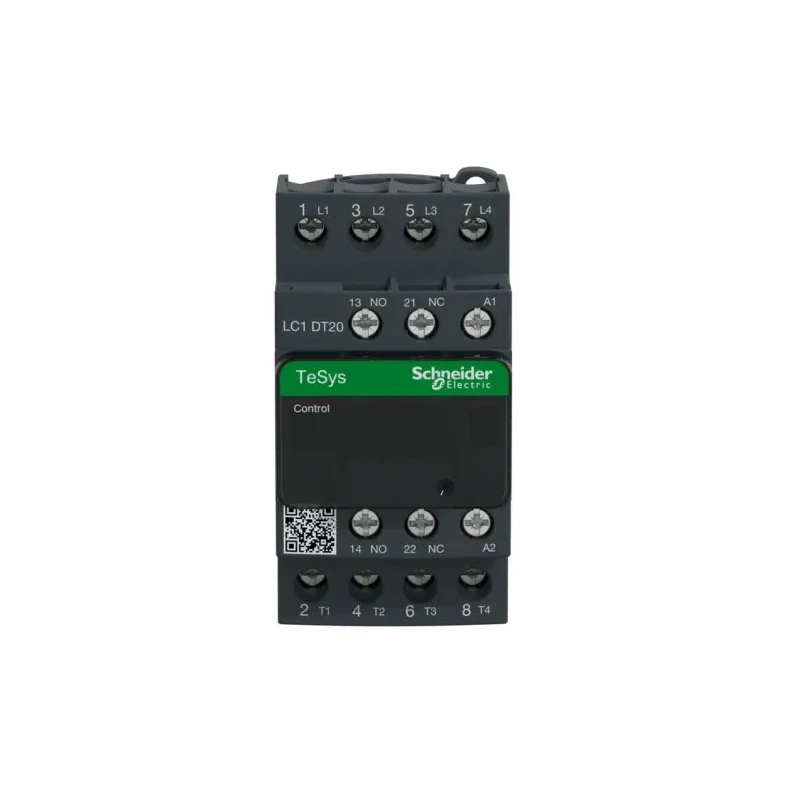

Schneider Electric TeSyS D Contactor 4-Pole 20A 690V AC, 110V AC Coil LC1DT20F7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT20F7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Features compact dimensions of 85mm length, 45mm width, and 90mm depth for space efficiency.
- Includes 1 normally open and 1 normally closed auxiliary contact for versatile control.
- Suitable for harsh industrial environments with operating temperature range -5°C to 60°C.
- Mountable on DIN rail or by screw fixing, ensuring flexible installation.
- Constructed with flame-retardant material for enhanced safety.
- Certified by IEC, UL, CSA, CCC, EAC, and meets RoHS and REACh standards.
- Mechanical life rated for 15 million cycles ensuring durability.
- Lightweight design weighing approximately 0.365 kg.
Product Description
Schneider Electric LC1DT20F7 TeSyS D Contactor is a high-performance 4-pole contactor designed for motor control and resistive load applications requiring up to 20A/440V AC-1.
It features a 110V 50/60Hz AC coil and integrates 1 normally open plus 1 normally closed auxiliary contacts, with the NC contact being mirror certified, facilitating enhanced control functions.
This contactor is engineered for industrial, manufacturing, agricultural, and commercial use, providing reliable switching in environments with temperatures ranging from -5°C to 60°C.
The compact build measures 85mm in length, 45mm in width, and 90mm in depth, allowing easy DIN rail mounting or screw fixing installation in space-constrained panels. Its power contacts are rated at 20A for resistive load and support up to 3600 operation cycles per hour, ensuring high durability with a mechanical life of 15 million cycles.
Constructed using flame-retardant materials, it offers enhanced safety for industrial applications and complies with international certifications including IEC, UL, CSA, CCC, EAC, and environmental standards RoHS and REACh.
Compact dimensions enable efficient space utilization. Reliable auxiliary contact configuration extends functionality. Wide operating temperature range supports diverse industrial conditions. Flexible mounting options suit various installation environments.
Certified for global standards ensuring quality and safety compliance. Lightweight design facilitates easy handling and installation. Durable for high-cycle industrial operations.
This contactor is part of Schneider Electric's TeSyS D series, designed to support sustainable and efficient industrial processes. It is ideal for applications in automation systems, process control, manufacturing equipment, and agricultural machinery where dependable switching and motor control are critical.
Explore more Schneider Electric products and similar Contactors in the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT20F7 contactor has a power rating of 1.56W.
This model operates within a temperature range of -5°C to 60°C.
The contactor features 4 poles.
It includes 1 normally open and 1 normally closed auxiliary contact.
The maximum contact voltage for this unit is 690V AC.
The dimensions are 85mm in length, 45mm in width, and 90mm in depth.
The mechanical life of this contactor is rated for 15 million cycles.
It can be mounted on a DIN rail or by screw fixing, providing flexible installation options.
This model is certified by IEC, UL, CSA, CCC, EAC, and meets RoHS and REACh standards.
It is designed for motor control and resistive load applications.
The contactor weighs approximately 0.365 kg.
The coil voltage for this contactor is 110V AC.
