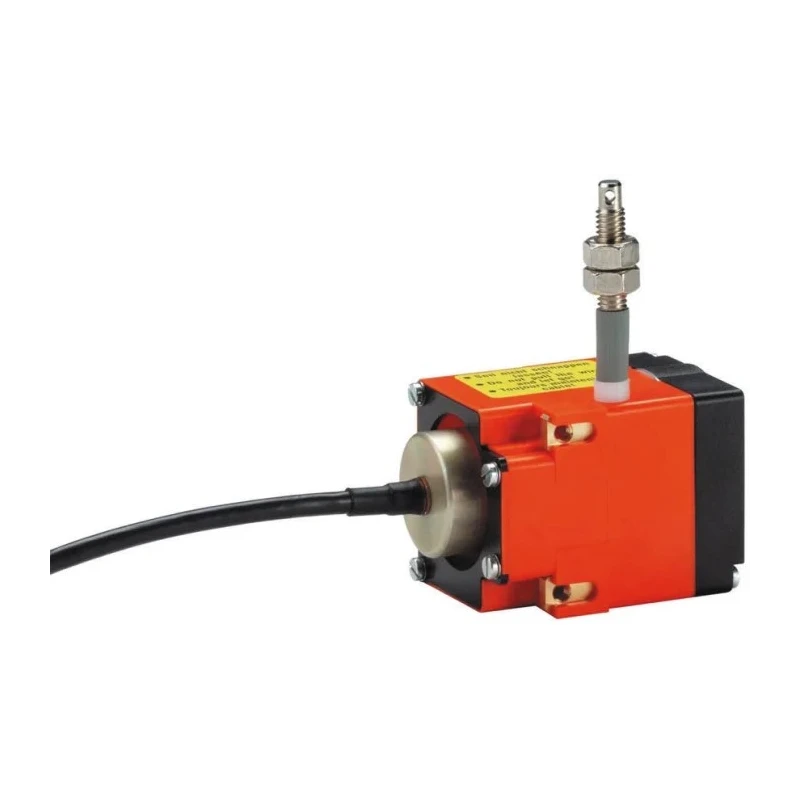

Kubler A40 Series Linear Measuring Encoder 24V Reinforced Plastic Housing IP54 D5.2102.2441.1000
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Kubler |
| Dimensions | 74 x 40 x 40 mm |
| Model | D5.2102.2441.1000 |
| IP Rating | IP54 |
| Housing Material | Reinforced Plastic |
| Series | A40 |
| Overall Width | 55mm |
| Maximum Operating Temperature | 85°C |
| Overall height | 40mm |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 24V |
| Overall Depth | 40mm |
| Kubler A40 Series Linear Measuring Encoder 24VBrand | Kubler |
Key Features
- Miniature cable pull sensor suitable for length and distance measurement.
- Incremental encoder providing 1000 pulses per revolution.
- Temperature and ageing compensated for reliable performance.
- Short-circuit proof outputs with reverse polarity protection at input voltage.
- Measured length capability up to 2000 mm with robust steel cable.
- Compliant with RoHS and CE standards including EN50082-2, EN50081-2, and EN55011 Class B.
- Operating temperature up to 85°C for harsh environments.
- Compact dimensions with overall size 74 x 40 x 40 mm.
Product Description
Kubler D5.2102.2441.1000 A40 Series Linear Measuring Encoder 24V features a reinforced plastic housing with IP54 ingress protection, designed for precise linear position measurement in industrial, automation, and mechanical machinery applications.
This miniature incremental cable pull sensor delivers 1000 pulses per revolution, ensuring high precision and repeatability. It incorporates temperature and ageing compensation to maintain accuracy under varying operational conditions.
The encoder includes short-circuit proof outputs and reverse polarity protection at the operating voltage input, enhancing reliability and safety during installation and operation. It supports a maximum measured length of 2000 mm and comes with a robust steel cable for durability in machine and plant construction environments.
Certified to RoHS and CE standards including EN50082-2, EN50081-2, and EN55011 Class B, this sensor meets rigorous industry compliance requirements. It operates reliably within a temperature range up to 85°C, suitable for demanding industrial settings.
Miniature cable pull sensor for length or distance measurement applications. Incremental output with 1000 pulses per revolution. Temperature and ageing compensated for long-term accuracy. Short-circuit and reverse polarity protection for safety.
Measured length up to 2000 mm using a steel cable. Reinforced plastic housing with IP54 protection rating. Compact overall dimensions: 74 x 40 x 40 mm. Compliant with RoHS and CE standards for electromagnetic compatibility.
This Kubler linear measuring encoder is ideal for industrial automation, machine building, and mechanical engineering applications requiring precise linear measurement. Browse additional Kubler products and Motion Control Sensors on EnvMart for complementary industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder supports a maximum measured length of 2000 mm using a robust steel cable.
This model provides 1000 pulses per revolution, ensuring high precision and repeatability in measurements.
It has an IP54 ingress protection rating, making it suitable for use in environments where dust and water exposure may occur.
The overall dimensions of this unit are 74 x 40 x 40 mm.
The encoder can operate reliably at temperatures up to 85°C, suitable for harsh industrial environments.
The housing is made of reinforced plastic, providing durability and protection for the internal components.
It includes short-circuit proof outputs and reverse polarity protection at the input voltage, enhancing safety during operation.
It is compliant with RoHS and CE standards, including EN50082-2, EN50081-2, and EN55011 Class B.
This miniature cable pull sensor is ideal for length and distance measurement in industrial automation, machine building, and mechanical engineering applications.
The maximum supply voltage for this model is 24V.
Yes, it incorporates temperature and ageing compensation to maintain accuracy under varying operational conditions.
The weight is not specified in the provided data; please check with the manufacturer for this detail.
