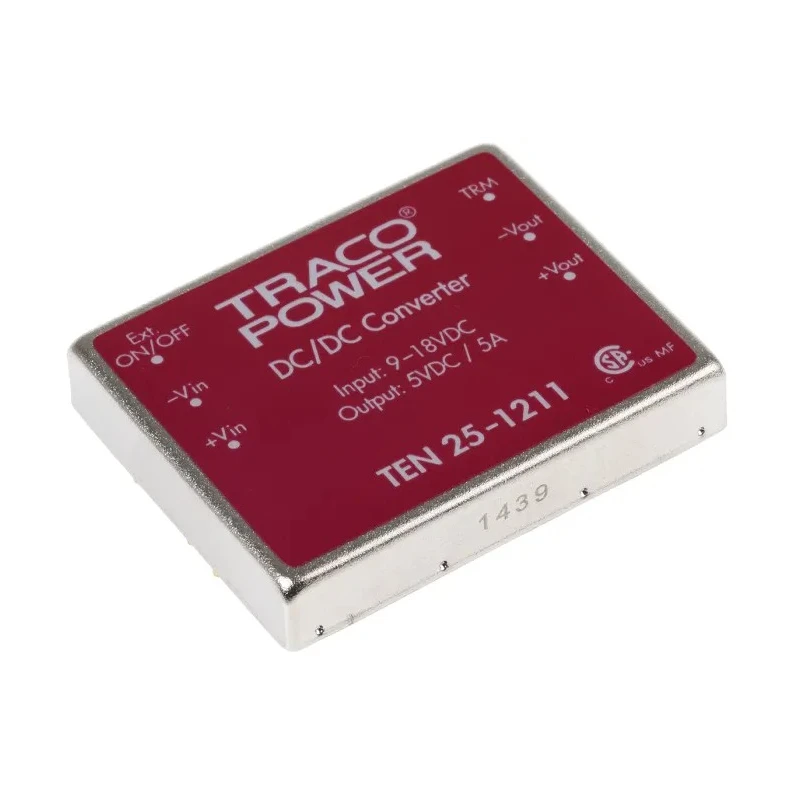

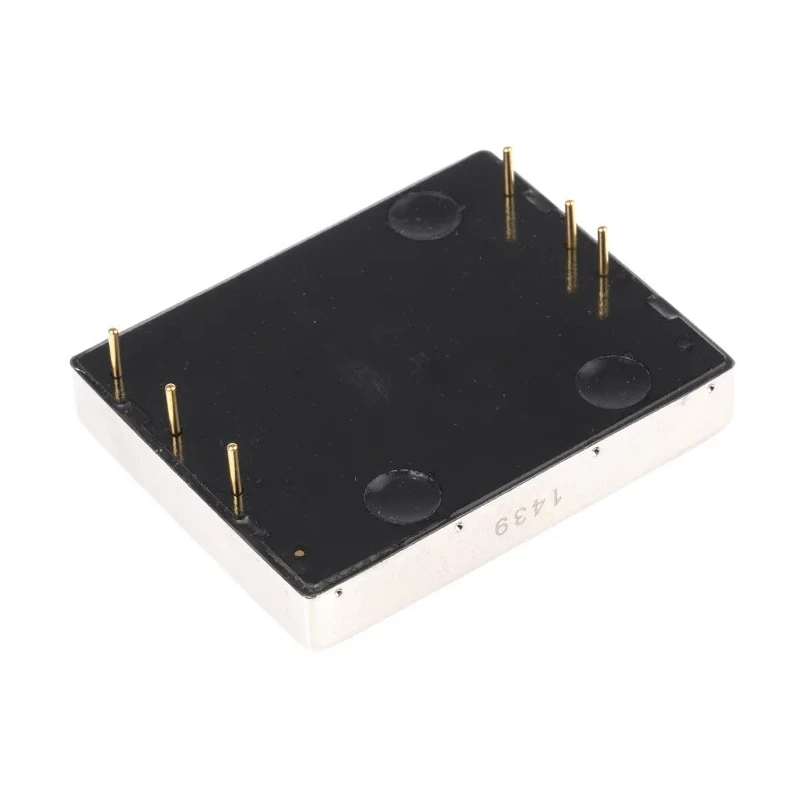

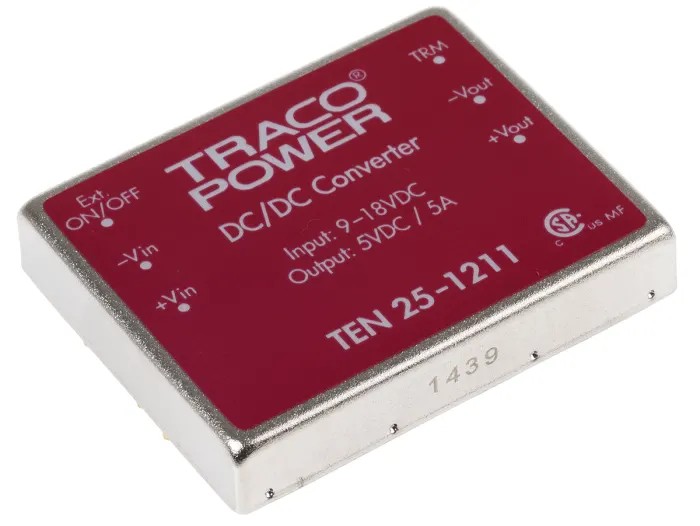

TRACOPOWER 25W Regulated Isolated DC/DC Converter, 5V DC Output, 5A, 9-18V DC Input, Shielded Metal Case, 7-Pin TEN 25-1211
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 25 DC/DC Converter, 5V dc/ 5 A, 18V |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 40.6mm |
| Model | TEN 25-1211 |
| Depth | 9.5mm |
| Width | 50.8mm |
| Mount Type | PCB |
| Series | TEN 25 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 550000h |
| Number of outputs | 1 |
| Maximum Output Power | 25W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 5A |
| Output Voltage Adjustment Range | 4.5/5.5 V dc |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input range |
Key Features
- Maximum operating temperature of 85°C and minimum -40°C enable reliable performance in harsh environments.
- High efficiency of 84% reduces heat generation and power loss.
- Continuous short circuit protection ensures safe operation during faults.
- Input filtering meets EN 55022 Class A and FCC Level A standards without external components.
- Remote on/off control functionality adds operational flexibility.
- Shielded metal case with insulated baseplate enhances electromagnetic compatibility.
- MTBF of 550,000 hours indicates high reliability and durability.
- Industry-standard pinout simplifies integration into existing designs.
Product Description
TRACOPOWER TEN 25-1211 DC/DC Converter is a high-quality regulated, isolated power module designed to deliver a stable 5V DC output at 5A from an input voltage range of 9V to 18V DC. Its shielded metal case with insulated baseplate provides effective electromagnetic interference shielding and robust mechanical protection. The device is optimized for PCB mounting with a 7-pin connector standard in industrial power supplies.
The converter features a wide 2:1 input voltage ratio to accommodate variable DC power sources and includes continuous short circuit protection to safeguard against faults. It complies with EN 55022 Class A and FCC Level A filtering standards without requiring additional external components, ensuring clean power delivery for sensitive electronics.
Operating reliably in temperature ranges from -40°C to 85°C, this module is well suited for industrial electronics, battery-powered devices, and distributed power systems requiring high power density and efficiency. With a typical efficiency rating of 84% and an MTBF of 550,000 hours, the converter ensures dependable long-term operation.
Wide 2:1 input voltage range from 9V to 18V DC. Maximum output power of 25W at 5V and 5A output current. Shielded metal case with insulated baseplate for EMI protection. Continuous short circuit protection for safety. Input filtered to meet EN 55022 Class A and FCC Level A standards.
Remote on/off capability offers operational control. Industry-standard 7-pin PCB mounting configuration. Operating temperature from -40°C to 85°C for harsh environments. High reliability with 550,000 hours MTBF. Applications include industrial electronics, battery equipment, and distributed power systems.
The TRACOPOWER TEN 25-1211 is manufactured in Taiwan, Province of China, ensuring quality and stringent production standards. This product is recommended for engineers and system designers looking for a compact, efficient, and reliable DC/DC switching converter module for electronic and industrial applications.
Explore the comprehensive TRACOPOWER DC-DC Converter range and other power supply solutions at EnvMart for optimized power management in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TRACOPOWER TEN 25-1211 DC/DC converter is from 9V to 18V DC.
This model provides a maximum output power of 25W at 5V and 5A output current.
The dimensions of this unit are 40.6mm in length, 50.8mm in width, and 9.5mm in depth.
The TRACOPOWER TEN 25-1211 has a typical efficiency rating of 84%.
This converter is optimized for PCB mounting and features a 7-pin connector.
The operating temperature range for the TRACOPOWER TEN 25-1211 is from -40°C to 85°C.
Yes, the TRACOPOWER TEN 25-1211 includes continuous short circuit protection to ensure safe operation during faults.
This model meets EN 55022 Class A and FCC Level A filtering standards without requiring external components.
The isolation voltage for the TRACOPOWER TEN 25-1211 is 1.5kV DC.
The MTBF for this model is 550,000 hours, indicating high reliability.
This converter is suitable for industrial electronics, battery-powered devices, and distributed power systems.
The output voltage adjustment range for the TRACOPOWER TEN 25-1211 is between 4.5V and 5.5V DC.
