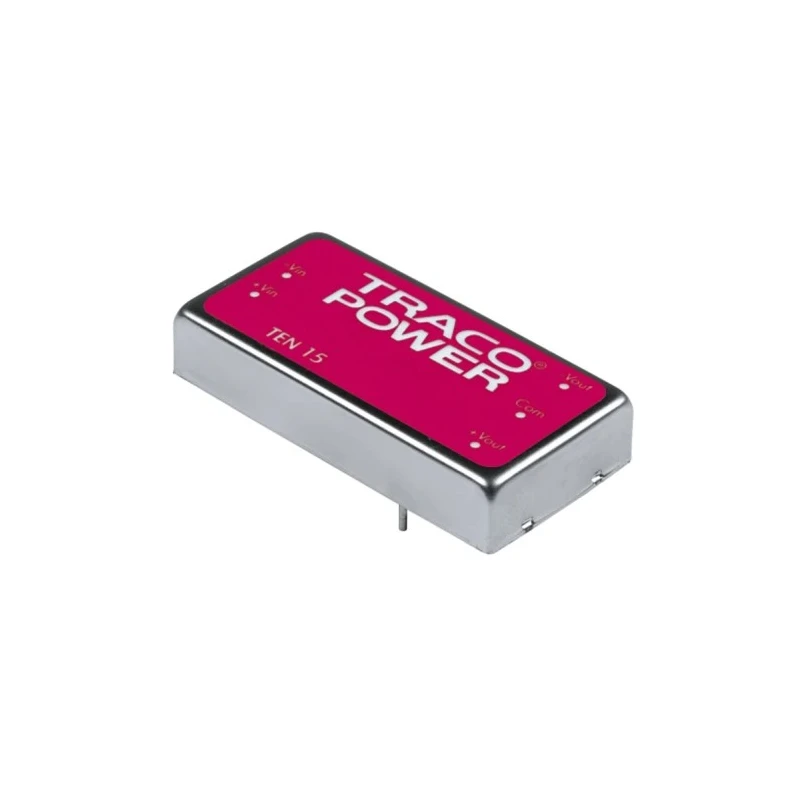

TRACOPOWER DC/DC Converter, 12V DC, 625 mA, 75V DC Max Input, 36V Min Input, 15W Power, PCB Mount, Shielded TEN 15-4822
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 15 DC/DC Converter, 12V dc/ 625 mA |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 50.8mm |
| Model | TEN 15-4822 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | TEN 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case with Insulated Baseplate |
| Minimum Operating Temperature | -40°C |
| MTBF | 2300000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 625mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -12V dc |
| Wide 2 | 1 input voltage range |
Key Features
- Supports wide input voltage range from 36V to 75V DC.
- Features dual output voltages of ±12V DC with precise regulation within -1 to 1%.
- Built-in isolation voltage of 1.5kV DC ensures safety and noise reduction.
- Equipped with shielded metal case and insulated baseplate for enhanced durability and thermal management.
- Compact PCB mount design with 5 pins for easy integration.
- Operating temperature range from -40°C to 85°C supports harsh environments.
- High power density and efficiency up to 88% maximize energy utilization.
- Continuous short circuit protection safeguards device and connected circuits.
Product Description
TRACOPOWER TEN 15-4822 is a high-performance 15W output regulated isolated DC-DC converter designed for a wide range of industrial and communication system applications. It provides a dual output of 12V DC at 625 mA with excellent voltage regulation and isolation.
The converter supports a broad input voltage range from 36V DC minimum to 75V DC maximum, ensuring compatibility with various power sources. Its shielded metal case with an insulated baseplate improves the thermal dissipation and protects internal components.
Featuring high efficiency of up to 88%, the TEN 15 series maximizes power conversion with minimal losses. Its SMD internal construction and use of ceramic chip capacitors contribute to excellent reliability and long service life, supported by a mean time between failures (MTBF) of 2,300,000 hours.
This model includes continuous short circuit protection, preventing damage under fault conditions. It maintains a stable output voltage with an adjustable range of ±1%. The isolation voltage of 1.5kV DC between input and output enhances safety and reduces electrical interference.
The compact dimensions (50.8 mm length, 25.4 mm width, 10.2 mm depth) make it suitable for PCB mounting in tight spaces. The device operates efficiently across a temperature range from -40°C to 85°C, suitable for industrial environments and battery-powered equipment.
Wide 2:1 input voltage range ensures operational flexibility. Shielded metal case reduces electromagnetic interference. Industry standard pin-out eases design integration. RoHS compliant and meets UL, EN, IEC safety standards.
This DC-DC converter is ideal for use in industrial control systems, communication equipment, instrumentation, and battery-powered applications. It combines reliable performance, compact design, and high efficiency, making it a trusted choice for engineers and system integrators.
Explore additional TRACOPOWER DC-DC Converters available on EnvMart for similar power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a dual output of ±12V DC with a maximum output current of 625 mA.
It supports a wide input voltage range from 36V DC to 75V DC.
It has an efficiency of up to 88%, maximizing power conversion and minimizing losses.
The dimensions are 50.8 mm in length, 25.4 mm in width, and 10.2 mm in depth.
The isolation voltage between input and output is 1.5kV DC, enhancing safety and reducing electrical interference.
It operates efficiently within a temperature range of -40°C to 85°C, suitable for harsh environments.
This model features two outputs, providing both +12V DC and -12V DC.
It is designed for PCB mounting with a compact 5-pin configuration for easy integration.
It includes continuous short circuit protection to safeguard the device and connected circuits under fault conditions.
The MTBF is rated at 2,300,000 hours, indicating excellent reliability.
It features a shielded metal case with an insulated baseplate for enhanced durability and thermal management.
Yes, it is RoHS compliant and meets UL, EN, and IEC safety standards.
