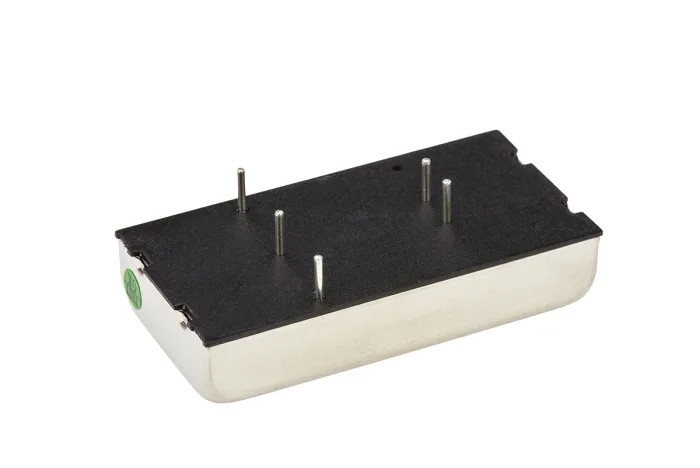

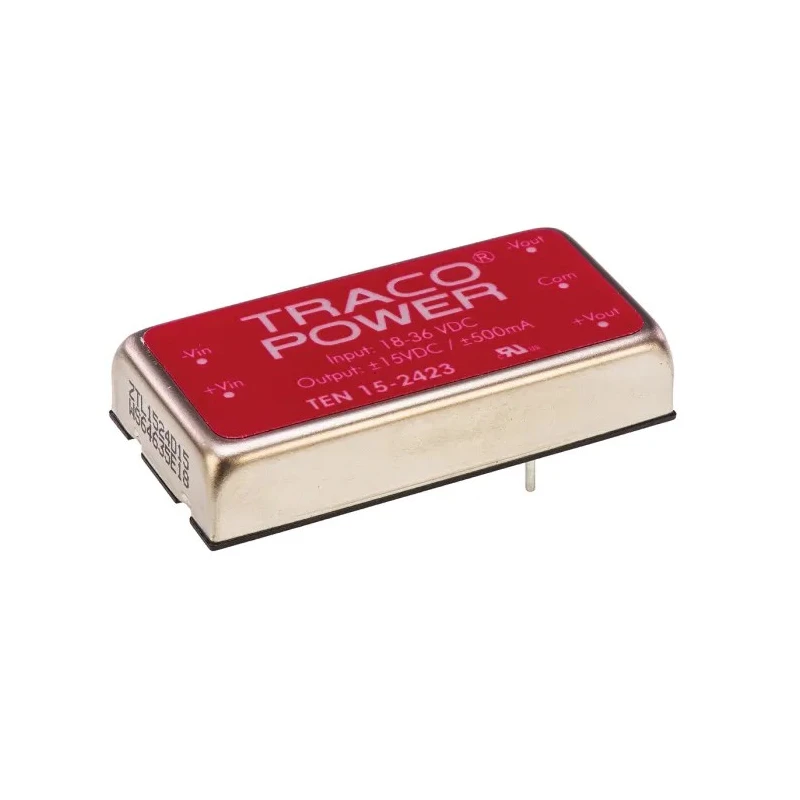

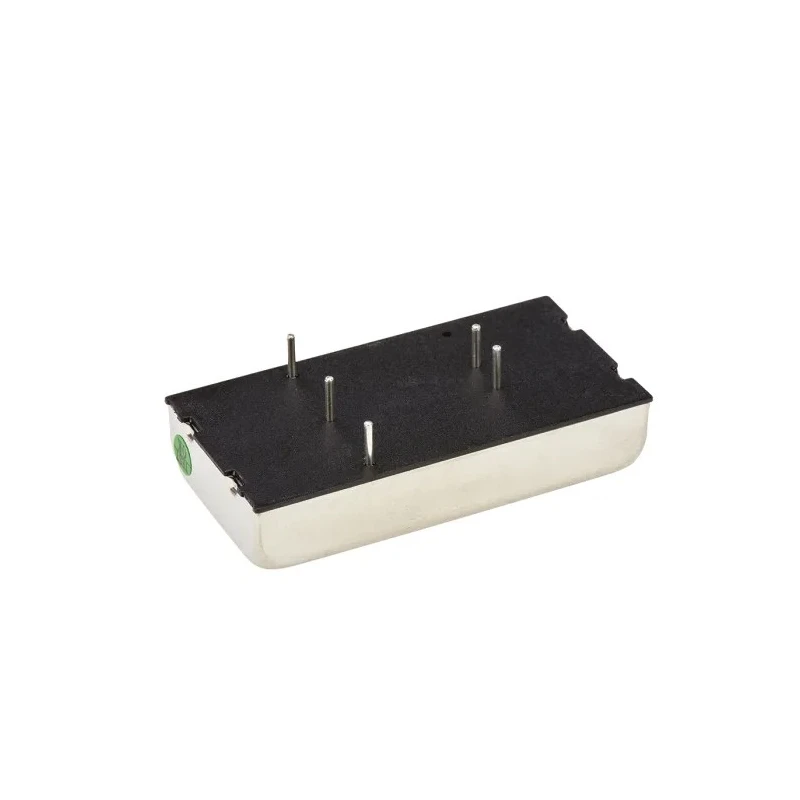

TRACOPOWER 15W Dual Output Regulated Isolated DC/DC Converter 15V, -15V, 500mA, 36V DC Input TEN 15-2423
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 15 DC/DC Converter, 15V, -15 V/ 500 |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 50.8mm |
| Model | TEN 15-2423 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | TEN 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case with Insulated Baseplate |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 500mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
| TRACOPOWER DC-DC ConverterBrand | Traco |
| BXA15-24D15-F regulated DC-DC,+/-15V 15WBrand | AVNET TIME |
Key Features
- Offers high efficiency up to 86% ensuring reduced heat dissipation.
- Built with SMD design and ceramic chip capacitors for high reliability.
- Designed with 1.5kV DC input/output isolation for enhanced safety.
- Supports continuous short circuit protection for durability.
- Has a long MTBF of 700,000 hours indicating excellent reliability.
- Operates over a temperature range of -40 °C to 85 °C.
- Compliant with industry standard pin-out and electrical safety standards.
- Compact dimensions of 50.8mm length, 25.4mm width, and 10.2mm depth make it suitable for space-constrained applications.
Product Description
TRACOPOWER TEN 15-2423 is a 15W dual output regulated isolated DC-DC Converter engineered for industrial, communication, and battery-powered equipment needing reliable power conversion. It features dual output voltages of 15V and -15V at 500mA output current, supplied from an input voltage range of 18V to 36V DC with a wide 2:1 ratio.
The device incorporates a shielded metal case with an insulated baseplate for enhanced electromagnetic compatibility and safety. Its surface mount design includes ceramic chip capacitors to achieve high efficiency of 86%, minimizing thermal challenges in compact setups.
Designed for durability and security, the TEN 15-2423 provides 1.5kV DC isolation between input and output, continuous short circuit protection, and a high MTBF of 700,000 hours, suitable for demanding industrial environments.
Operating within a temperature range from -40 °C to 85 °C, this converter reliably performs in harsh conditions. The compact form factor of 50.8mm x 25.4mm x 10.2mm allows flexible integration on PCBs.
Wide input voltage range allowing versatility in power sources. High efficiency reduces energy waste and heat generation. Dual regulated outputs for positive and negative voltage supply applications. Robust isolation and protection features ensure stable and safe operation.
Compact and shielded package ideal for industrial-grade use.
The TEN 15-2423 converter complies with UL 60950-1, EN 60950-1, and IEC 60950-1 standards, ensuring adherence to global safety requirements. Its design supports seamless use in communications, industrial automation, and battery powered systems requiring isolated power conversion.
Explore the Electronics & Electricals category at EnvMart for advanced power supply solutions and related converters to enhance your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18V to 36V DC, with a 2:1 input ratio.
It provides dual output voltages of 15V and -15V, with a maximum output current of 500mA.
This converter has an efficiency rating of up to 86%, which helps minimize heat generation.
The dimensions of this unit are 50.8mm in length, 25.4mm in width, and 10.2mm in depth.
The isolation voltage is 1.5kV DC, providing enhanced safety between input and output.
It operates over a temperature range of -40 °C to 85 °C, making it suitable for harsh environments.
This model is designed for PCB mounting, allowing for easy integration into various applications.
It complies with UL 60950-1, EN 60950-1, and IEC 60950-1 standards, ensuring adherence to global safety requirements.
It features continuous short circuit protection and has a mean time between failures (MTBF) of 700,000 hours, indicating excellent reliability.
It comes in a shielded metal case with an insulated baseplate, which enhances electromagnetic compatibility.
The TEN 15-2423 has two outputs, providing both positive and negative voltage supplies.
This model is engineered for industrial, communication, and battery-powered equipment requiring reliable power conversion.
