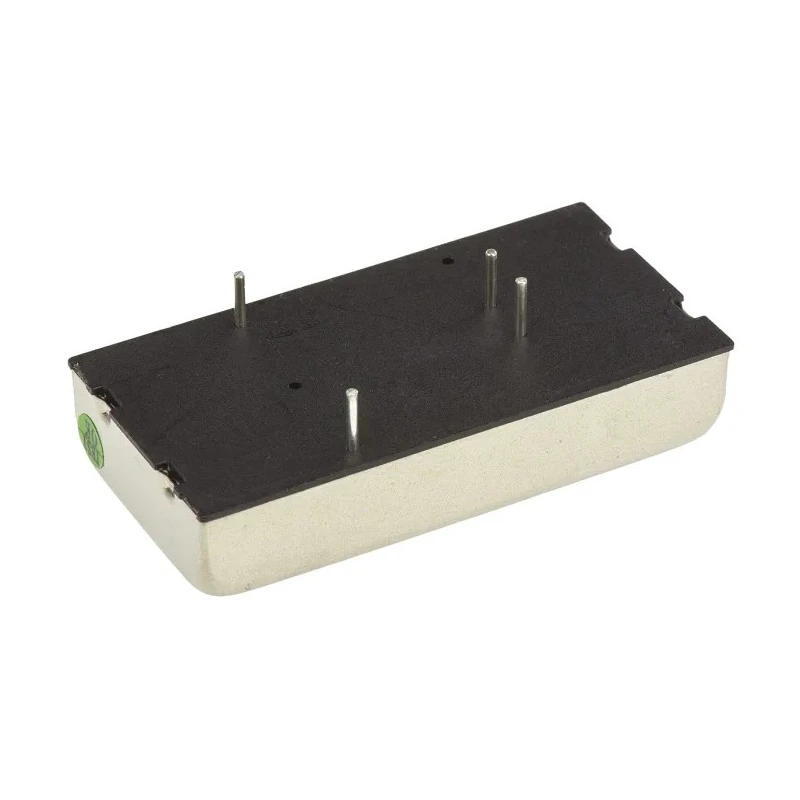

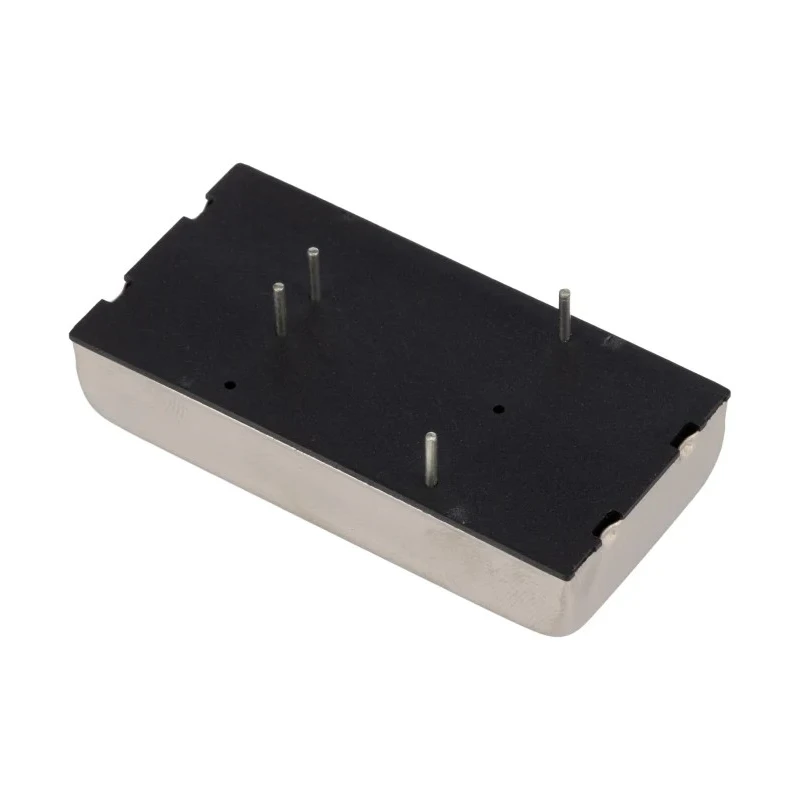

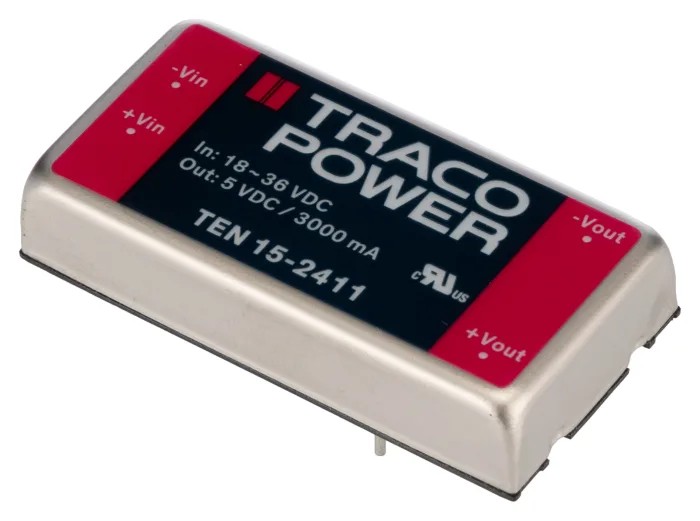

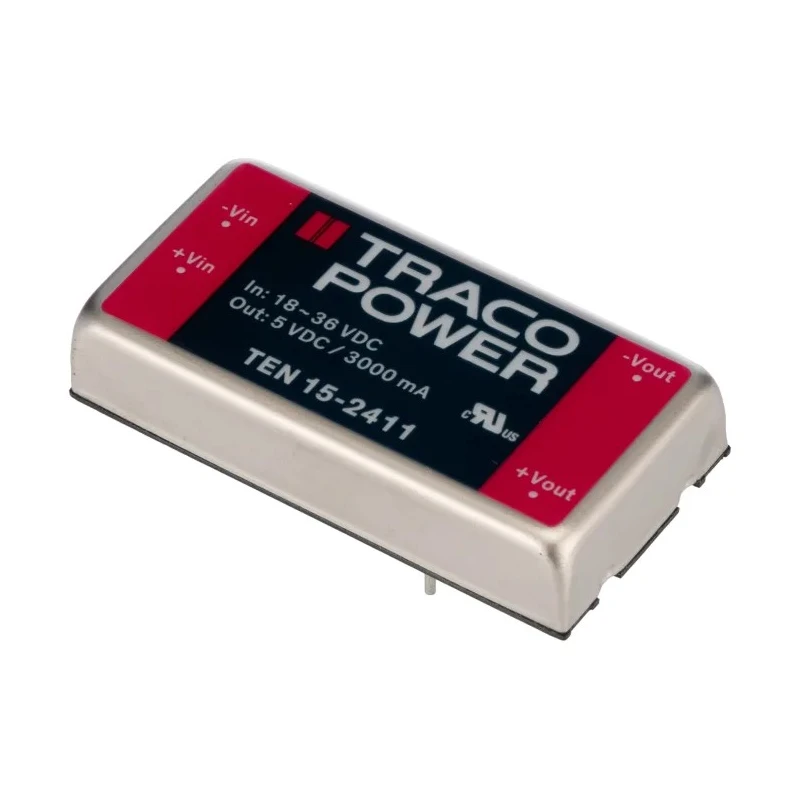

TRACOPOWER DC/DC Converter, 5 V DC Output, 3 A Current, 18-36 V DC Input, 15 W Power, Shielded Metal Case with TEN 15-2411
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 15 DC/DC Converter, 5V dc/ 3 A, 36V |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 50.8mm |
| Model | TEN 15-2411 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | TEN 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case with Insulated Baseplate |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact shielded metal case with insulated baseplate ensures electrical safety.
- High efficiency of 84% reduces heat dissipation during operation.
- Operates reliably in temperatures from -40 °C to +85 °C.
- 1.5 kV DC isolation voltage protects against voltage surges and disturbances.
- Integrated EMI filtering minimizes electrical noise and interference.
- Indefinite short-circuit protection safeguards both equipment and converter.
- PCB mount with 5 pins for secure and robust soldering connection.
- Mean time between failures (MTBF) rated at 700,000 hours for durability.
Product Description
TRACOPOWER TEN 15-2411 DC/DC Converter is designed for industrial and telecommunications applications requiring stable 5 V DC output at 3 A from a wide input voltage range of 18 to 36 V DC. Encased in a shielded metal case with an insulated baseplate, this converter ensures high electrical safety and durability.
With an efficiency rating of 84%, this converter reduces energy loss, maintaining safe operation within a temperature range of -40 °C to +85 °C. Its built-in EMI filter minimizes electromagnetic interference, protecting sensitive circuits and improving overall system reliability.
The device is PCB-mountable with 5 pins and features indefinite short-circuit protection to safeguard both the module and connected components. It is also designed with an isolation voltage of 1.5 kV DC, providing protection against voltage surges.
Compact footprint of 50.8 mm length, 25.4 mm width, and 10.2 mm depth suits space-constrained designs. Mean time between failures (MTBF) of 700,000 hours ensures long-term reliability. Ideally suited for use in industrial power distribution, telecommunications networks, and factory automation.
Designed to meet standard EN60950 and UL1950 approvals.
The TEN 15-2411 model from TRACOPOWER embodies robust performance, integrated safety features, and high efficiency, making it a reliable choice for powering low voltage electronics from higher voltage DC sources.
Explore more high-quality DC/DC converters from TRACOPOWER and other leading brands in the Electronics category at EnvMart.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5 V DC and a maximum output current of 3 A.
It operates with an input voltage range of 18 to 36 V DC.
The maximum output power of this unit is 15 W.
It has an efficiency rating of 84%, which helps to reduce heat dissipation during operation.
The dimensions of this model are 50.8 mm in length, 25.4 mm in width, and 10.2 mm in depth.
It features an isolation voltage of 1.5 kV DC, providing protection against voltage surges.
This unit operates reliably in temperatures ranging from -40 °C to +85 °C.
It is designed for PCB mounting with 5 pins for secure and robust soldering connection.
Yes, it includes indefinite short-circuit protection and integrated EMI filtering to minimize electrical noise.
The MTBF for the TEN 15-2411 is rated at 700,000 hours, indicating long-term reliability.
It is designed to meet standard EN60950 and UL1950 approvals for safety and performance.
It is ideally suited for industrial power distribution, telecommunications networks, and factory automation.
