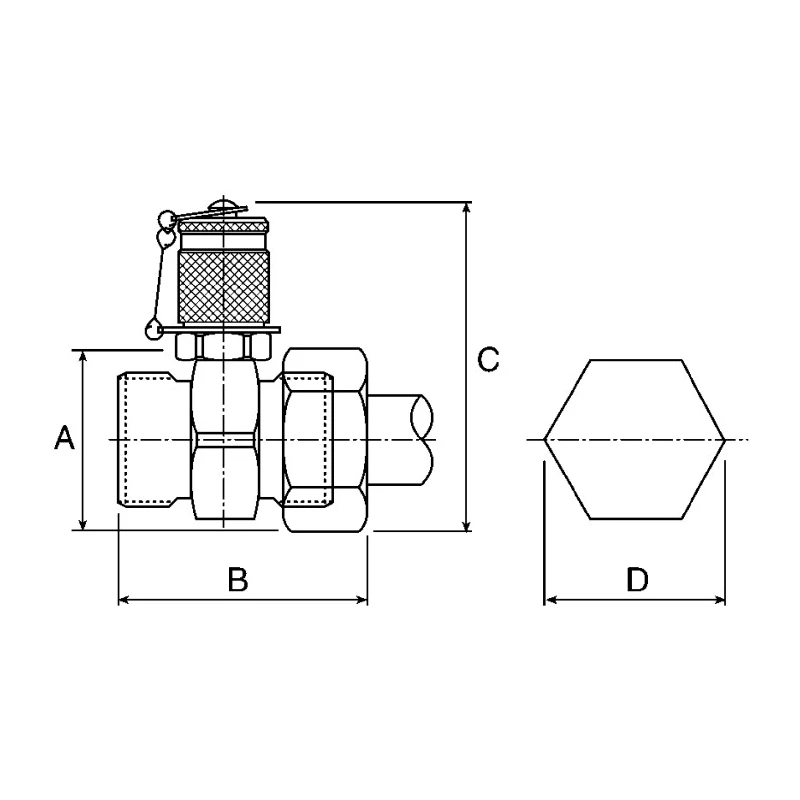

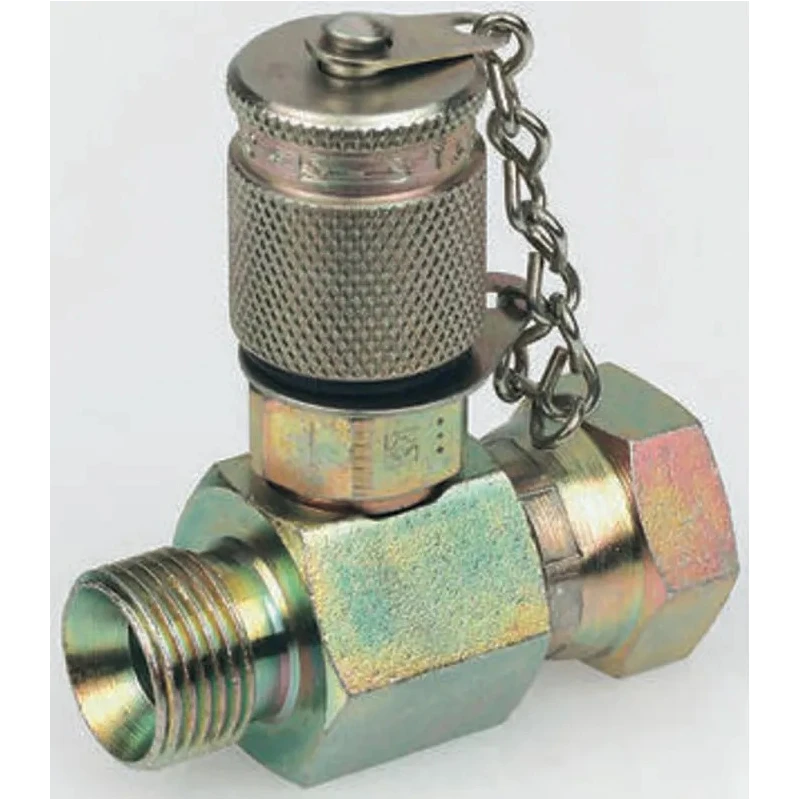

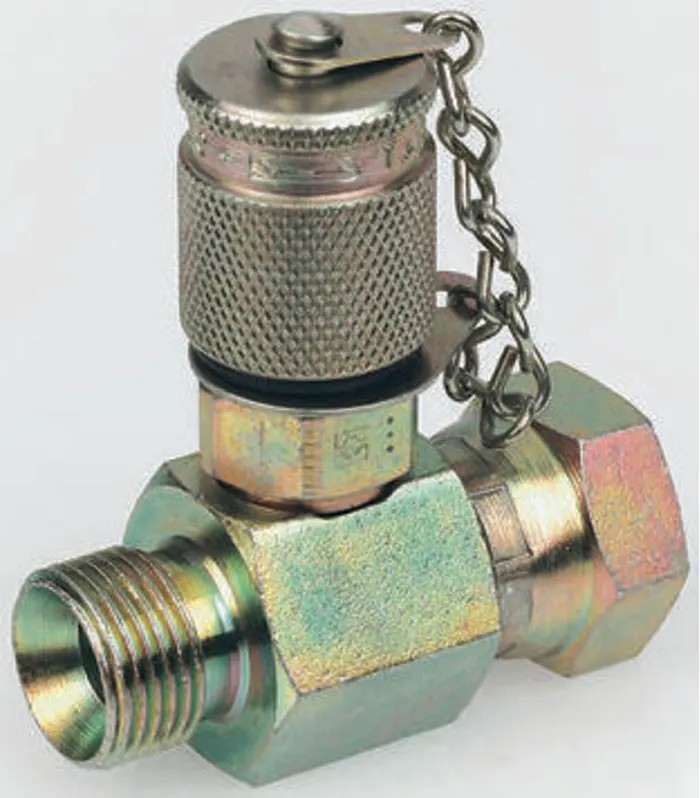

Stauff Steel Hydraulic Test Point with 1/2" Male/Female BSP Inline 60° Test Point Adaptor 1/2" M/F + SMK 20 R 1/8 VC ASS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Stauff |
| Body Material | Steel |
| Model | 1/2" M/F + SMK 20 R 1/8 VC ASS |
| Maximum Operating Temperature | 120°C |
| Connection Thread Standard | G |
| Port Gender | Female/Male |
Key Features
- Constructed from durable steel body material ensuring long service life.
- Operates safely up to maximum temperature of 120 degrees Celsius.
- Features BSP male thread on one end with female swivel nut on the other for easy installation.
- Leak-proof ball-type sealing connection for reliable pressure testing.
- Includes self-locking metal guard caps to protect the test coupling.
- Suitable for low and high pressure hydraulic systems up to 400 bar maximum pressure.
- Allows direct connection to pressure gauges, controls, venting, and sampling devices.
- Metal parts have zinc and gold surface finish for corrosion resistance.
Product Description
Stauff 1/2" M/F + SMK 20 R 1/8 VC ASS Steel Hydraulic Test Point features a BSP inline 60° test point adaptor designed for hydraulic instrumentation and fluid power applications.
Constructed with a robust steel body, this test point is engineered for use in demanding industrial and hydraulic systems, providing a secure and leak-proof interface for pressure measurement and fluid control under high pressure conditions up to 400 bar. The product can safely operate at temperatures reaching 120 degrees Celsius, making it suitable for a range of harsh working environments.
The design includes a male BSP threaded end with a 60° cone and a female swivel nut end, allowing inline mounting between flexible hoses or machined parts. The ball-type sealing provides a reliable and durable seal, preventing leaks during system pressurization and testing. Additionally, self-locking metal guard caps protect the connection when not in use.
Typical industrial use cases include hydraulic system pressure monitoring, venting or bleeding air from hydraulic circuits, contamination sampling for analysis, and connecting to pressure gauges or switching devices. The metal components undergo zinc and gold surface finishing to enhance corrosion resistance, while the internal balls are stainless steel and seals are made with Viton, assuring chemical resistance and longevity.
This test point adaptor is widely used across industrial, construction, manufacturing, hydropower, and fluid power sectors where precise hydraulic testing and control are critical.
Constructed from durable steel body material ensuring long service life. Operates safely up to maximum temperature of 120 degrees Celsius. Features BSP male thread on one end with female swivel nut on the other for easy installation.
Leak-proof ball-type sealing connection for reliable pressure testing. Includes self-locking metal guard caps to protect the test coupling. Suitable for low and high pressure hydraulic systems up to 400 bar maximum pressure.
Allows direct connection to pressure gauges, controls, venting, and sampling devices. Metal parts have zinc and gold surface finish for corrosion resistance. Seals made from Viton for chemical durability on steel or stainless steel parts.
Explore more high-quality Hydraulic Test Points and components in the Hydraulic & Pneumatic Tools category at EnvMart for your industrial instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This hydraulic test point is suitable for low and high pressure hydraulic systems with a maximum pressure of 400 bar.
It can operate safely at a maximum temperature of 120 degrees Celsius.
It features a leak-proof ball-type sealing connection, ensuring reliable pressure testing.
The body is constructed from durable steel, with metal parts having a zinc and gold surface finish for corrosion resistance. The internal balls are stainless steel, and the seals are made from Viton for chemical durability.
It has a BSP male thread on one end and a female swivel nut on the other, allowing for easy installation between flexible hoses or machined parts.
It is widely used for hydraulic system pressure monitoring, venting or bleeding air from hydraulic circuits, contamination sampling, and connecting to pressure gauges or switching devices.
This unit includes self-locking metal guard caps to protect the test coupling when not in use.
The connection thread standard for this model is BSP, designated as G.
It features a female/male port gender configuration, allowing it to connect easily with other components.
The country of origin for this hydraulic test point is India.
The model name is 1/2" M/F + SMK 20 R 1/8 VC ASS.
Yes, it is designed for use in both low and high pressure hydraulic systems, accommodating a wide range of applications.
