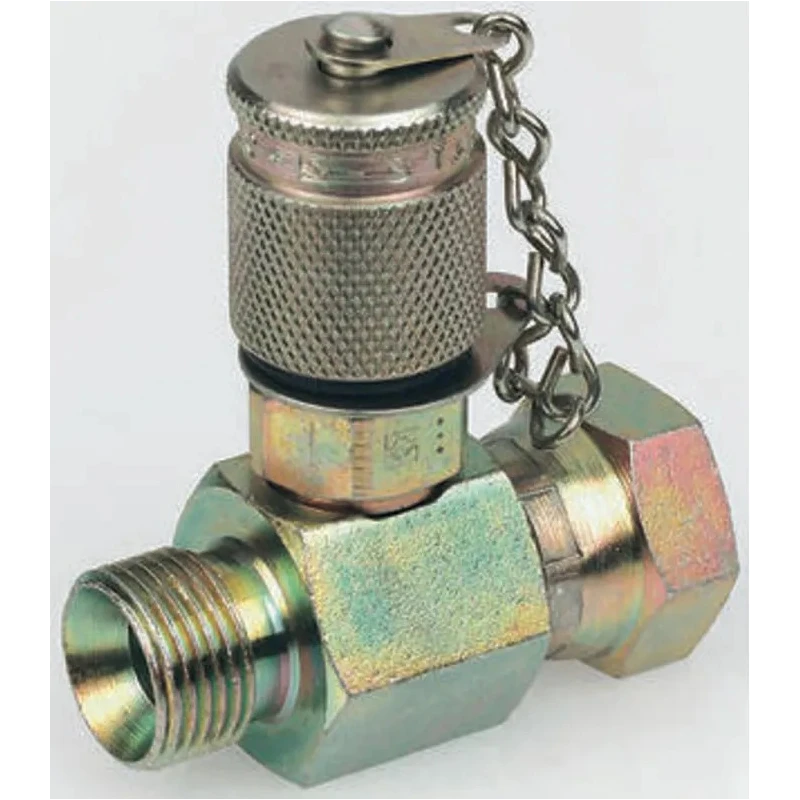

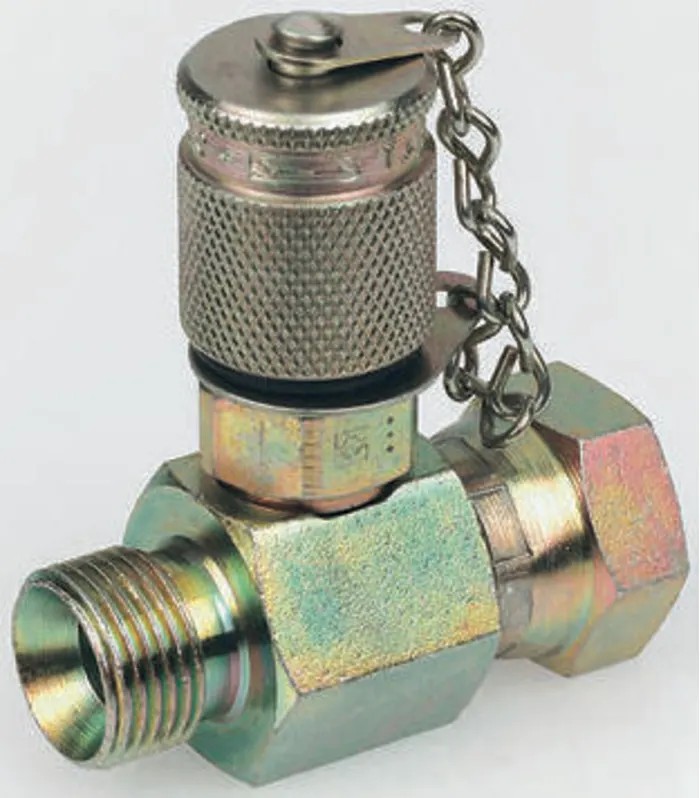

Stauff Steel Hydraulic Test Point 3/8" M/F + SMK 20 R 1/8 VC ASS Female/Male G 3/8" M/F + SMK 20 R 1/8 VC ASS

Stauff 3/8" M/F + SMK 20 R 1/8 VC ASS Steel Hydraulic Test Point is a precision-engineered device designed for hydraulic instrumentation and switch applications in industrial fluid power systems. It provides a reliable, leak-proof connection point for measuring, controlling, and sampling hydraulic pressures within systems operating up to a maximum temperature of 120°C.

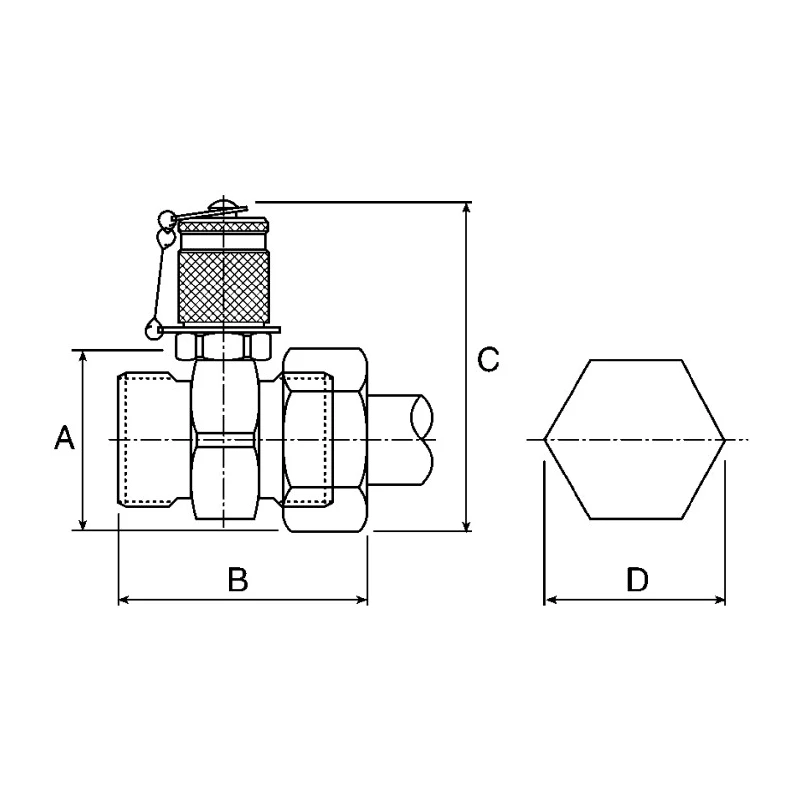

The hydraulic test point features a BSP inline 60° test point adaptor design that includes an M16 60º coned BSP male thread on one end and a female swivel nut on the other, facilitating direct in-line mounting between flexible hose assemblies or other suitably machined components. This configuration allows for simple and secure coupling to pressure gauges, control devices, and sampling equipment.

Constructed from high-grade steel with zinc and gold surface finishes, the test point offers excellent corrosion resistance and durability for demanding industrial environments. The internal ball-type sealing mechanism ensures a leak-proof connection under high operating pressures up to 400 bar, while self-locking metal guard caps protect the coupling when not in use.

These test points deliver fast and efficient coupling for monitoring static and peak pressures, venting, or contamination sampling. Stainless steel balls combined with Viton seals provide chemical compatibility and long service life. The female/male G connection thread standard facilitates broad compatibility with hydraulic system components.

Industrial applications include hydraulic system pressure measurement, control of fluid flows, venting and bleeding air from systems, as well as analysis sampling to detect contamination and perform system diagnostics. The maximum operating temperature rating allows usage in various environments, including manufacturing, construction, agricultural hydraulic setups, and general fluid power machinery maintenance.

Attention to safety is critical, and it is essential that tubes with adequate wall thickness matching hydraulic working pressures be employed to maintain system integrity and operational safety.

Set contents consist of 1 Pc Stauff Steel Hydraulic Test Point with 3/8" male/female BSP thread and SMK 20 R 1/8 VC ASS female/male G connections. Explore the comprehensive range of Hydraulic Test Points and instrumentation components offered by Stauff for reliable and precise hydraulic system management.
