Stauff Steel Hydraulic Test Point Thread Size 3/4 in, Connection Thread Standard G 3/4" M/F + SMK 20 R1/8 VC ASSM

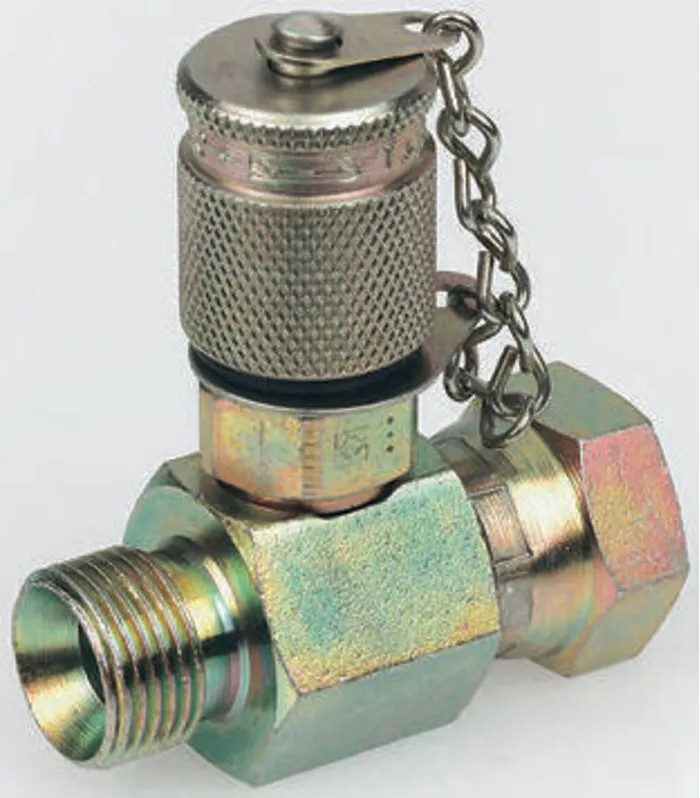

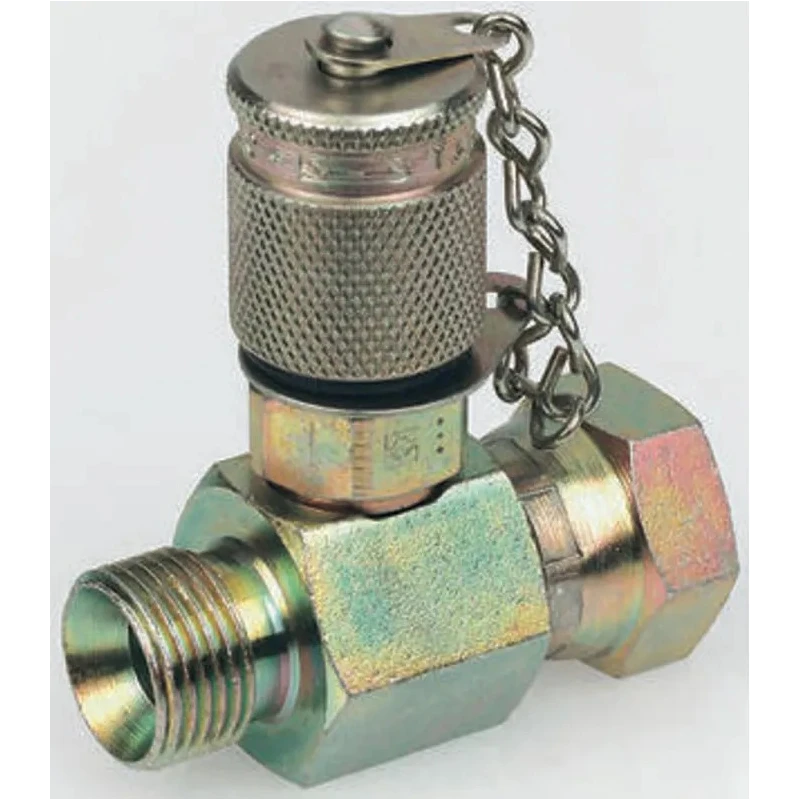

Stauff 3/4" M/F + SMK 20 R1/8 VC ASSM Hydraulic Test Point is a steel-bodied device designed for precise pressure measurement and control in hydraulic systems. It features a BSP inline 60° test point adaptor with a male thread on one end and a female swivel nut on the other, allowing direct in-line mounting between flexible hose assemblies or suitably machined parts.

This test point incorporates a leak-proof ball-type sealing connection and self-locking metal guard caps as standard, ensuring reliable sealing and protection of the coupling. It allows fast and secure connection to pressurized systems for measuring, control, and switching functions.

Its applications include monitoring static and peak pressures, connecting pressure gauges, bleeding air from hydraulic systems, and sampling contamination for further analysis. The product withstands maximum joining pressures up to 400 bar and can operate safely at temperatures up to 120°C.

Manufactured from steel with zinc and gold surface finishes, with stainless steel balls and Viton seals, the unit combines durability with chemical resistance. It is suited for industrial, laboratory, HVAC, manufacturing, water treatment, and construction hydraulic systems where precise instrumentation and control are critical.

The package and product documentation ensure compatibility with industry standard Hydraulic Test Points and accessories. This test point contributes to reliable fluid power systems by providing secure pressure testing and monitoring connections.

Constructed of durable steel for robust performance. Maximum operating temperature of 120°C suitable for demanding environments. Features a 3/4 inch BSP inline 60° male thread and female swivel nut connection. Designed for direct in-line mounting between flexible hose assemblies or machined parts.

Leak-proof ball-type sealing connection with self-locking metal guard caps. Enables monitoring, control, venting, and sampling of hydraulic pressures up to 400 bar. Ideal for use with measuring, control, and switching hydraulic devices.

Compatible with fluids in hydraulic systems requiring pressure control and contamination sampling. Metal parts finished with zinc and gold surface; stainless steel balls and Viton seals ensure durability. Designed for industrial, laboratory, and construction hydraulic systems requiring precise testing.

Explore more hydraulic instrumentation products available at EnvMart tailored for diverse fluid power and hydraulic needs.
