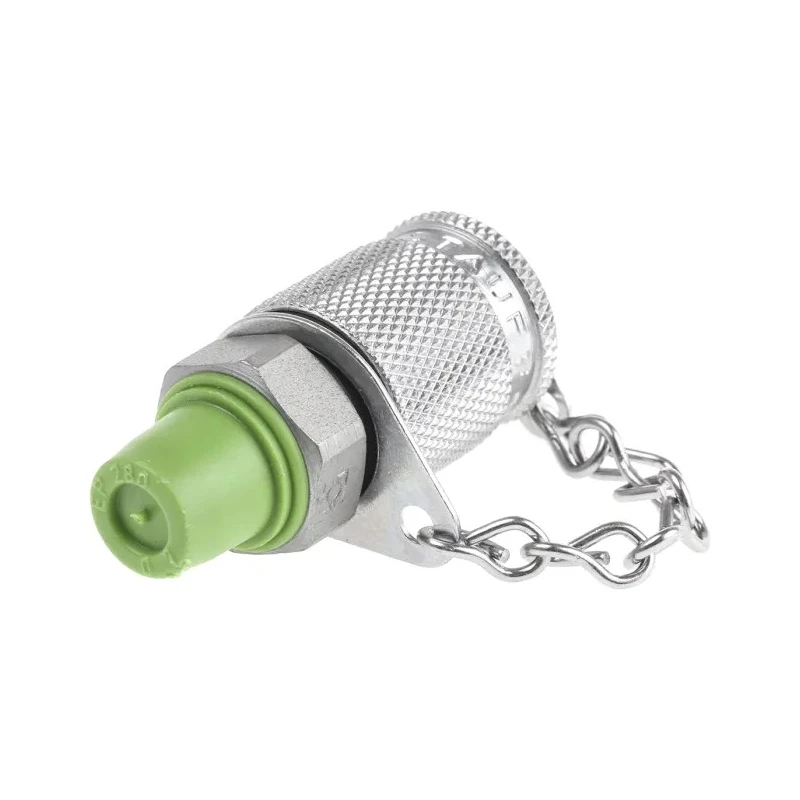

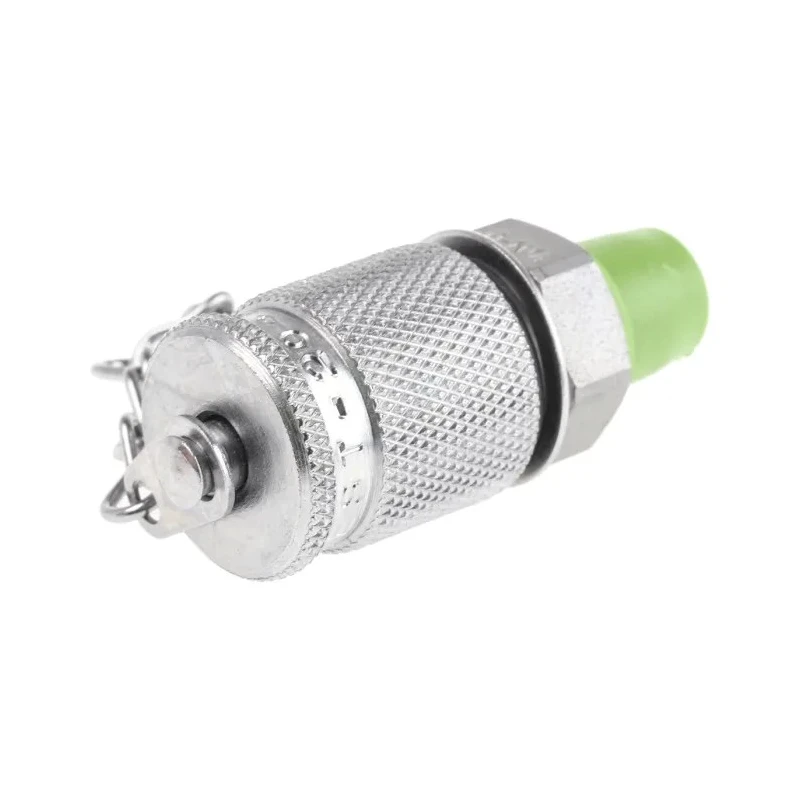

Stauff Steel Hydraulic Test Point Thread Size 1/8 in NPT Male Connection SMK 20 1/8 NPT VD

Stauff SMK 20 1/8 NPT VD steel hydraulic test point offers a robust and reliable solution for monitoring and control of pressure in hydraulic systems. Featuring a 1/8 inch NPT male thread connection, this test point integrates seamlessly into pressurized hydraulic circuits for precise instrumentation attachment.

The steel body construction provides high strength and durability required for demanding industrial environments. The test point uses a leak-proof ball-type sealing connection, complemented by self-locking metal guard caps that ensure safety and prevent contamination during operation.

Rated for maximum operating temperatures of up to 200°C and maximum joining pressure of 400 bar, it withstands harsh conditions while maintaining accurate performance. This makes it suitable for static and peak pressure monitoring, fluid pressure control, system venting, and air bleeding tasks.

The metal components are finished with zinc and gold surface coatings for corrosion resistance, while stainless steel balls and Viton seals guarantee durability and chemical resilience. The test point is primarily used for connection to measuring, control, and switching devices within hydraulic, pneumatic, industrial manufacturing, and fluid power applications.

This product is made in Germany and complies with industry-standard manufacturing quality, though it does not hold specific formal certifications or approvals. Constructed with durable steel body for high pressure hydraulic systems.

Threaded connection size is 1/8 inch with NPT standard, male port. Operating temperature rated up to 200 degrees Celsius. Leak-proof ball-type sealing connection ensures reliable performance. Includes self-locking metal guard caps for added safety and protection.

Suitable for pressure monitoring, control, venting, and fluid sampling. Maximum joining pressure rating of 400 bar for high-pressure hydraulic applications. Metal components finished with zinc and gold coating for corrosion resistance.

Ideal for use in industrial hydraulic, manufacturing, and fluid power systems. Explore EnvMart’s extensive selection of Hydraulic Test Points and instrumentation for precision fluid power control and measurement solutions.
