Stauff Steel Zinc Nickel Plated Carbon Steel 303 Stainless Steel Hydraulic Test Point M14 x 1.5 Thread SMK 20 M14X1.5 VB

Stauff SMK 20 M14X1.5 VB hydraulic test point features a robust body material combination of steel, zinc, nickel-plated carbon steel, and 303 stainless steel components, providing excellent durability and resistance to corrosion. It supports a maximum operating temperature of 200°C, making it suitable for demanding hydraulic system applications.

This test point is engineered with a thread size of M14 x 1.5 and complies with multiple connection thread standards, including ISO 11926-1, DIN 2353, DIN 3852, SAE J1453, NPT, ISO 9974-1, ISO 8434-1, ISO 6149-1, and SAE J514. The seals are made of ethylene propylene diene monomer, fluoroelastomer, and nitrile rubber to ensure reliable and durable sealing performance under various operating conditions.

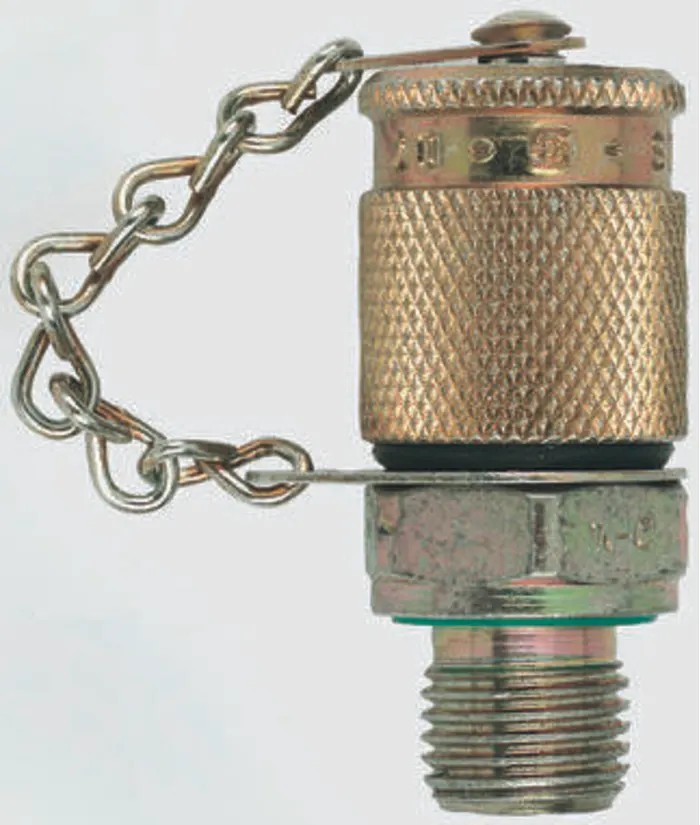

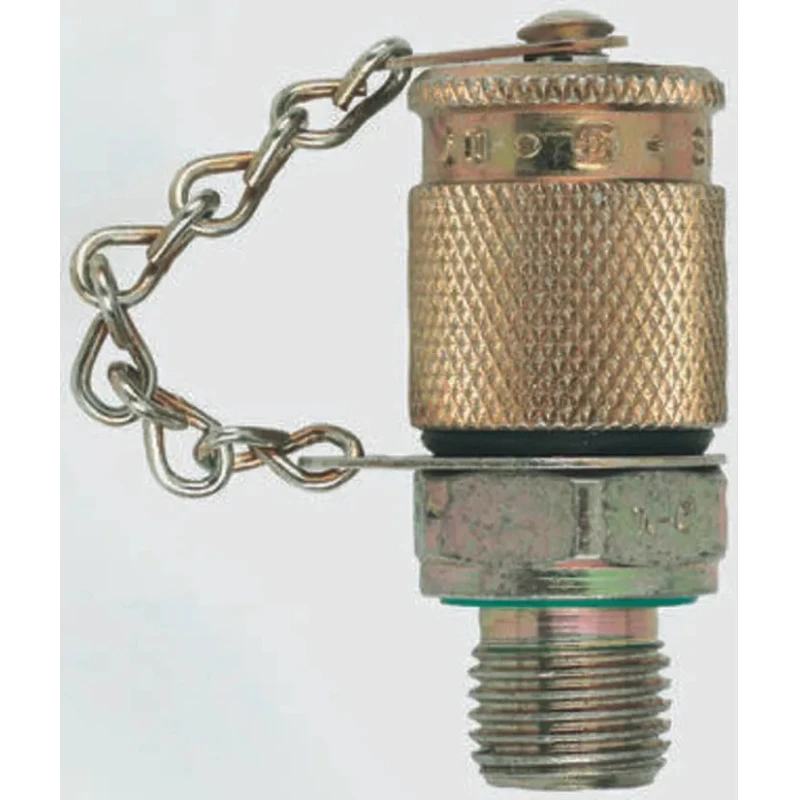

The design incorporates a leak-proof ball-type sealing connection for secure pressure monitoring and control. Self-locking metal guard caps provide added safety and convenience during installation and maintenance. The test point enables fast coupling directly into pressurized hydraulic systems for pressure measurement, venting, and contamination sampling.

Applications include static and peak pressure monitoring, fluid pressure control, venting or bleeding of air from hydraulic systems, and contamination sampling for further analysis. Metal parts are treated with zinc and gold surface finishing or manufactured from stainless steel to enhance corrosion resistance. All balls used in sealing are stainless steel, with Viton seals on steel and stainless steel parts.

Manufactured in Germany, this hydraulic test point meets several stringent international standards and approvals such as DIN 3852 Part 2, SAE J1453, ISO 9974-1, DIN 2353, ISO 8434-1, ANSI/ASME B1.20.1-1983, ISO 6149-1, ISO 11926-1, ISO 1179-1, and SAE J514, ensuring its reliability and compatibility within industrial hydraulic systems.

Features a thread size of M14 x 1.5 compliant with multiple ISO and DIN standards. Body made from steel, zinc and nickel-plated carbon steel, and 303 stainless steel. Maximum operating temperature rating of 200°C. Includes seals made from ethylene propylene diene monomer, fluoroelastomer, and nitrile rubber.

Leak-proof ball-type sealing connection with self-locking metal guard caps. Designed for pressure monitoring, venting, and sampling in hydraulic systems. Manufactured in Germany according to high-quality international standards.

This hydraulic test point is well-suited for industrial, construction, manufacturing, and fluid power applications. It offers reliable performance in diverse hydraulic instrumentation and switch systems, enabling precise pressure monitoring and fluid control. For those needing quality Hydraulic Test Points, explore the full range of Stauff products and other hydraulic tools available at EnvMart.
