Stauff Zinc Steel Nickel Plated Carbon Steel 303 Stainless Steel Hydraulic Test Point 7/16 UNF VE Metric SMK 20 7/16 UNF VE

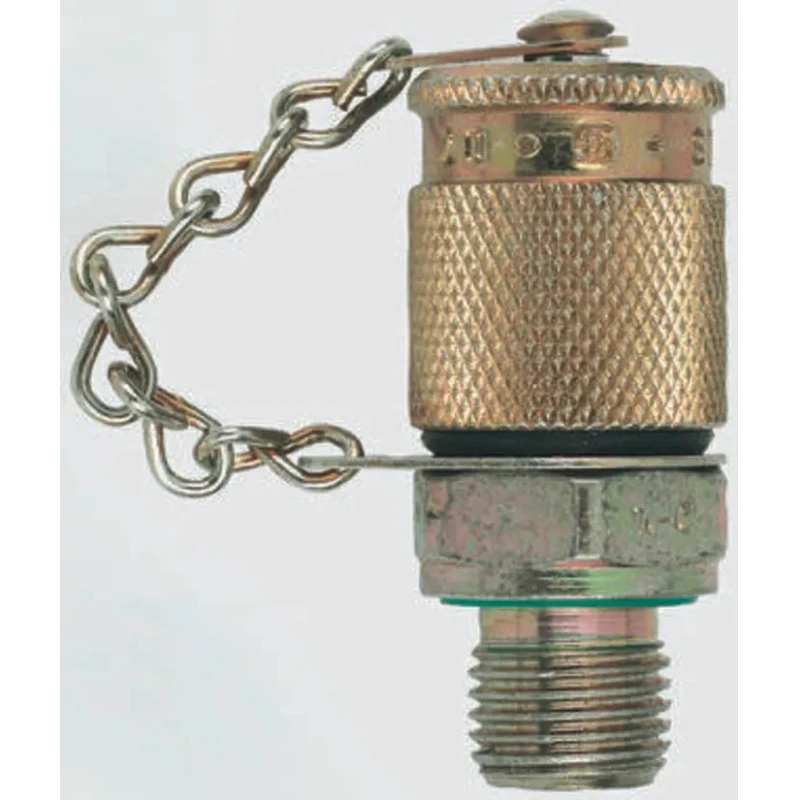

Stauff SMK 20 7/16 UNF VE Hydraulic Test Point Metric is precision-engineered for use in hydraulic instrumentation and switch applications. Made from robust zinc, steel, nickel plated carbon steel, and 303 stainless steel, this test point is built to withstand demanding environments with a maximum operating temperature of 200°C.

This hydraulic test point features a 7/16 inch thread size and a connection thread standard conforming to metric specifications, providing secure and versatile connectivity. The sealing components utilize nitrile rubber (NBR), fluorelastomer, and ethylene propylene diene monomer materials, ensuring reliable leak-proof operation under pressure.

The product complies with numerous industry standards such as ISO 6149-1, SAE J514, SAE J1453, DIN 3852 Parts 1 and 2, and ANSI/ASME B1.20.1-1983, highlighting its quality and compatibility in various hydraulic systems.

It incorporates a leak-proof ball-type sealing connection and comes standard with self-locking metal guard caps. The test coupling allows direct connection to pressurized systems to facilitate fast coupling for monitoring, control, venting, and sampling of pressure in both low and high-pressure conditions.

Typical applications include connection to pressure gauges, fluid pressure control, venting or bleeding air from hydraulic networks, and contamination sampling for analytical purposes. The maximum joining pressure is rated at 400 bar, making it suitable for rigorous industrial and manufacturing environments.

Constructed from zinc, steel, nickel plated carbon steel, and 303 stainless steel for durability and corrosion resistance. 7/16 inch thread size with metric connection thread standard for secure installation. Maximum operating temperature up to 200°C for reliable performance.

Nitrile rubber (NBR), fluorelastomer, and ethylene propylene diene monomer seals for superior sealing capabilities. Complies with ISO, SAE, DIN, and ANSI/ASME standards for quality assurance. Leak-proof ball-type sealing connection with self-locking metal guard caps.

Designed for accurate pressure monitoring, venting, and fluid control in hydraulic systems.

Ideal for use in industrial, laboratory, construction, HVAC, manufacturing, and water treatment hydraulic applications. Explore more hydraulic instrumentation products at EnvMart for your precision measurement and control needs.
