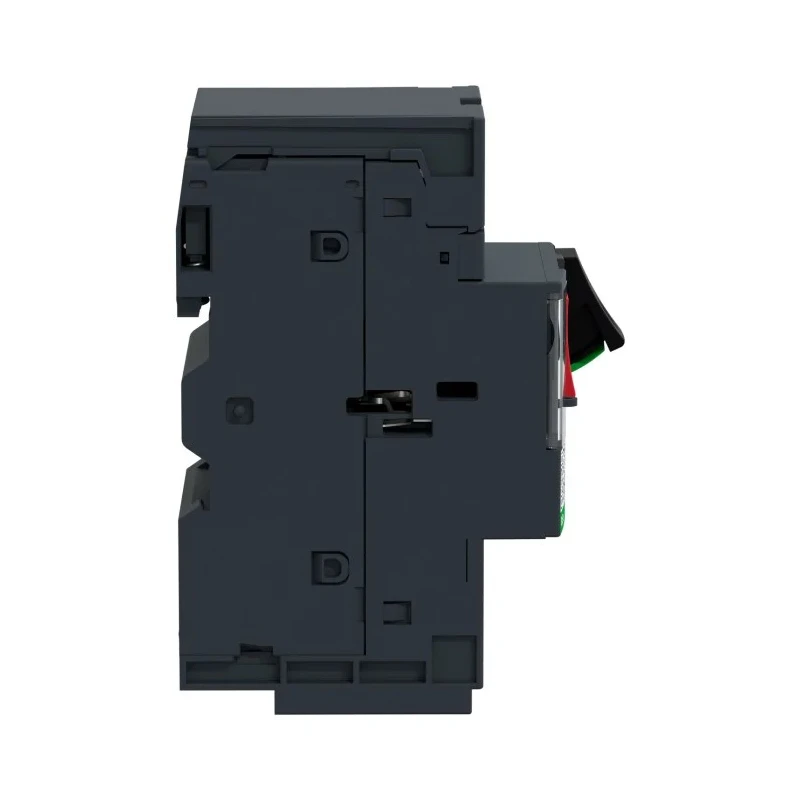

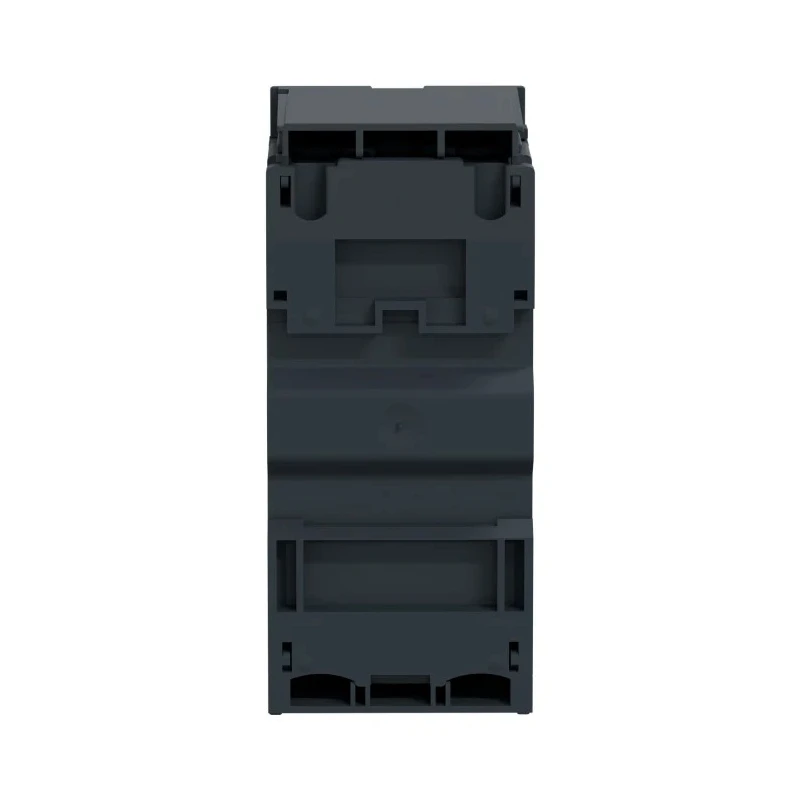

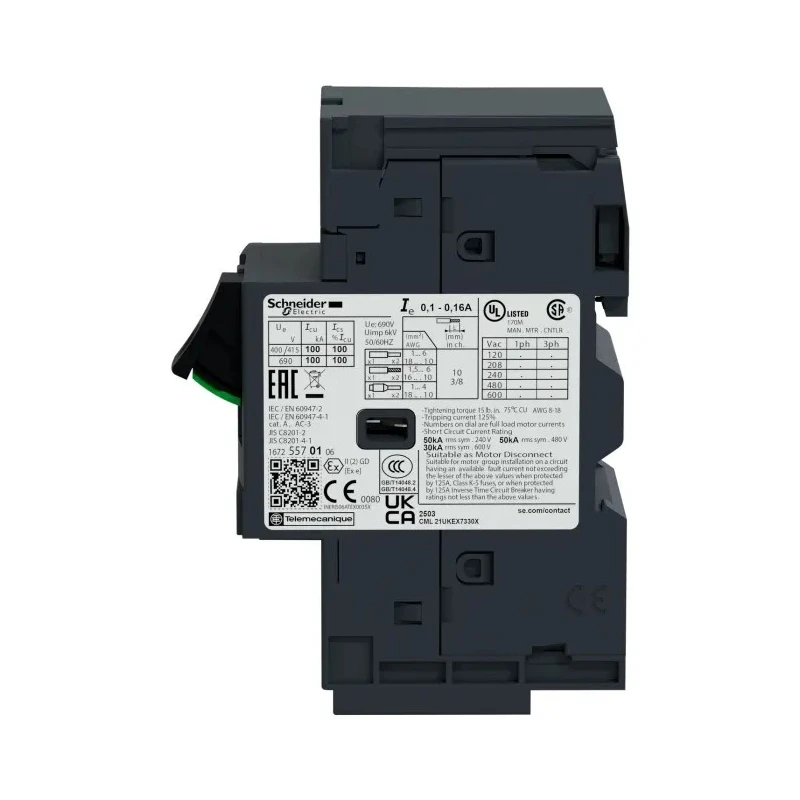

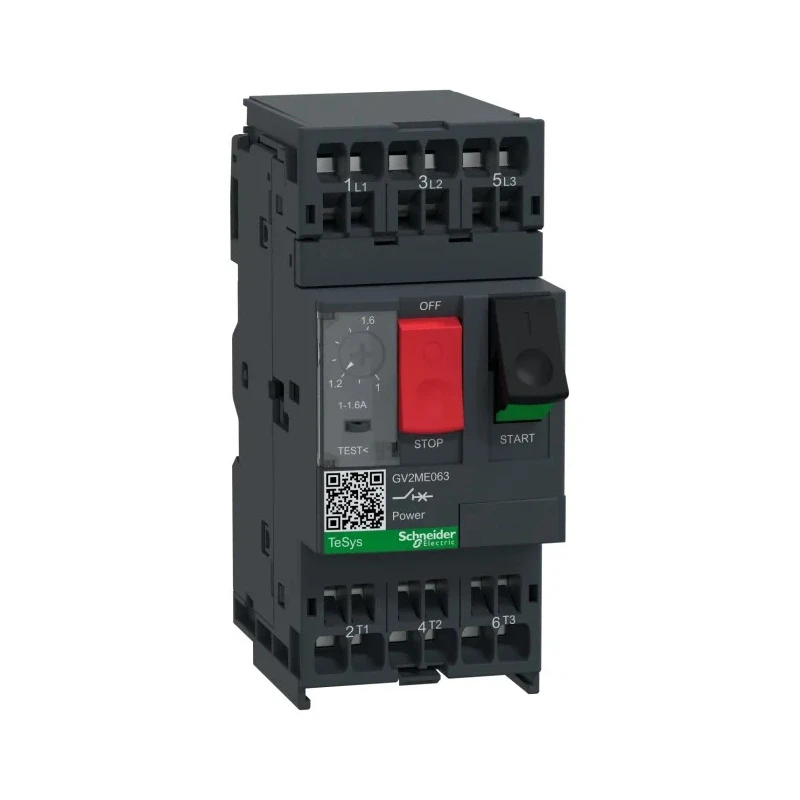

Schneider Electric Motor Protection Circuit Breaker 1A, 1.6A Current, 690V Supply, Thermal Magnetic Sensing GV2ME

Schneider Electric GV2ME Motor Protection Circuit Breaker is engineered for industrial-grade protection of three-phase motors, delivering reliable thermal-magnetic safeguarding against overload, short circuit, and phase loss. Operating at a supply voltage up to 690V and with a current rating adjustable between 1 and 1.6A, this device is suitable for installation in automation panels and electrical distribution systems.

The breaker features an adjustable thermal range for precise overload detection and a magnetic trip at 22.5A for fast short-circuit interruption. It has a breaking capacity of 100 kA, enabling it to clear faults efficiently. Phase-failure detection function prevents single-phase motor operation, maintaining system safety.

Equipped with an IP20 enclosure, the unit allows for protected indoor panel installation and can be mounted either on a 35mm symmetrical DIN rail or fixed to panels using an adaptor plate. It supports continuous operation in ambient temperatures from -20°C to 60°C and dissipates approximately 2.5 W per pole, ensuring thermal stability.

The mechanical and electrical endurance is robust, with ratings of 100,000 mechanical and 100,000 electrical cycles at AC-3 duty (415V), guaranteeing longevity under heavy-duty use. The circuit breaker has undergone rigorous environmental testing, including shock resistance of 30 Gn for 11 ms and vibration resistance at 5 Gn across 5 to 150 Hz.

Conforming to a wide range of international standards and approvals such as UL, CSA, EAC, ATEX, and IEC 60947 series, this Better World product from Schneider Electric supports sustainability with a design focused on disassembly and recycling.

Adjustable thermal overload protection from 1 to 1.6A. Magnetic short-circuit trip at 22.5A for fast fault clearance. High breaking capacity of 100 kA for effective fault management. Phase loss detection for safe motor operation.

IP20 rated enclosure suitable for indoor installation. Flexible mounting options include DIN rail and panel mounting. Durable mechanical and electrical life rated at 100,000 cycles. Wide operating temperature range from -20°C to 60°C.

Complies with major international standards including UL and IEC. Designed for environmental sustainability and easy disassembly.

Ideal for use in manufacturing equipment, HVAC systems, and shipboard auxiliary motor protection, this circuit breaker combines robust protection with reliable performance. Explore more products in the Motor Circuit Breaker category at EnvMart for comprehensive industrial automation solutions.
