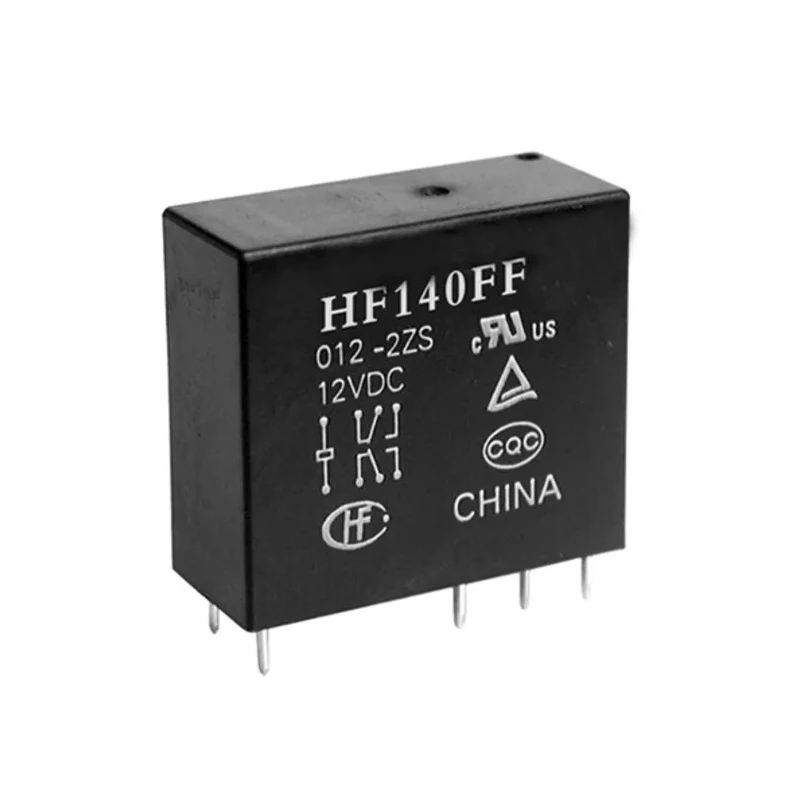

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 10A Switching Current DPDT HF140FF/012-2ZTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.3mm |
| Length | 29mm |
| Model | HF140FF/012-2ZTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF140FF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 530mW |
Key Features
- Operates with a 12V dc coil voltage ensuring reliable switching.
- Double Pole Double Throw (DPDT) contact configuration for versatile electrical control.
- Switching current of 10A suitable for moderate power applications.
- Compact design with PCB mount type and PCB pin terminals.
- Silver alloy contacts for enhanced conductivity and durability.
- Operates effectively between -40°C and 85°C temperature range.
- Coil resistance of 275Ω and coil power consumption of 530mW.
- Isolation voltage between coil and contact of 5KVAC ensuring electrical safety.
Product Description
Hongfa Europe GMBH HF140FF/012-2ZTF is a high-quality PCB Power Relay with a 12V dc coil and 10A switching current featuring a DPDT contact configuration. This non-latching electromagnetic relay offers a durable and compact solution for intermediate power switching needs in industrial and automation applications.
The relay is designed for PCB mounting with PCB pin terminals, exhibiting dimensions of 29mm in length, 26.3mm in height, and 13mm in width. It uses silver alloy contacts that provide excellent conductivity and durability, along with a contact resistance of just 50mΩ. It supports switching DC voltage up to 30V dc and AC voltage up to 30V ac, handling switching powers up to 2.5kVA.
The coil voltage requirement is 12V dc, with a coil resistance of 275Ω and coil power consumption of 530mW. The relay can operate reliably over a temperature range from -40°C to 85°C, making it suitable for a wide variety of environmental conditions. It also features a strong isolation voltage of 5KVAC between coil and contacts, enhancing safety and performance reliability.
Certified with RoHS compliance, the Hongfa HF140FF/012-2ZTF relay is environmentally friendly and flux proofed to ensure extended operational life lasting up to 10 million cycles. Its high switching capacity up to 240W DC and robust design makes it ideal for applications in automotive controls, industrial automation, signal conditioning, and other electrical control systems.
This PCB Power Relay is a trusted choice for engineers and manufacturers requiring compact, durable, and reliable relay solutions in electronics and electrical systems. Operates with a 12V dc coil voltage ensuring reliable switching.
Double Pole Double Throw (DPDT) contact configuration for versatile electrical control. Switching current of 10A suitable for moderate power applications. Compact design with PCB mount type and PCB pin terminals. Silver alloy contacts for enhanced conductivity and durability.
Operates effectively between -40°C and 85°C temperature range. Coil resistance of 275Ω and coil power consumption of 530mW. Compact dimensions: 29mm length, 26.3mm height, and 13mm width. Isolation voltage between coil and contact of 5KVAC ensuring electrical safety.
Environmental friendly and RoHS compliant product. Explore more advanced relays in the Power Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
This model has a maximum switching current of 10A.
The relay measures 29mm in length, 26.3mm in height, and 13mm in width.
It features a Double Pole Double Throw (DPDT) contact configuration.
The contact resistance is 50mΩ.
It operates effectively between -40°C and 85°C.
The coil resistance is 275Ω.
The coil power consumption is 530mW.
It can switch DC voltage up to 30V and AC voltage up to 30V.
The contacts are made of silver alloy, which enhances conductivity and durability.
Yes, the relay is certified with RoHS compliance.
The isolation voltage between the coil and contact is 5KVAC.
