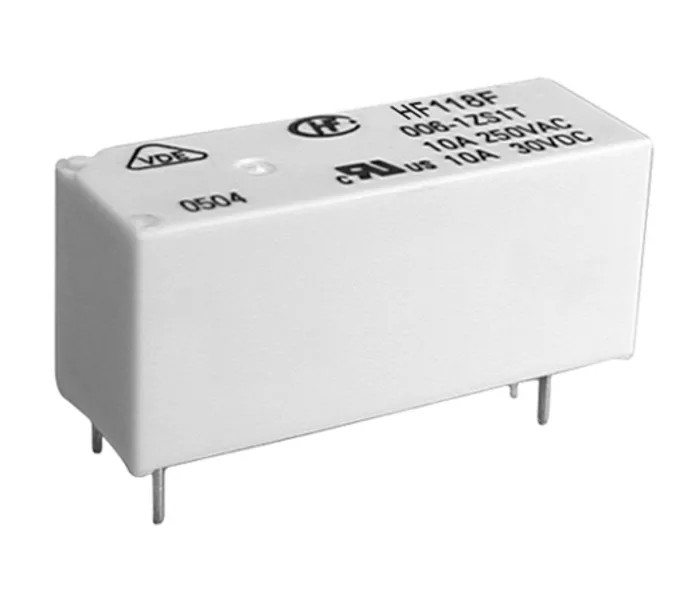

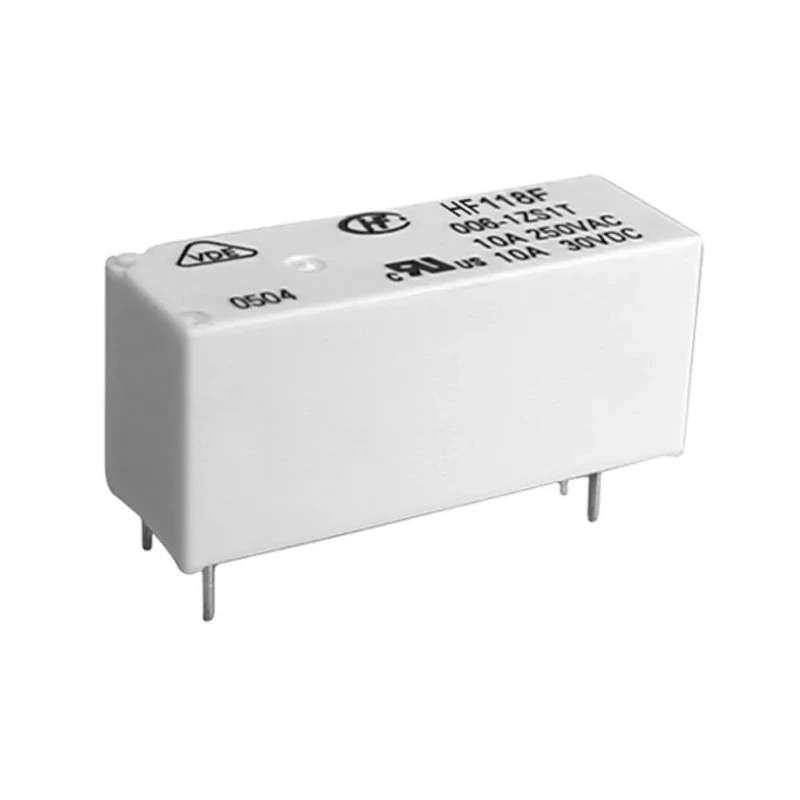

Hongfa Europe GMBH PCB Power Relay, 12V DC Coil, 10A Switching Current, SPST HF118F/012-1ZS1T(136)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 12.5mm |
| Length | 28.5mm |
| Model | HF118F/012-1ZS1T(136) |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF118F |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 620Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 290mW |
| Outline Dimensions | (28.5 x 10.1 x 12.5) mm |
Key Features
- Constructed for PCB mounting with a compact outline dimension of 28.5 x 10.1 x 12.5 mm.
- Features SPST contact configuration with silver alloy contacts for reliability.
- Operates within a temperature range of -40°C to 85°C for versatile applications.
- Coil resistance of 620 ohms and coil power consumption of 290 mW ensure efficiency.
- Switching capacity supports 10A current at 125V AC/DC voltages.
- Designed with 5 kV dielectric strength providing excellent isolation between coil and contacts.
- Plastic sealed and flux proofed for environmental protection and durability.
- Environmentally friendly and RoHS compliant.
Product Description
Hongfa Europe GMBH HF118F/012-1ZS1T(136) is a PCB power relay engineered for high-performance electronic and industrial applications. The relay features a 12V DC coil and is capable of switching currents up to 10A, with a contact configuration of SPST, making it ideal for precise control circuits and automation systems.
Its compact dimensions (28.5 x 10.1 x 12.5 mm) allow for efficient PCB layout and space-saving designs. The relay operates reliably across a wide temperature range, from -40°C to 85°C, ensuring functionality in harsh environments.
Built with silver alloy contacts, the unit offers low contact resistance of 100 mΩ, contributing to minimal power loss during operation. The coil resistance of 620 Ω and coil power consumption of 290 mW provide balance between energy efficiency and response time.
The relay supports switching voltages of up to 125V AC and DC, accommodating a broad range of electrical systems. Additionally, it provides a 5 kV dielectric strength between coil and contacts, guaranteeing electrical isolation and operator safety.
Available in plastic-sealed and flux-proofed versions, this relay ensures durability and longevity. The product is RoHS compliant, contributing to eco-friendly manufacturing standards.
Constructed for PCB mounting with plastic sealed design for environmental protection. Robust silver alloy contacts provide reliable switching at 10A. Wide operational temperature from -40°C to 85°C suitable for industrial use.
Low coil power of 290 mW enhances overall efficiency. Compact outline dimensions allow for versatile PCB integration. Meets RoHS standards for environmental safety. Ideal for automation, control, and electronic switching applications.
This power relay is suited for electronics manufacturing, industrial automation, signal conditioning, power control, and HVAC systems. Explore more options in Power Relays and related electrical components at EnvMart for high quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 10A.
The coil voltage for this relay is 12V DC.
The relay has compact outline dimensions of 28.5 x 10.1 x 12.5 mm.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay operates within a temperature range of -40°C to 85°C.
The coil resistance is 620 ohms.
It provides a dielectric strength of 5 kV between the coil and contacts.
The contacts are made of silver alloy, which contributes to reliability.
Yes, this relay is RoHS compliant, adhering to environmental safety standards.
The coil power consumption is 290 mW.
It uses PCB pin terminals for mounting.
This relay is suitable for electronics manufacturing, industrial automation, signal conditioning, power control, and HVAC systems.
