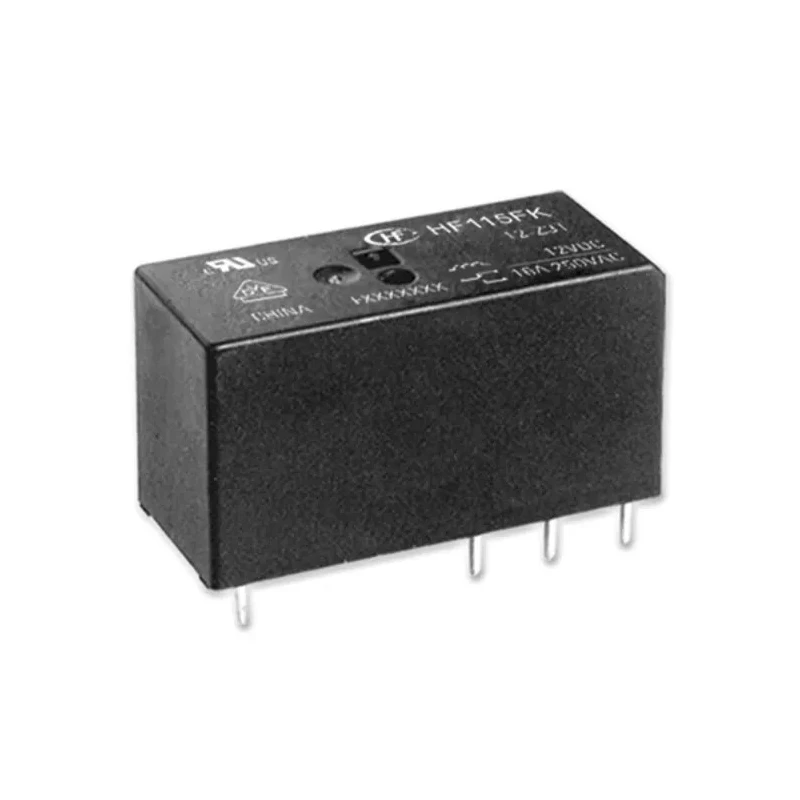

Hongfa Europe GMBH PCB Power Relay, 5V dc Coil Voltage, 10A Switching Current, DPDT HF115FK/5-2Z4T(610)

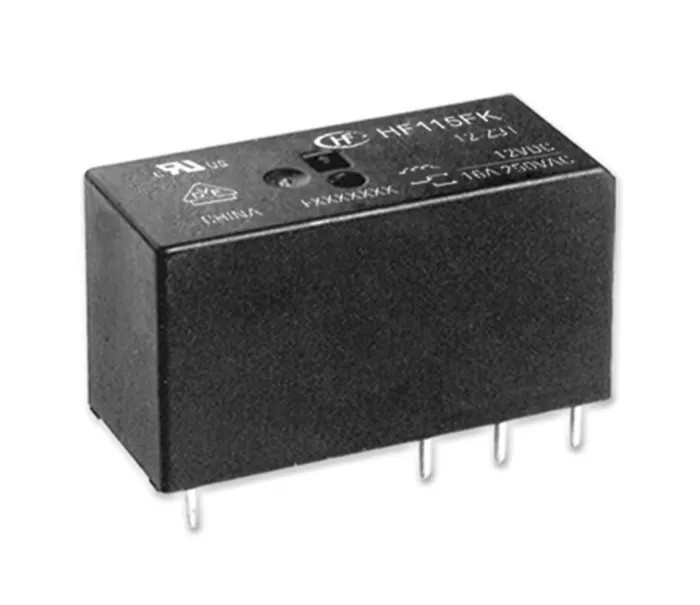

Hongfa Europe GMBH HF115FK/5-2Z4T(610) is a high power, non-latching PCB Power Relay designed for industrial and electronic applications requiring reliable switching performance. It features a coil voltage of 5V DC and a high switching current capacity of 10A with a DPDT (Double Pole Double Throw) contact configuration, making it suitable for intermediate to high power control circuits.

The relay is specifically designed for PCB mount applications, integrating PCB pin terminals for secure and efficient installation. The use of silver alloy contacts provides low contact resistance (100mΩ) and ensures optimal conductivity and durability in switching operations.

Operating reliably within a wide temperature range of -40°C to 85°C, the relay supports switching AC voltages up to 400V AC and offers an isolation voltage of 10KVAC between coil and contacts to enhance electrical safety. The coil resistance measures 62Ω, with coil power consumption of 400mW, contributing to its efficient operation.

Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height enable integration into space-sensitive electronic assemblies. Designed for flux proofing and compliance with RoHS standards, this relay aligns with modern environmental and safety requirements.

Commonly used in automotive, industrial automation, control devices, and other electronic control systems, the HF115FK/5-2Z4T(610) relay ensures reliable switching performance under both DC and AC loads.

Equipped with a 5V DC coil voltage for reliable actuation. Double Pole Double Throw (DPDT) contact configuration for versatile switching. High switching current capacity of up to 10A for demanding applications. Compact design suitable for PCB mounting with PCB pin terminals.

Silver alloy contact material ensures durability and low contact resistance. Operating temperature range from -40°C to 85°C for broad environmental tolerance. Switching AC voltage capability up to 400V AC. Isolation voltage of 10KVAC between coil and contacts for safety.

Relay dimensions: length 29mm, width 12.7mm, height 15.7mm. Compliant with RoHS standards, flux proofed and environmentally friendly.

This product is ideal for industrial, automotive, and automation sectors where precise and reliable relay control is critical. The relay supports the design of efficient PCB-based control circuits requiring compact, robust, and environmentally responsible components.
