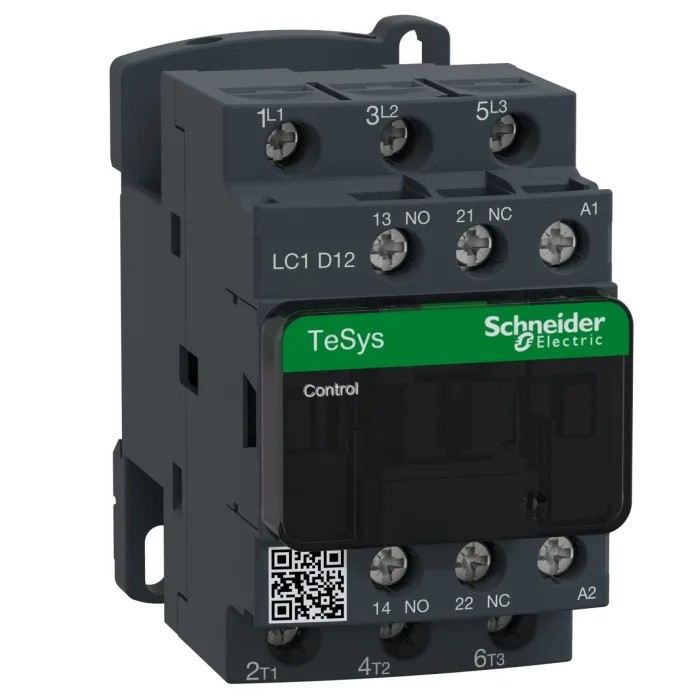

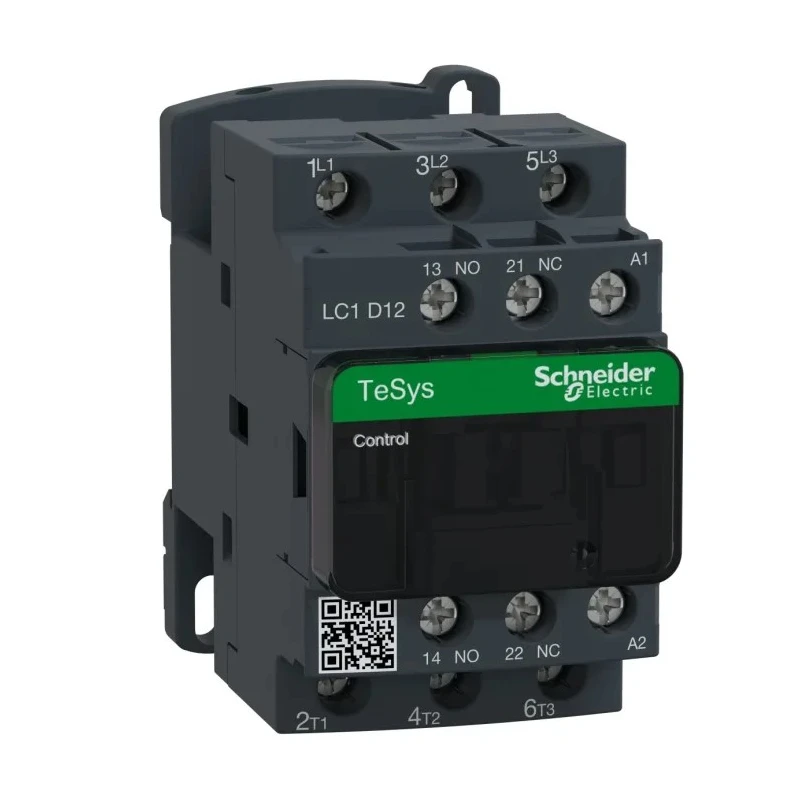

Schneider Electric 3-Pole Contactor, 12 A, 5.5 kW, 24V AC Coil, 690V AC LC1D
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, EAC, CCC, UL, RoHS, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| 3 pole contactor,5.5kW 12A 24Vac coilBrand | Telemecanique |
Key Features
- This contactor is designed for motor control and resistive load applications.
- Features a 3-pole configuration with 3 normally open contacts.
- Supports a contact voltage of up to 690V AC and a power rating of 5.5 kW.
- Equipped with 2 auxiliary contacts configured as 1 NO and 1 NC for additional control functions.

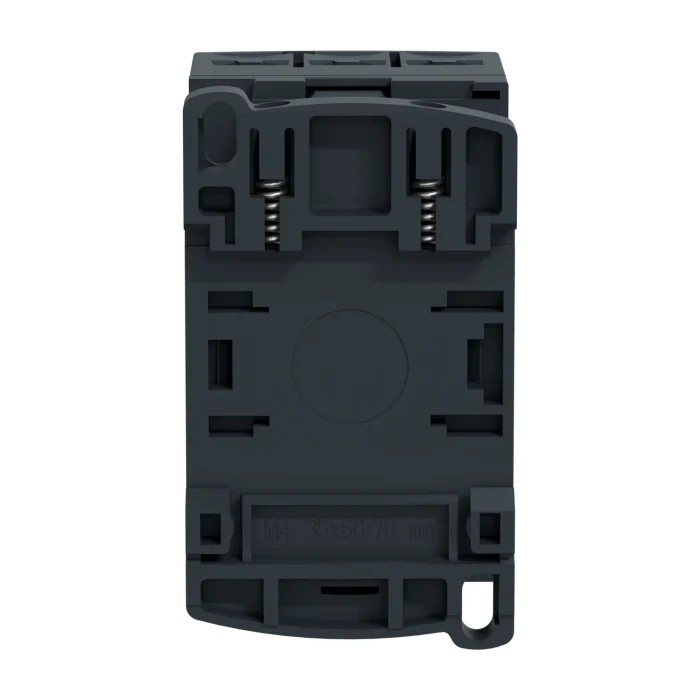

- DIN Rail mount type facilitates easy installation in control panels.
- Designed for efficient operation with a minimum temperature of -40°C and a maximum temperature of 60°C.
- Screw-terminal type ensures secure and reliable wiring connections.
- Compact dimensions of 77mm length, 45mm width, and 86mm depth optimize panel space.
Product Description
Schneider Electric LC1D12B7 is a 3-pole contactor designed for robust motor control and resistive load applications in industrial environments. It features a 24 V AC coil voltage and an operational current rating of 12 A, supporting power up to 5.5 kW. This contactor operates at a contact voltage of 690 V AC, providing reliable switching for equipment requiring high voltage handling.
The device includes three normally open contacts (3 NO) and two auxiliary contacts configured as one normally open (NO) and one normally closed (NC), allowing versatile control circuit design. The screw terminal type ensures a safe and secure electrical connection.
Mounting is facilitated via DIN rail, common in industrial control panels, enabling efficient space management and ease of integration. The contactor is designed to operate under harsh conditions, with a temperature range from -40 °C up to 60 °C.
Its dimensions are 77 mm in length, 45 mm in width, and 86 mm in depth, making it suitable for compact panel assemblies. Schneider Electric has ensured the contactor meets numerous global safety and environmental standards, including CSA, EAC, CCC, UL, RoHS, and IEC, reflecting its quality and compliances.
This product is recognized under Schneider Electric’s LC1D series, representing durable quality and operational safety. Manufactured in France, it embodies European industrial manufacturing standards.
This contactor is suitable for industrial motor control and resistive load switching applications. It is appropriate for use in automation equipment, HVAC systems, and manufacturing machinery requiring controlled power switching.
Designed for control systems needing reliable switching under varying temperature conditions. Its compact size and DIN rail mounting enable easy panel integration with existing equipment. Compliance with multiple international certifications guarantees safe and environmentally responsible operation.
Explore the extensive range of Schneider Electric products and high-quality Contactors on EnvMart for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a power rating of 5.5 kW.
It can handle a maximum contact voltage of 690V AC.
The operational current rating is 12 A.
This model uses a 24V AC coil voltage.
It features a 3-pole configuration with 3 normally open contacts.
The dimensions are 77 mm in length, 45 mm in width, and 86 mm in depth.
It operates within a temperature range of -40°C to 60°C.
This model supports DIN rail mounting for easy installation.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It meets several standards including CSA, EAC, CCC, UL, RoHS, and IEC.
It is designed for motor control and resistive load applications in industrial environments.
It features screw terminal connections for secure wiring.
