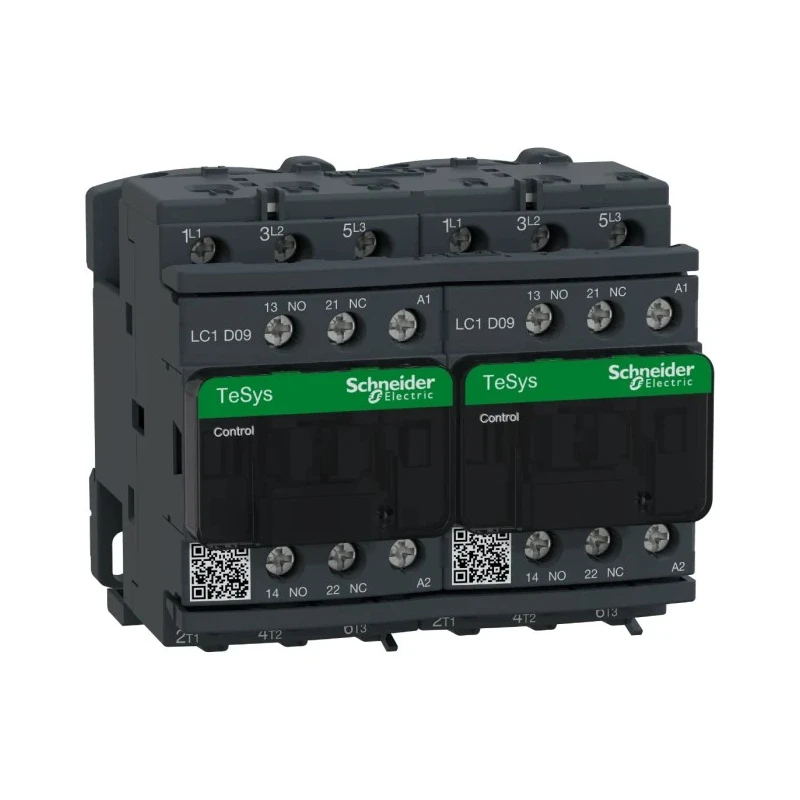

Schneider Electric TeSyS D Contactor 3-Pole 9A 4kW 24V AC Coil LC2D09B7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 82.5mm |
| Model | LC2D09B7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates with a 24V AC coil suitable for 50/60Hz power supply.
- Supports contact voltage up to 690V AC and power rating of 4kW at 400V.
- Includes 3 normally open contacts and 2 auxiliary contacts configured as 2 NO and 2 NC.
- Designed for mounting on DIN rail with screw clamp terminals for secure connection.
- Compact design with dimensions of 90mm width, 86mm depth, and 82.5mm length.
- Mechanical interlock and pre-wired reversing power busbar for safe operation.
- High electrical durability for up to 2 million cycles at full operational current.
- Operational temperature range from -5°C to 60°C ensuring reliability in various environments.
Product Description
Schneider Electric LC2D09B7 TeSyS D Contactor is a reliable 3-pole motor control contactor rated for 9A at 690V AC and a power rating of 4kW at 400V. It features a 24V AC coil compatible with 50/60Hz supply, making it suitable for various industrial motor control and resistive load applications.
This contactor includes three normally open (3 NO) main contacts and four built-in auxiliary contacts (2 NO + 2 NC), with NC contacts mirror certified for safety system controls. The design comprises screw clamp terminals that are finger-safe (IP20) with marking standards for North America and International use.
The compact unit mounts on DIN rails or can be fixed by screws, with a robust mechanical interlock and pre-wired reversing power circuit ensuring safe motor reversing operations without electrical interlocking. Dimensions are 90mm width, 86mm depth, and 82.5mm length, ideal for efficient panel space usage.
Schneider Electric assures a high electrical durability with up to 2 million operational cycles rated at full load current, suitable for demanding industrial environments. The contactor supports operating temperatures from -5°C to +60°C and complies with multiple international certifications and safety standards including IEC, UL, CSA, CCC, EAC, and RoHS, ensuring global compliance and environmental sustainability.
This product is designed and manufactured in France and is part of the TeSyS D series known for its advanced motor control and reversing capabilities, making it ideal for use in industrial automation, HVAC systems, manufacturing plants, and commercial motor control applications.
Operates with a reliable 24V AC coil supporting 50/60Hz power supply. Includes auxiliary contacts for enhanced switching capability. Mechanical interlock and pre-wired reversing busbar for motor control safety. Compact and robust DIN rail mounting design for easy installation.
High operational durability rated for 2 million cycles at full current load. Meets international standards and certifications for global industrial use. Wide operating temperature range with finger-safe screw terminals. Designed for motor control and resistive load applications across industries.
Manufactured in France with sustainability and reliability focus. Explore a wide range of Schneider Electric products and related Contactors on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D09B7 contactor has a power rating of 4kW at 400V.
This model has dimensions of 90mm in width, 86mm in depth, and 82.5mm in length.
The coil voltage for the TeSys D contactor is 24V AC.
The LC2D09B7 contactor includes three normally open contacts and two auxiliary contacts configured as 2 normally open and 2 normally closed.
The maximum operating temperature for this contactor is 60°C.
This unit is designed for mounting on DIN rail and can also be fixed by screws.
The contact voltage rating for the LC2D09B7 is up to 690V AC.
The operational current rating of this contactor is 9A.
The LC2D09B7 complies with multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS.
This contactor is suitable for motor control, resistive load applications, and is used in various industrial settings such as HVAC systems and manufacturing plants.
The electrical durability of the LC2D09B7 is rated for up to 2 million operational cycles at full load current.
This model features IP20 finger-safe screw terminals with both North American and International terminal markings.
