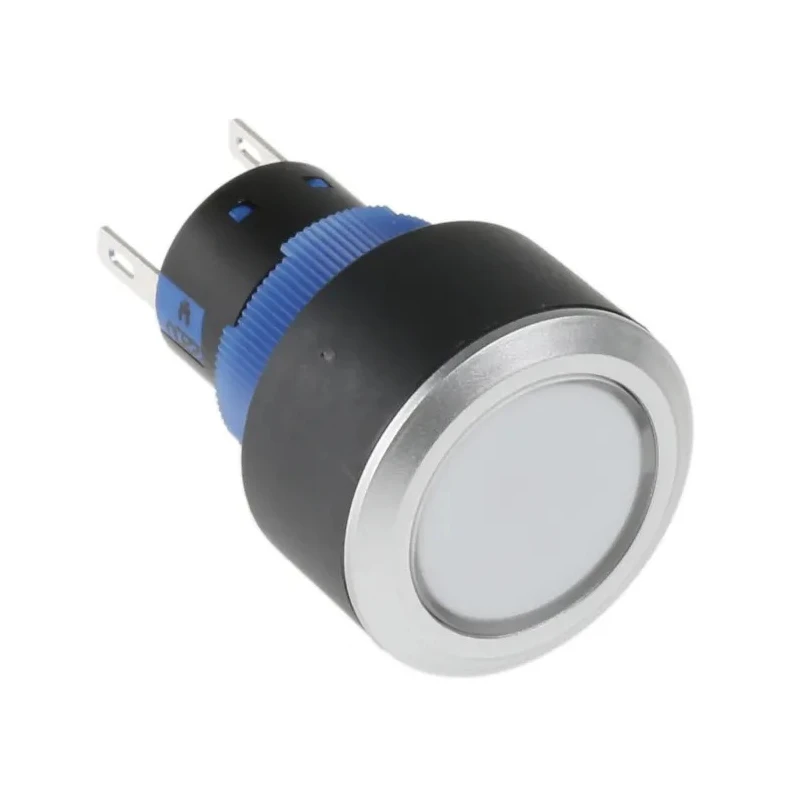

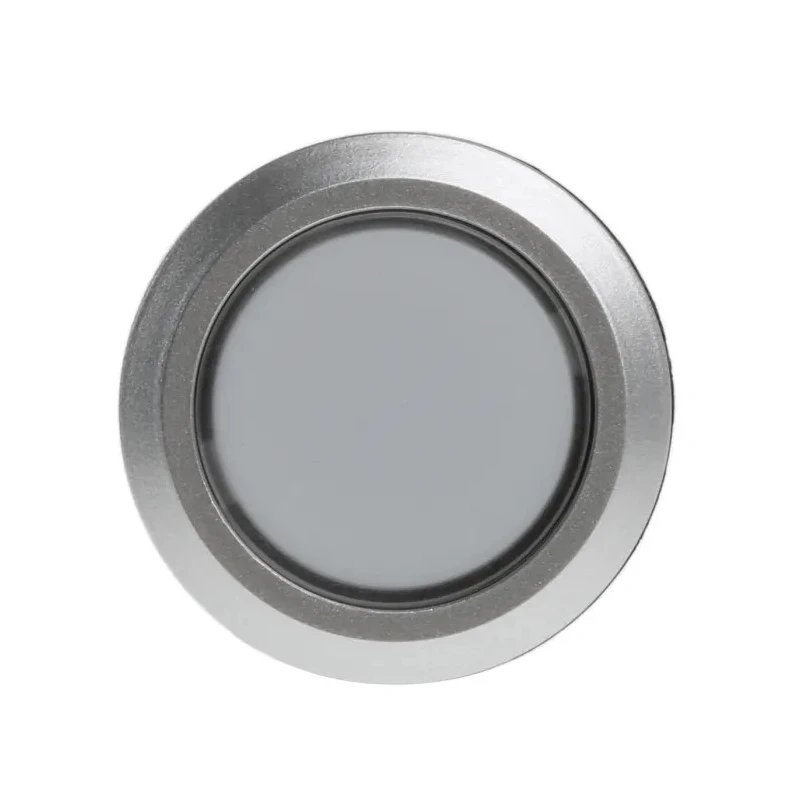

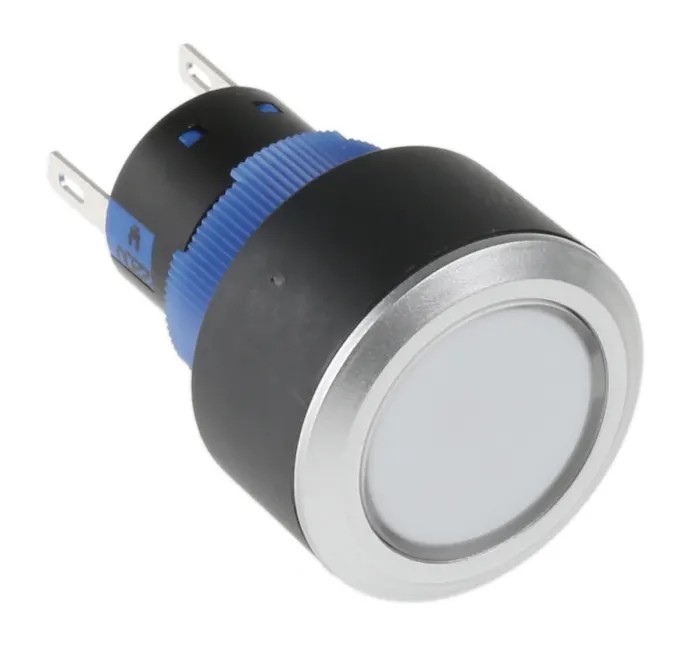

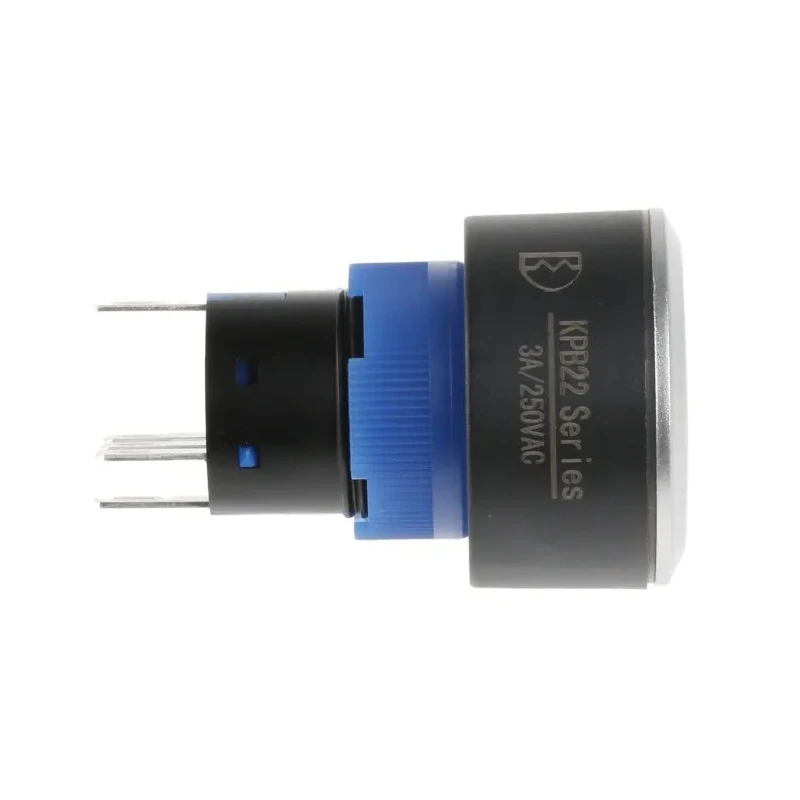

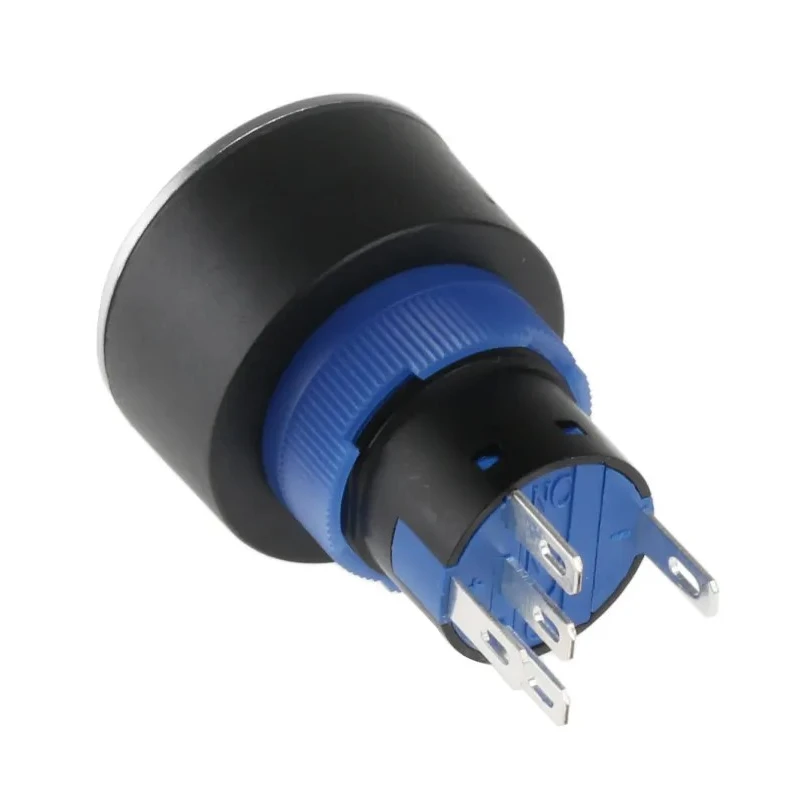

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, SPDT, White LED, IP65, 36 V dc, 5A, 22.2 mm Cutout KPB22

Name: RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, SPDT, White LED, IP65, 36 V dc, 5A, 22.2 mm Cutout KPB22
Brand: RS PRO
SKU: 97081
Price: 1053.95 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	KPB22
IP Rating	IP65
Mount Type	Panel
Series	KPB22
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-35°C
Panel Cutout Size	22.2 mm
Terminal type	Solder
Standards/Approvals	RS
LED Colour	White
Switch Operation	Momentary
Contact DC Voltage	36V dc
Actuator Style	Flat
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

This push button switch has a 22.2 mm panel cutout size for easy installation.
It features a flat actuator style with a lightweight plastic cover and silver metal cap.
Designed for momentary operation suitable for various control systems.
Operates under a wide temperature range from -35°C to 70°C with reliable RS approvals.
The switch supports 36 V dc contact DC voltage and 250 V AC contact voltage with 5A switch contact current.
It is ideal for communication equipment, automation, industrial and office equipment applications.
Contact terminals are solder type for secure electrical connection.

Product Description

RS PRO KPB22 series illuminated push button switch is a reliable momentary switch designed for panel mounting with a 22.2 mm cutout. It features a Single Pole Double Throw (SPDT) contact configuration combined with a clear actuator and white LED illumination, providing visual status indication. The switch carries an IP65 rating, ensuring dust tightness and protection against water jets, suitable for harsh industrial and commercial environments.

The push button offers a flat actuator style with a lightweight plastic cover that includes a carved pattern for enhanced grip and aesthetic appeal. The silver metal cap with the embedded LED light ensures durability and visibility. It supports electrical parameters of 36 V dc contact voltage and 250 V ac contact voltage with a maximum contact current rating of 5 Amps, thereby meeting many standard electrical control requirements.

Operating temperature ranges from -35°C to 70°C enabling functionality in diverse environmental conditions. The switch is compliant with RS approvals, assuring industry-standard quality and safety.

This push button switch is suitable for use in a range of industrial and automation applications including communication devices, wireless equipment, electronic measuring instruments, office equipment, and general industrial machinery. The solder-type terminal offers secure connection and easy integration into panels and control boards.

This KPB22 switch set includes a Single Pole Double Throw illuminated push button with a 22.2 mm panel cutout. LED color is white, providing clear indication in operating conditions. Rated IP65 for water and dust resistance suitable for demanding environments.

Momentary switch operation for on-demand activation. Capable of switching 5A current with 36V dc and 250V ac contact voltages. Wide operating temperature range from -35°C to 70°C ensures reliability. Ideal for industrial automation, communication equipment, and other electrical controls.
