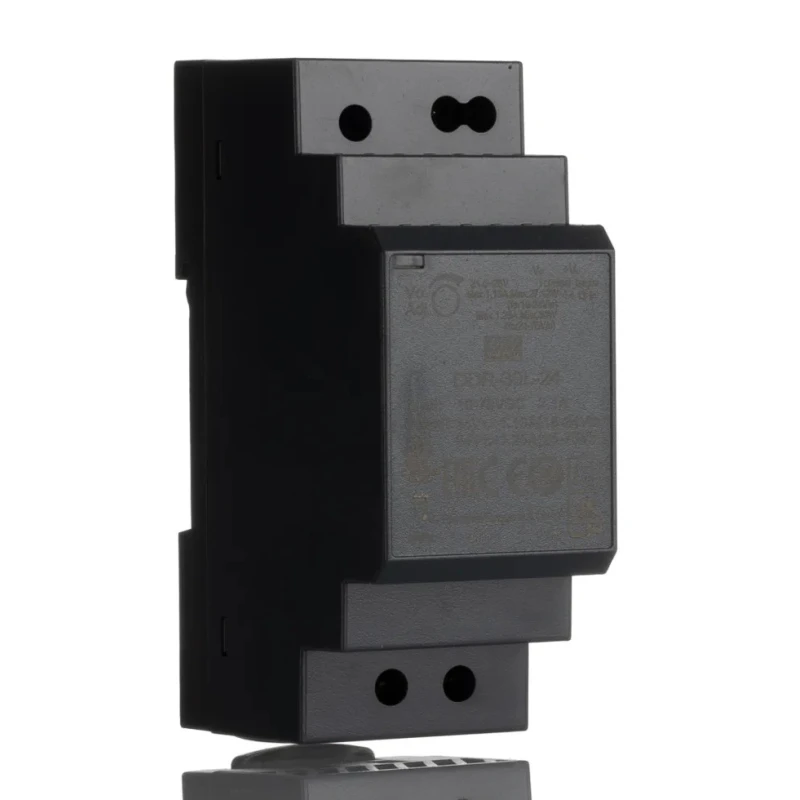

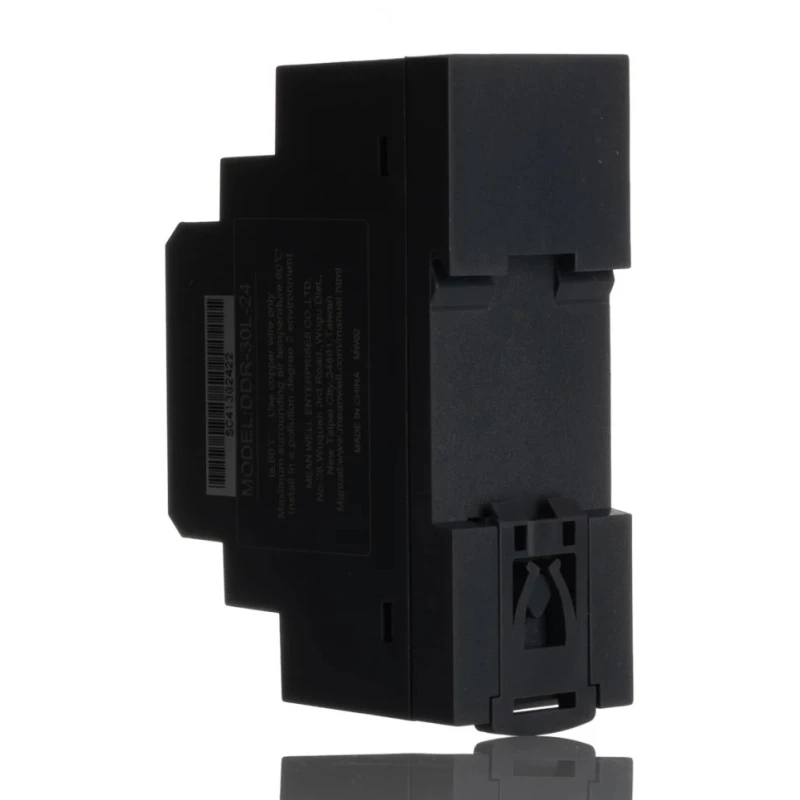

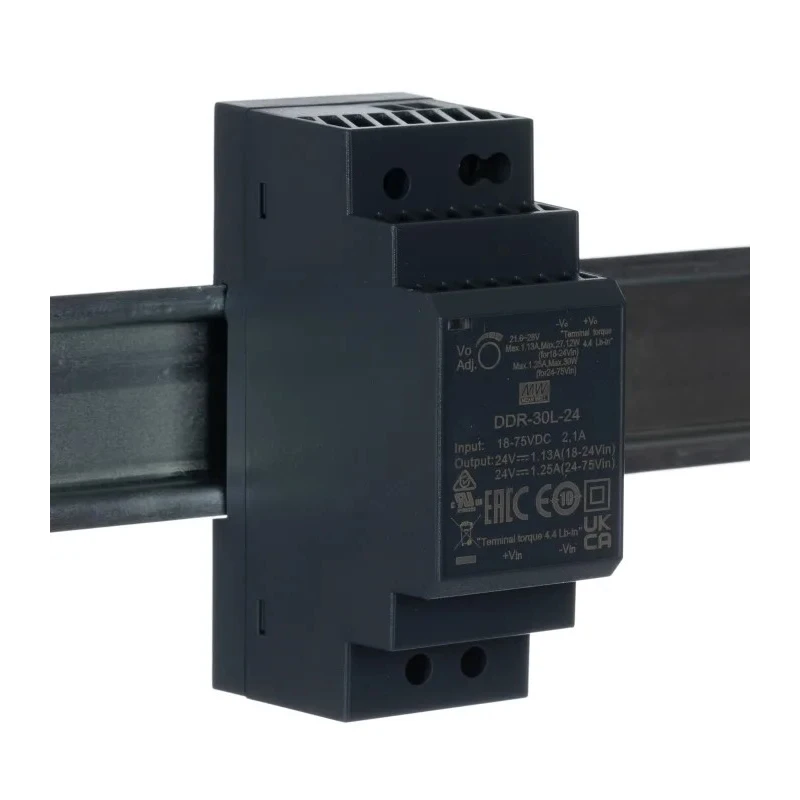

MEAN WELL DDR-30L-24 DC/DC Converter 24V DC Output 18-75V DC Input 30W 6A DIN Rail Mount DDR-30L-24
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL DDR-30 DC/DC Converter, 24V dc/, 75V dc |
| Brand | MEAN WELL |
| Efficiency | 91% |
| Length | 9mm |
| Model | DDR-30L-24 |
| Depth | 54.5mm |
| Gross Weight | 120g |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | DDR-30 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | 40°C |
| MTBF | 483.3kH |
| Number of outputs | 1 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 75V dc |
| Protections | Short circuit / Overload / Over Voltage Input reverse polarity |
| Minimum Input Voltage | 18V dc |
| Number of Pins | 4 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 6A |
| Output Voltage Adjustment Range | 21.6/28 V |
Key Features
- Ultra-wide input voltage range from 18V to 75V DC supports various power sources.
- DIN rail mounting allows convenient installation in control panels.
- Includes overcurrent, overload, input under voltage, and reverse polarity protections.
- High efficiency of approximately 91% reduces energy loss during operation.
- Operating temperature range from -40°C to +85°C suitable for harsh environments.
- Compact and slim design with 35mm width (2SU) optimizes panel space.
- Reinforced 4kV DC input/output isolation ensures electrical safety.
- Adjustable output voltage range between 21.6V and 28V offers flexibility for different loads.
Product Description
MEAN WELL DDR-30L-24 is a high-performance DIN rail mounted DC/DC converter delivering a stable 24V DC output at up to 6A continuous current and 30W maximum output power. Designed for industrial and electronic applications, this converter handles a wide input voltage range from 18V to 75V DC, making it compatible with various battery and supply systems.
The product features a compact form factor with a slim 35mm width (equivalent to 2 standard units), enabling easy integration inside control panels and electrical enclosures. It supports free air convection cooling and does not require a minimum load to maintain stable output.
Its robust protections include short circuit, overload, overvoltage, input reverse polarity, and input undervoltage safeguard functions, enhancing operational safety and equipment longevity. The device provides reinforced isolation of 4kV DC between input and output, ensuring electrical safety and noise immunity in industrial environments.
Performance is optimized with a high efficiency of approximately 91% and low output ripple noise of 100mV, suitable for sensitive instrumentation and control electronics. The wide operating temperature range from -40°C to +85°C allows use in harsh and demanding environments. The output voltage is adjustable from 21.6V to 28V to accommodate varying system requirements.
This DC/DC converter complies with multiple international standards including EN55024, IEC 62368-1, UL508, and others, highlighting its design quality and electromagnetic compatibility. The Mean Well DDR-30L-24 comes with a 3-year warranty, affirming its reliability for industrial, manufacturing, water treatment, and automation applications.
Ultra-wide input voltage range 18-75V DC. 30W output power at 6A and 24V DC nominal output. DIN rail TS-35/7.5 or 15 compatible mounting. Comprehensive electrical protections and 4kV reinforced isolation. Compact 35mm width with free convection cooling.
Efficient, low noise, and adjustable output voltage. Wide operating temperature from -40°C to +85°C. Meets multiple international approval standards. Ideal for industrial power supply and automation control systems. 3-year warranty for industrial assurance.
Explore MEAN WELL DC-DC Converters and other power supply solutions in EnvMart's Electronics & Electricals category for reliable industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DDR-30L-24 operates with an input voltage range from 18V to 75V DC.
This model provides a maximum output power of 30W at a nominal output of 24V DC.
The dimensions of this unit are 35mm in width, 54.5mm in depth, and 9mm in length.
It has an efficiency rating of approximately 91%, which helps reduce energy loss during operation.
The DDR-30L-24 includes protections against short circuit, overload, overvoltage, input reverse polarity, and input undervoltage.
The output voltage can be adjusted between 21.6V and 28V to accommodate different load requirements.
This converter operates within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
It is designed for DIN rail mounting, compatible with TS-35/7.5 or 15 standards.
The gross weight of this unit is 120g.
This model features one output, providing a stable 24V DC supply.
The output ripple and noise is specified at 100mV, suitable for sensitive applications.
It complies with multiple international standards including EN55024, IEC 62368-1, and UL508.
