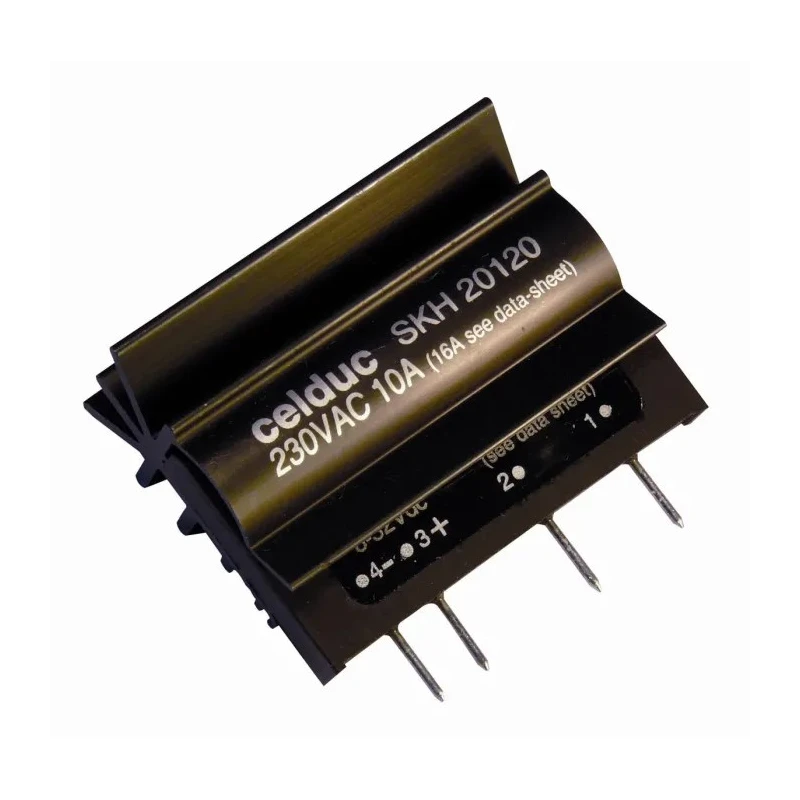

Celduc SKH20120 Series Solid State Relay, 16 A Load, Printed Circuit Board Mount, 280 V Load, 32V Control SKH20120

Celduc SKH20120 Series Solid State Relay offers an advanced solution for printed circuit board mounting applications, supporting a robust maximum load current of 16 A and load voltages up to 280 V. Its control voltage inputs range from 8 V to 32 V, allowing precise switching control across industrial automation settings.

Featuring zero cross switching technology, this relay minimizes electrical interference and enhances operational stability, making it ideal for use in heating installations, incandescent lamps, and motor control circuits. The solder pin terminal design ensures firm and reliable PCB installation.

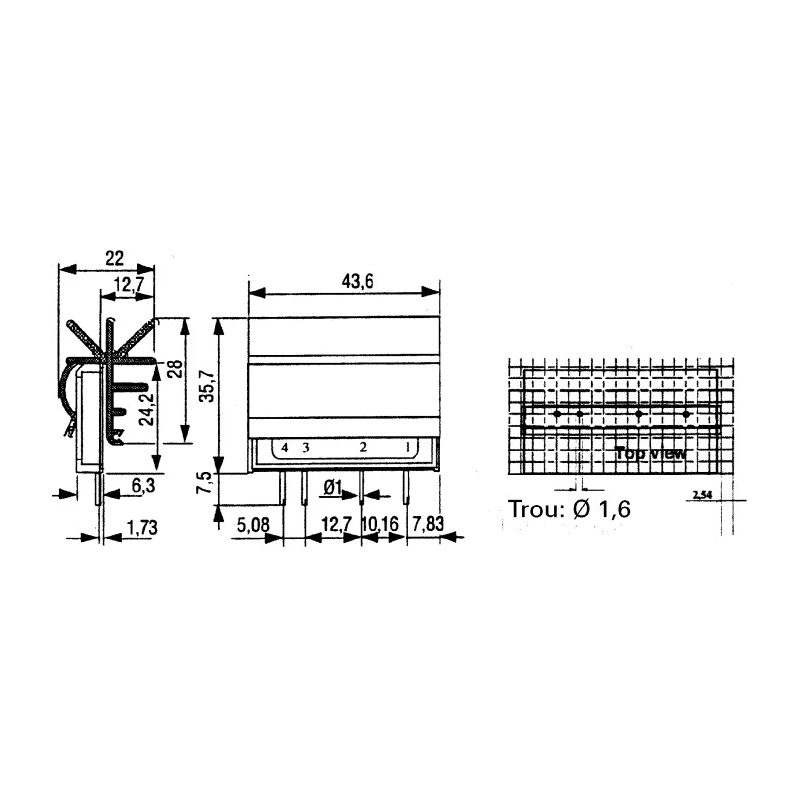

Engineered for durability, the SKH20120 operates within a broad temperature range of -40°C to 80°C and maintains an IP20 protection rating against dust and solid ingress. The compact form factor (43.6 mm x 22 mm x 35.7 mm) facilitates space-efficient integration in densely packed electronic assemblies.

The low off state leakage current of 1 mA contributes to energy savings and reduced heat dissipation. Compliance with EN60947-4-x and 5-1 standards underscores product reliability and safety, with UL certification pending.

This solid state relay is manufactured in France, ensuring adherence to stringent quality controls and European manufacturing standards. Supports a maximum load current of 16 amperes for heavy-duty switching. Operates with load voltages ranging from 12 V minimum to 280 V maximum.

Control voltage ranges from 8 V minimum to 32 V maximum for flexible input control. Features zero cross switching for reduced electrical noise and high reliability. Equipped with solder pin terminals for secure PCB mounting.

Maintains IP20 protection rating to safeguard against solid objects larger than 12 mm. Suitable for operating temperatures from -40°C to a maximum of 80°C. Compact dimensions of 43.6 mm length, 22 mm width, and 35.7 mm height.

Features very low off state leakage current of 1 mA enhancing energy efficiency. Complies with standards EN60947-4-x and 5-1, with UL approval pending.

This product is ideally suited for industrial, automation, electrical, and manufacturing applications requiring reliable and efficient solid state switching. Explore more Solid State Relays and related components within the Electronics & Electricals category on EnvMart.
