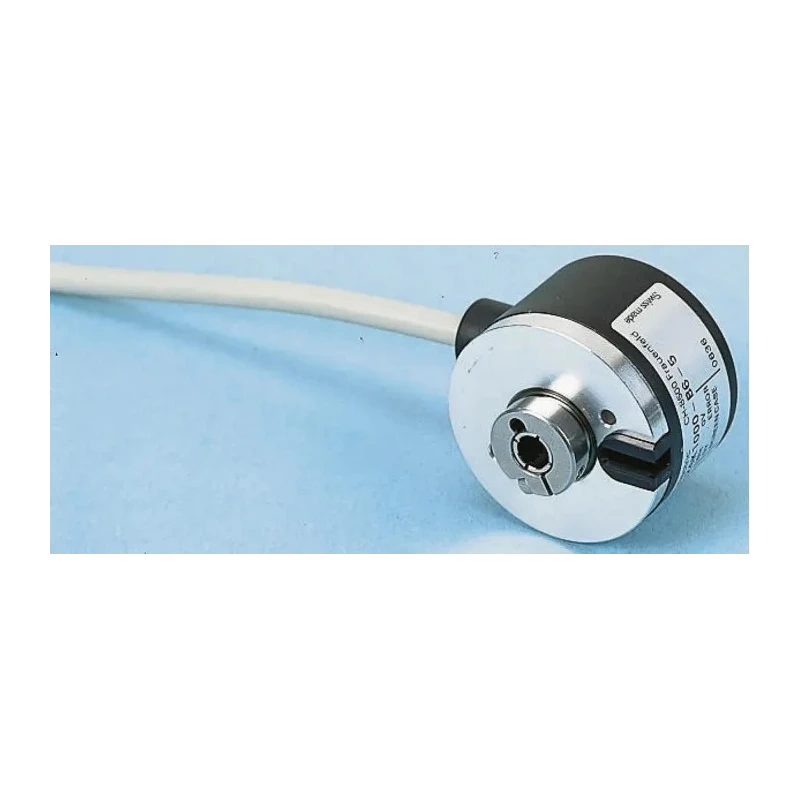

Baumer BHK Series Optical Incremental Encoder 30V dc, 1000 ppr, HTL/Push Pull Signal, Hollow Type, 6 mm BHK 16.24K1000-B6-5
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Model | BHK 16.24K1000-B6-5 |
| IP Rating | IP42 |
| Mount Type | Flange |
| Series | BHK |
| Overall Width | 40mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 6mm |
| Switching Frequency | 100kHz |
| Shaft Type | Hollow |
| Terminal type | 1 m Cable |
| Interface Type | Push Pull |
| Pulses per Revolution | 1000ppr |
| Standards/Approvals | EN |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 39mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | HTL/Push Pull |
Key Features
- This encoder features an optical technology ensuring accurate and reliable signal generation.
- It provides a HTL/Push Pull output signal with a hollow 6 mm shaft for flexible mounting options.
- The unit supports a maximum revolution speed of 12000 rpm with switching frequency up to 100 kHz.
- Its compact design includes a flange mount type and a robust plastic housing with aluminium flange.
- Designed to operate in a wide temperature range from -20°C to 85°C, suitable for industrial environments.
- The encoder comes with a 1 meter cable for connection and an IP42 rating for basic protection against dust and moisture.
- Produced in Switzerland, this BHK series encoder adheres to EN standards ensuring quality and performance reliability.
Product Description
The Baumer BHK 16.24K1000-B6-5 is a precision optical incremental encoder engineered for demanding motion control applications. Operating at 30V dc with a 1000 pulses per revolution (ppr), it provides accurate position sensing and speed measurement essential for automation and control systems.
This encoder utilizes advanced optical technology to generate HTL/Push Pull signals, offering robust signal integrity and immunity to noise. Its hollow shaft design with a 6 mm diameter allows easy integration into machinery, complemented by a 1 meter cable terminating its output.
The compact housing includes a durable plastic body with an aluminium flange mount, facilitating reliable mounting and durability under typical industrial conditions. It can endure operational temperatures from -20°C to +85°C, suitable for a variety of environment extremes.
With maximum rotational speeds reaching 12000 rpm and a switching frequency of 100 kHz, this encoder supports high-speed applications requiring fast and accurate feedback. The IP42 ingress protection provides basic safeguards against dust and moisture, ideal for indoor industrial installations.
Manufactured in Switzerland, the Baumer BHK series adheres to European EN standards, assuring high product quality and longevity. Its protective features include short-circuit protection and signal inversion capabilities enhancing system robustness.
This encoder features optical technology for precise incremental sensing. Push Pull HTL output signals ensure noise resistant communication. Hollow shaft with 6 mm diameter enables easy mechanical integration. Flange mounting facilitates straightforward and secure installation.
Designed and manufactured to withstand temperatures from -20°C to 85°C. IP42-rated for dust and moisture protection suitable for industrial settings. Supports rotational speeds up to 12000 rpm and frequency switching of 100 kHz.
Includes a 1 meter cable for flexible connectivity.
This Baumer encoder is suitable for use in industrial automation, robotics, HVAC control, manufacturing machinery, and laboratory instrumentation. Its reliable performance enhances precision and control in motion sensing applications.
Explore more sensors and encoders from Baumer and enhance your automation solutions with high-quality motion control components available on EnvMart.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder supports a maximum rotational speed of 12000 rpm.
It provides an HTL/Push Pull output signal, ensuring robust signal integrity.
This encoder operates within a temperature range of -20°C to +85°C.
The encoder has a resolution of 1000 pulses per revolution (ppr).
The encoder features a hollow shaft with a diameter of 6 mm.
It has an IP42 rating, providing basic protection against dust and moisture.
This model is designed for flange mounting, facilitating straightforward installation.
The encoder comes with a 1 meter cable for connection.
It adheres to European EN standards, ensuring quality and performance reliability.
The encoder features a durable plastic body with an aluminum flange.
The maximum switching frequency for this encoder is 100 kHz.
This encoder is manufactured in Switzerland.
