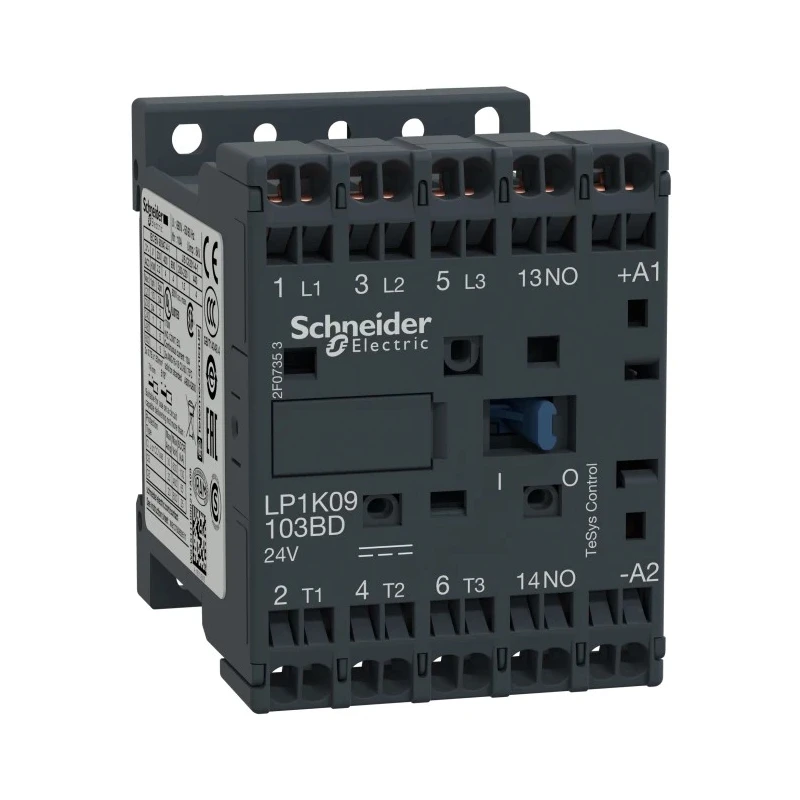

Schneider Electric TeSyS K 3-Pole Contactor 24V DC Coil, 9A, 4kW, 690V AC LP1K09103BD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LP1K09103BD |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Operates at a coil voltage of 24V DC ensuring efficient control.
- Supports a contact current of 9A suitable for motors up to 4kW power rating.
- Features 3 poles with 3 normally open (NO) contacts for reliable switching.
- Compact DIN rail mount design with dimensions 58mm length, 57mm depth, and 45mm width.
- Includes 1 normally open auxiliary contact with cage clamp terminals for secure wiring.
- Certified to international standards including IEC, UL, CSA, and RoHS ensuring safety and compliance.
- Designed for use within a temperature operating range of -25°C to 50°C.
- Suitable for motor control and resistive load applications with 690V AC contact voltage.
Product Description
Schneider Electric LP1K09103BD is a high-performance 3-pole TeSyS K contactor featuring a 24V DC coil, ideal for motor control and resistive load applications. It supports a contact voltage up to 690V AC and an operational current of 9A, making it suitable for motors rated up to 4kW at 400V AC.
This compact contactor is designed for DIN rail mounting, measuring 58mm in length, 57mm in depth, and 45mm in width, making it easy to integrate into control panels. The device includes 1 normally open auxiliary contact with cage clamp terminals, ensuring secure and reliable electrical connections.
Designed to endure harsh industrial environments, it operates efficiently in temperatures ranging from -25°C to 50°C. The contactor meets multiple international standards such as IEC, UL, CSA, CCC, and RoHS, ensuring safety, environmental compliance, and superior build quality.
The Spring terminal type provides fast and consistent wiring, while the contactor's functionality supports motor control and resistive load applications. Its 3 NO contact configuration allows for reliable power switching within industrial automation systems and electrical control gear.
Manufactured in France, the Schneider Electric LP1K09103BD is optimized for performance, longevity, and easy maintenance. It is ideal for use in diverse industrial sectors including manufacturing, automation, HVAC, and other applications requiring compact and dependable contactors.
Operates at a coil voltage of 24V DC ensuring efficient control. Supports a contact current of 9A suitable for motors up to 4kW power rating. Features 3 poles with 3 normally open (NO) contacts for reliable switching. Compact DIN rail mount design with dimensions 58mm length, 57mm depth, and 45mm width.
Includes 1 normally open auxiliary contact with cage clamp terminals for secure wiring. Certified to international standards including IEC, UL, CSA, and RoHS ensuring safety and compliance. Designed for use within a temperature operating range of -25°C to 50°C.
Suitable for motor control and resistive load applications with 690V AC contact voltage. Provides easy integration with Spring terminal type connections for quick installation. Manufactured in France, adhering to high quality and environmental standards.
Explore more Schneider Electric Contactors and automation components on EnvMart for high reliability and performance in your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24V DC, ensuring efficient control for motor applications.
This model supports a maximum contact current of 9A, making it suitable for various applications.
It is suitable for motors rated up to 4kW at 400V AC, allowing for effective motor control.
The contact voltage rating of this unit is 690V AC, which is suitable for industrial applications.
This contactor features 3 poles, each with a normally open (NO) configuration for reliable switching.
The dimensions of this model are 58mm in length, 57mm in depth, and 45mm in width, designed for compact installations.
It is designed for DIN rail mounting, facilitating easy integration into control panels.
The operational temperature range is between -25°C to 50°C, allowing it to function in various environments.
Yes, it includes 1 normally open auxiliary contact with cage clamp terminals for secure wiring.
It is certified to multiple international standards including IEC, UL, CSA, and RoHS, ensuring compliance and safety.
This model is suitable for motor control and resistive load applications, making it versatile for industrial use.
This contactor is manufactured in France, adhering to high quality and environmental standards.
