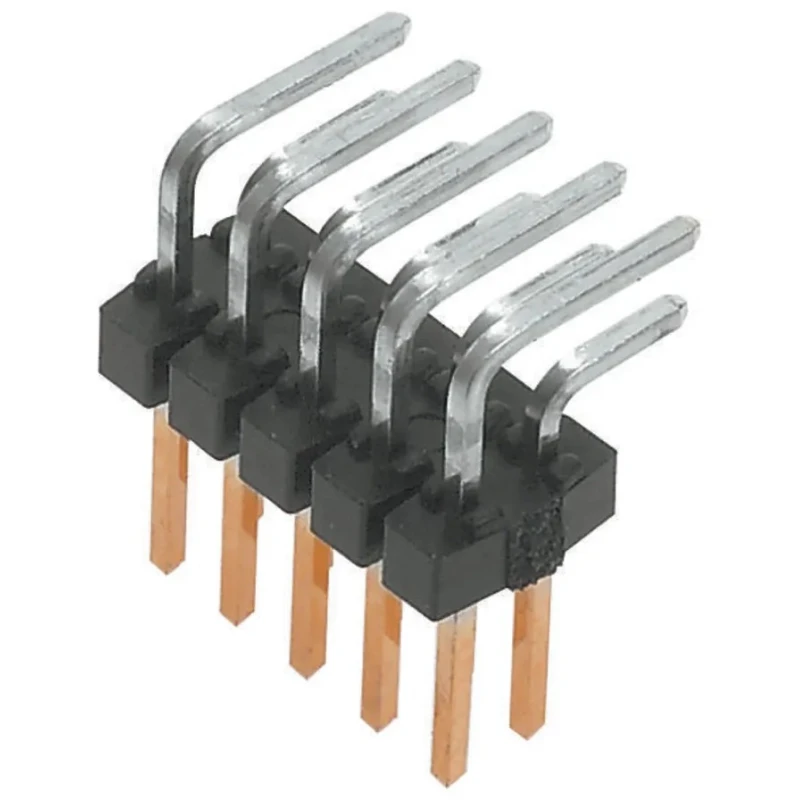

Molex C-Grid III Series Right Angle Through Hole Pin Header 8 Contacts 2.54 mm Pitch 2 Row Unshrouded 90122-0764

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Right Angle Through Hole Pin Header 8 Contacts 2.54 mm Pitch 2 Row Unshrouded 90122-0764

Name: Molex C-Grid III Series Right Angle Through Hole Pin Header 8 Contacts 2.54 mm Pitch 2 Row Unshrouded 90122-0764
Brand: Molex
SKU: 96869
Price: 1.6 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

Designed for board to board and wire to board interconnections.
Features a breakaway design allowing cut-to-size flexibility.
High pin retention force ensures secure mating connections.
Constructed with brass contacts plated with gold for reliability.
Rated for voltages up to 350V and currents up to 3A.
Operating temperature range from -55°C to 125°C supports harsh environments.
Right angle through hole mount style for versatile PCB layout options.
Unshrouded two-row configuration with 2.54 mm row pitch.

Product Description

Molex 90122-0764 C-Grid III Series Right Angle Through Hole Pin Header offers 8 contact points with 2.54 mm pitch and 2 rows in an unshrouded design suitable for a variety of industrial and electronic applications.

This pin header is engineered for both board to board and wire to board connections, providing design flexibility through its breakaway feature that allows the connector to be cut to size as needed. Its pins exhibit high retention force which ensures durable and secure mating connections, critical in demanding industrial environments.

The contacts are made from brass and plated with gold to enhance conductivity and resistance to corrosion, supporting reliable electrical performance. The header mounts through a PCB using a right angle orientation, offering versatile layout options for electronic assembly.

Rated to carry currents up to 3 amperes and voltages up to 350 volts, it is constructed with a polyester housing to maintain mechanical stability once soldered. The device performs reliably across a broad temperature range from -55°C to 125°C, making it suitable for rugged industrial, telecommunications, computer, medical, consumer, and automotive electronics usage.

Designed for board to board and wire to board applications. Includes breakaway feature for customizable connector length. Features high pin retention force for secure connections. Brass contacts with gold plating resist corrosion and enhance conductivity.

Right angle, through hole mount for flexible PCB design. Supports voltages up to 350V and currents up to 3A. Polyester housing ensures mechanical stability and durability. Wide operating temperature range of -55°C to 125°C.

This Molex C-Grid III pin header series is widely used in industrial automation, medical equipment, telecommunications, computing devices, automotive electronics, and consumer appliances. Its proven design supports rigorous performance standards across diverse sectors.
