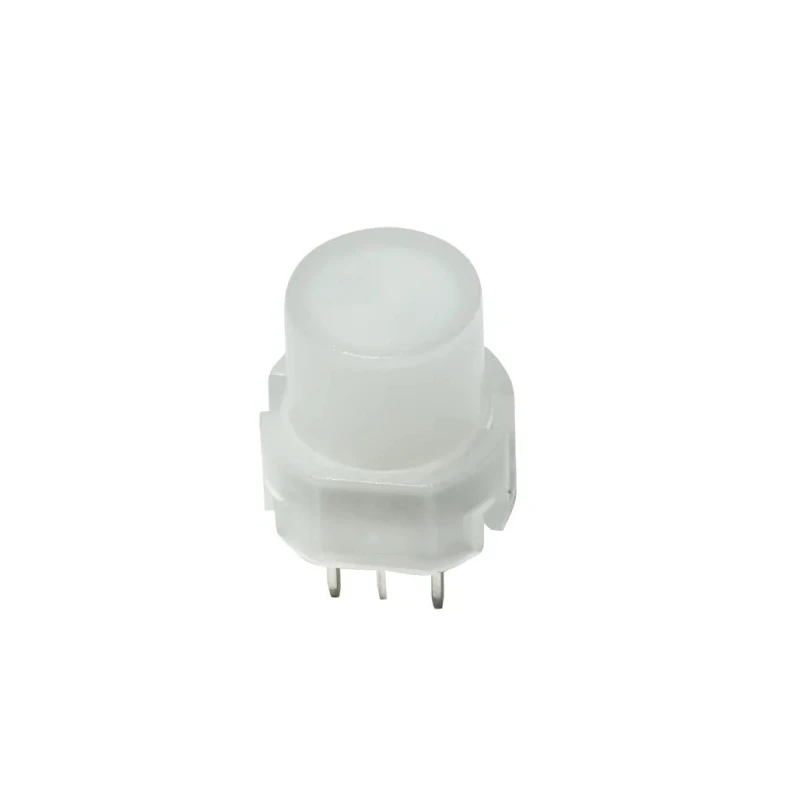

C & K D6 Series Illuminated Momentary Push Button Switch, White Actuator, Through Hole Mount, 11.4 mm Cutout D6RLRDGNF1LFS

Name: C & K D6 Series Illuminated Momentary Push Button Switch, White Actuator, Through Hole Mount, 11.4 mm Cutout D6RLRDGNF1LFS
Brand: C & K
SKU: 170414



Category Push Button Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	D6RLRDGNF1LFS
IP Rating	IP40
Mount Type	Through Hole
Series	D6
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	11.4 mm
Terminal type	PCB Pin
Standards/Approvals	RoHS Compliant
LED Colour	Red, Green
Switch Operation	Momentary
Actuator Colour	White
Contact DC Voltage	35V dc
Actuator Style	Button
Switch Contact Current	10mA
Contact AC Voltage	35V ac

Key Features

The switch provides positive and smooth tactile feedback.
It supports contact voltages up to 35V AC/DC.
LED colors are red and green for clear indication.
The switch operates within a temperature range of -20°C to 85°C.
The IP40 rating ensures protection against solid objects larger than 1mm.
It is RoHS compliant and built for easy PCB mounting with through hole terminals.
Typical applications include video equipment, electronic games, and household appliances.
The compact design allows easy X, Y coding on a single side PCB.

Product Description

C & K D6RLRDGNF1LFS is an illuminated momentary push button switch designed for reliable switching in electrical and electronic applications. It features a white actuator button with a through hole mount and SPST contact configuration. The switch requires an 11.4 mm panel cutout for installation and includes dual LED colors - red and green - for visual status feedback.

Manufactured to withstand operating temperatures from -20°C up to 85°C, this switch is rated IP40, providing protection against ingress of solid objects over 1mm in size. The contact voltage ratings support up to 35V AC and DC, with a contact current capability of 10mA, making it suitable for low current signaling applications.

The switch is RoHS compliant, ensuring environmentally friendly manufacturing and material usage. Its PCB pin terminals and through hole mounting style facilitate secure and easy assembly on printed circuit boards. The tactile response of the switch provides positive feedback for user input confirmation.

Typical industrial uses of the C & K D6 Series switch include video equipment controls, electronic gaming consoles, and household appliances, where reliable momentary switching with illumination is required. The design also supports easy X, Y coding on a single side PCB, enhancing manufacturing efficiency.

The switch offers positive and smooth tactile feedback. Dual LED colors (red and green) provide clear operational status. Compact panel cutout size of 11.4 mm ensures flexible installation. Operating temperature range from -20°C to 85°C accommodates diverse environments.

IP40 ingress protection rating prevents entry of solid objects larger than 1 mm. RoHS compliance guarantees environmentally safe production. Through hole mount and PCB pin terminals enable straightforward PCB integration.

Designed for applications in industrial, electronic, and household devices. This product is part of EnvMart's comprehensive range of Push Button Switches, offering reliable and versatile solutions for industrial and electronic control needs.
