Panasonic Hinge Lever Micro Switch, Solder Terminal, 2A, 125 V ac, 30 V dc, SPDT, IP67 ABS161240

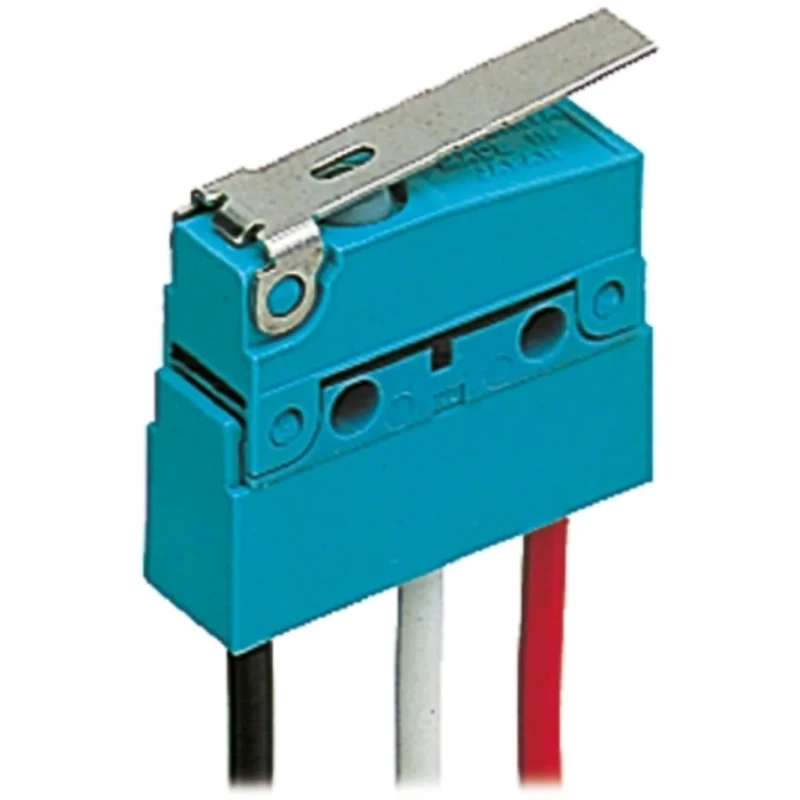

Panasonic ABS161240 is a high-quality subminiature micro switch designed for precise electrical switching applications. Featuring a durable hinge lever actuator and solder terminal connections, this micro switch supports a contact current of 2 amperes with AC voltage rating of 125 V and DC voltage rating of 30 V. Its SPDT (Single Pole Double Throw) contact configuration enables versatile control in circuits.

This switch is engineered for harsh environment performance with an IP67 protection rating, ensuring resistance against dust and water ingress. The switch mechanism is tightly sealed with ultrasonic swaging, utilizing a double-moulded elastomer technology, which is an industry first, elevating durability and reliability.

With an operating force of only 0.34 Newtons, it allows smooth actuation. It offers an impressive mechanical lifespan of up to five million operations, supporting applications requiring long-term endurance. The operating temperature range from minus 40 degrees Celsius to plus 85 degrees Celsius makes it suitable for diverse industrial, automation, electrical, and machinery environments.

Compliant with international standards such as VDE, RoHS, and cURus, the ABS161240 ensures quality and safety consistency. The product is made in Japan, reflecting high manufacturing standards.

Features a hinge lever actuator for precise control. Equipped with solder terminals for secure electrical connections. Supports a maximum contact current of 2 amperes. Rated for 125 V alternating current and 30 V direct current.

Single Pole Double Throw (SPDT) contact configuration for versatile switching. IP67 protective rating ensures operation in harsh environments with dust and water ingress protection. Operating force required is 0.34 Newtons for reliable actuation.

Mechanical life expectancy of 5,000,000 operations guarantees long-term durability. Operational temperature range from -40°C to 85°C suitable for diverse applications. Complies with VDE, RoHS, and cURus standards for quality and safety.

This micro switch is widely suited for industrial automation, electrical control systems, machinery, HVAC equipment, and other applications requiring reliable switching performance under demanding conditions. The high ingress protection coupled with long mechanical life makes it ideal for rugged environments.
