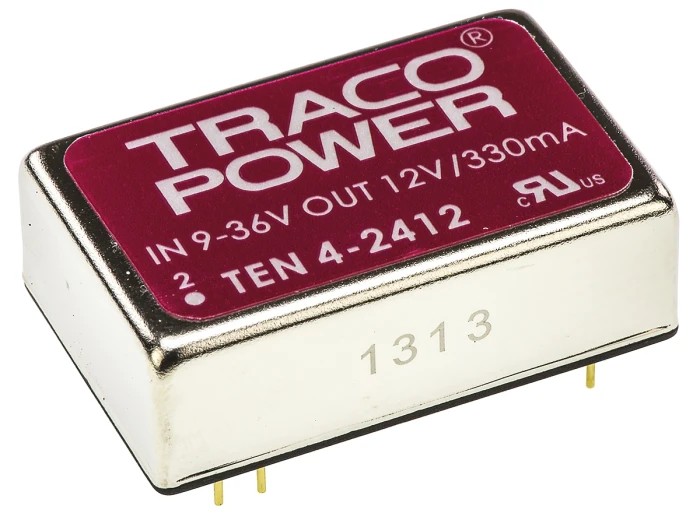

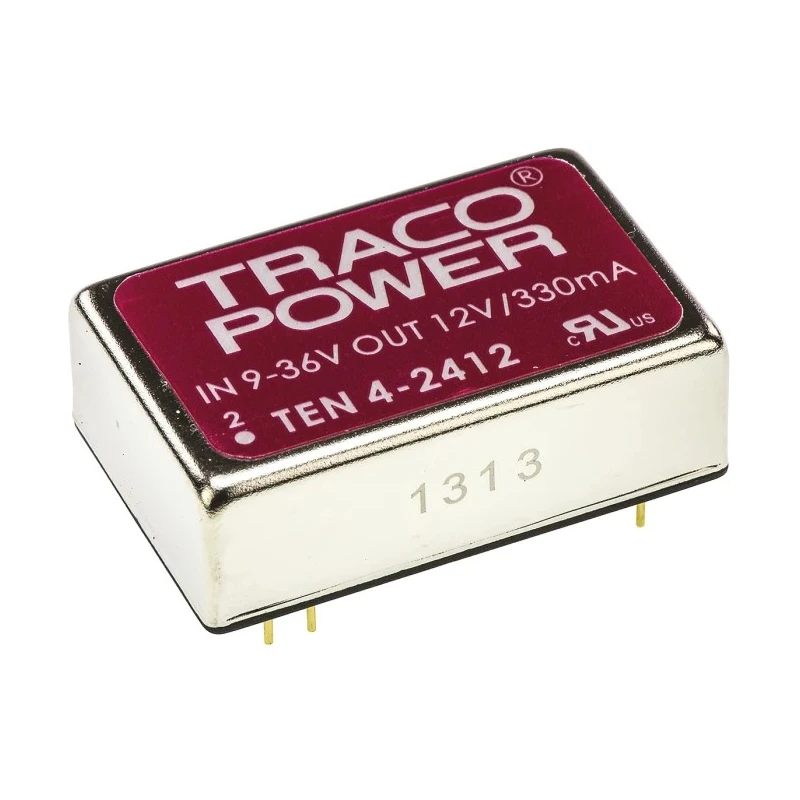

TRACOPOWER Regulated Isolated DC-DC Converter 12V DC 330mA 36V DC Input 9V Input 4W Through Hole TEN 4-2412

TRACOPOWER TEN 4-2412 is a high-quality regulated isolated DC-DC converter designed for converting a DC input voltage ranging from 9V to 36V into a stable 12V output at 330mA with a power rating of 4 Watts. This DIP-24 package module utilizes a through-hole mounting configuration and delivers excellent performance with an efficiency of 83%.

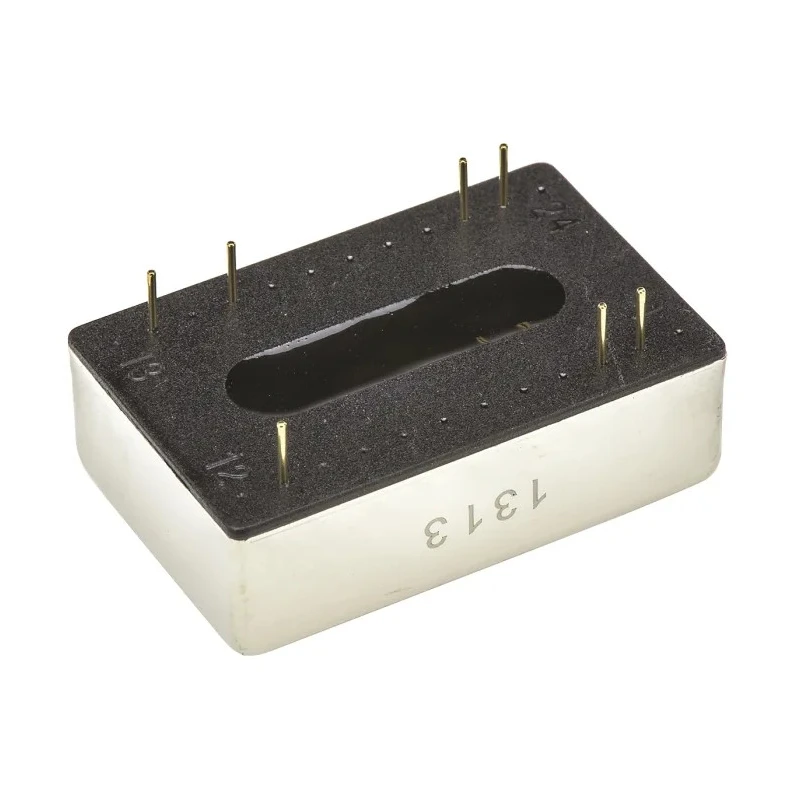

The device is constructed with a full surface-mount design ensuring superior reliability and a Mean Time Between Failures (MTBF) of one million hours. It is built with a shielded metal case featuring an insulated baseplate to enhance electrical isolation and thermal dissipation. The converter provides an input to output isolation voltage of 1500V DC, making it suitable for industrial control systems, telecommunication devices, and battery-operated equipment requiring electrical isolation and stable voltage output.

Its ultra-wide 4:1 input voltage range allows operation in variable voltage environments from as low as 9V DC up to 36V DC, accommodating fluctuations while maintaining constant output. The built-in EMI input filter ensures compliance with EN 55022 and FCC Class A standards without the need for additional external components.

Safety features include indefinite short circuit protection and reverse voltage protection, enhancing the converter’s robustness and durability. It operates reliably within a temperature range from minus 40 degrees Celsius up to 75 degrees Celsius, suiting harsh industrial environments.

Dimensions of the converter are compact with a length of 31.8mm, width of 20.3mm, and a depth of 10mm, enabling efficient PCB real estate usage. The product meets UL/cUL safety standards under UL File No. E188913.

Operates with 9-36V DC input voltage and outputs a regulated 12V DC voltage at 330mA. High efficiency of 83% reduces heat dissipation and energy consumption. Full SMD design with a DIP-24 through-hole package ensures easy PCB integration.

Provides 1500V DC isolation voltage between input and output for safety. Wide operating temperature range from -40°C to +75°C for harsh environments. Built-in EMI input filter compliant with EN 55022 and FCC Class A standards.

Indefinite short circuit and reverse voltage protection enhance reliability. MTBF of 1,000,000 hours ensures long-term dependable operation. UL and cUL approved under file number E188913 for quality assurance.

This DC-DC converter is ideal for industrial process control systems, tele-data communications, battery-operated equipment, and other electronic applications requiring stable, isolated power conversion. It belongs to the TEN 4 series known for compact industry-standard DIP packages and robust performance.
