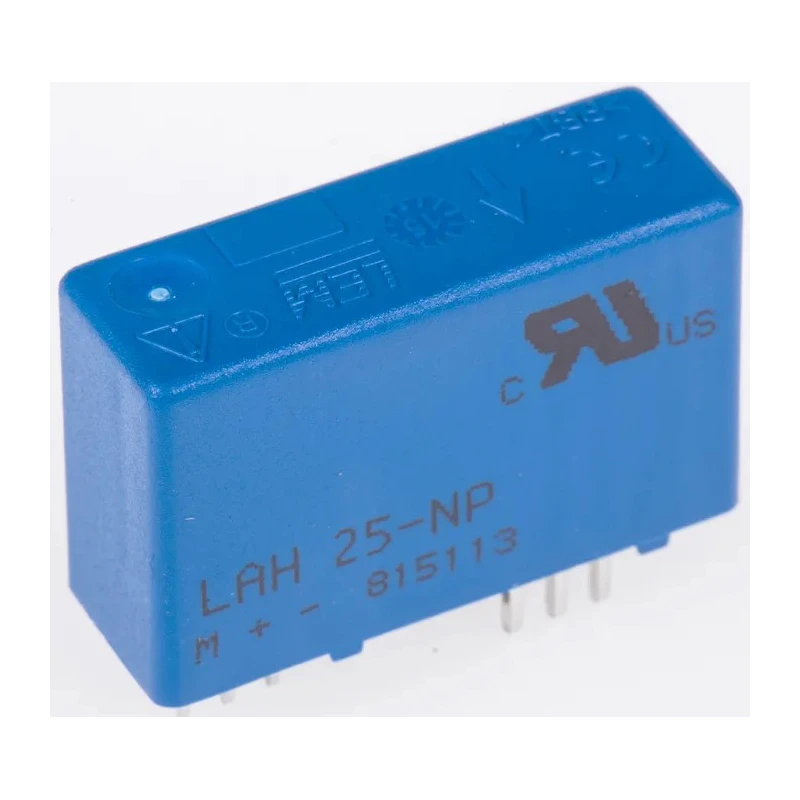

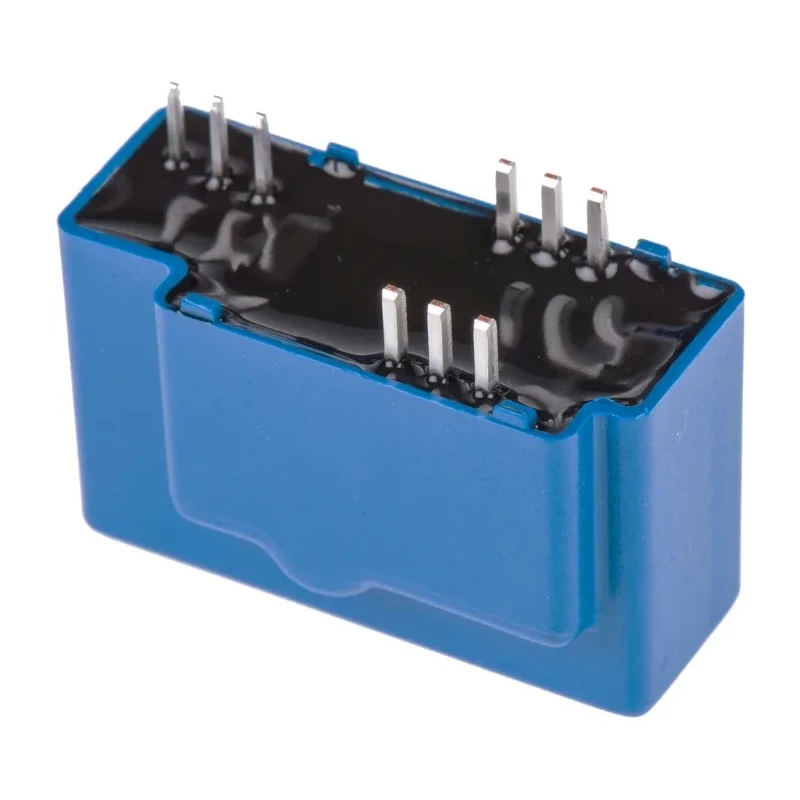

LEM LAH Series Current Transformer 25 A 1:1000 Turns Ratio 0.31 W Power Rating 12V, 15 V Supply Voltage LAH25-NP



Category Current Transformers Brand LEM Condition New

Specifications

Country of Origin	Bulgaria
Brand	LEM
Model	LAH25-NP
Depth	10mm
Gross Weight	2g
Width	33.3mm
Mount Type	PCB
Series	LAH
Power Rating	0.31W
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Secondary current	25mA
Supply Voltage	12, 15V
Inductance	0.012μH
Standards/Approvals	EN 50178
Primary Current	25A
Maximum Operating Frequency	200kHz
Turns Ratio	1:1000
Primary DC Resistance	0.18mΩ
Secondary DC Resistance	72Ω
Turns Ratio 1	1000
LEM LAH Series Current Transformer 50 A 12V, 15 VBrand	LEM
LEM LAH Series Current Transformer 25 A 1	1000 0.31 W 12V, 15 V

Key Features

Measurement of AC, DC, and pulsed currents with high accuracy.
Galvanic isolation between power and measuring circuits for safety.
Plastic body material rated UL94-V0 for flame retardancy.
PCB mounting type suitable for integration in electronic circuits.
Operating temperature range from -25°C to 85°C ensures durability.
Complies with EN 50178 standards for electrical safety and performance.
Maximum operating frequency up to 200 kHz for fast response applications.
Lightweight construction with a gross weight of 2 grams.

Product Description

The LEM LAH25-NP Current Transformer from the LAH series provides precise measurement of AC, DC, and pulsed currents with a primary current rating of 25 A and a turns ratio of 1:1000. It offers a power rating of 0.31 W and operates efficiently with a supply voltage of 12 V or 15 V. Designed to provide galvanic isolation between power and measuring circuits, it ensures reliable operation and safety in various electrical applications.

Constructed with a plastic body compliant with UL94-V0 standards, the transformer is flame-retardant and designed for PCB mounting to facilitate easy integration into electronic systems. It functions effectively within a temperature range of -25°C to 85°C, making it suitable for diverse operational conditions in industrial and laboratory environments.

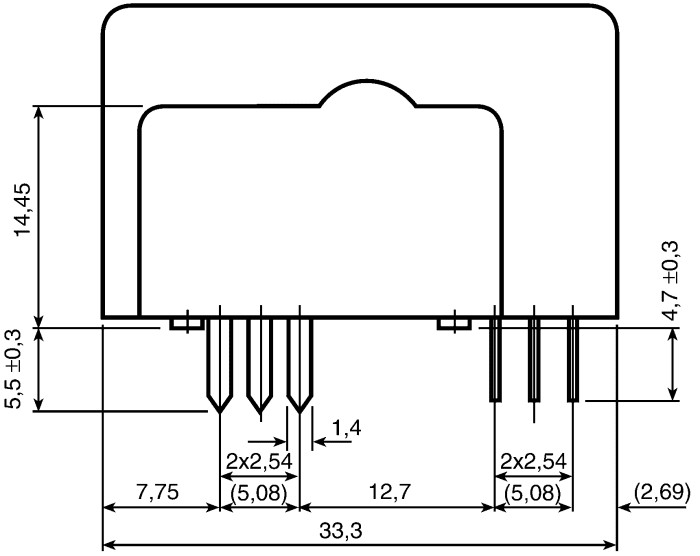

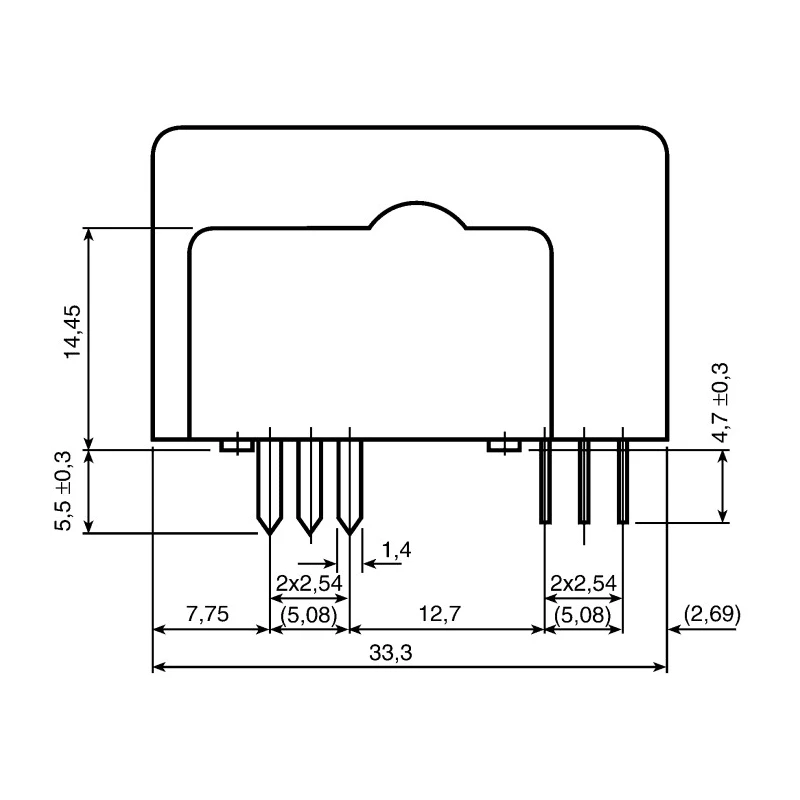

The compact form factor, measuring 33.3 mm in width and 10 mm in depth, combined with a lightweight design of only 2 grams, makes this current transformer ideal for equipment where space and weight are critical factors. Adhering to the EN 50178 standard ensures compliance with international safety and performance regulations.

The device supports a maximum operating frequency of 200 kHz, allowing it to accurately track rapidly changing current signals, crucial for advanced process control and industrial automation tasks.

This current transformer is extensively used in industrial automation, process control, electrical power measurement, and safety monitoring. Its precise current sensing capabilities are pivotal for systems requiring accurate current feedback and monitoring.

Measurement of AC, DC, and pulsed currents with high accuracy. Galvanic isolation between power and measuring circuits for safety. Plastic body material rated UL94-V0 for flame retardancy. PCB mounting type suitable for integration in electronic circuits.

Operating temperature range from -25°C to 85°C ensures durability. Compact dimensions: 33.3 mm width and 10 mm depth for space-efficient applications. Complies with EN 50178 standards for electrical safety and performance.

Maximum operating frequency up to 200 kHz for fast response applications. Lightweight construction with a gross weight of 2 grams. Discover more products in the Current Transformers category at EnvMart for reliable and precision electrical measurement solutions.
