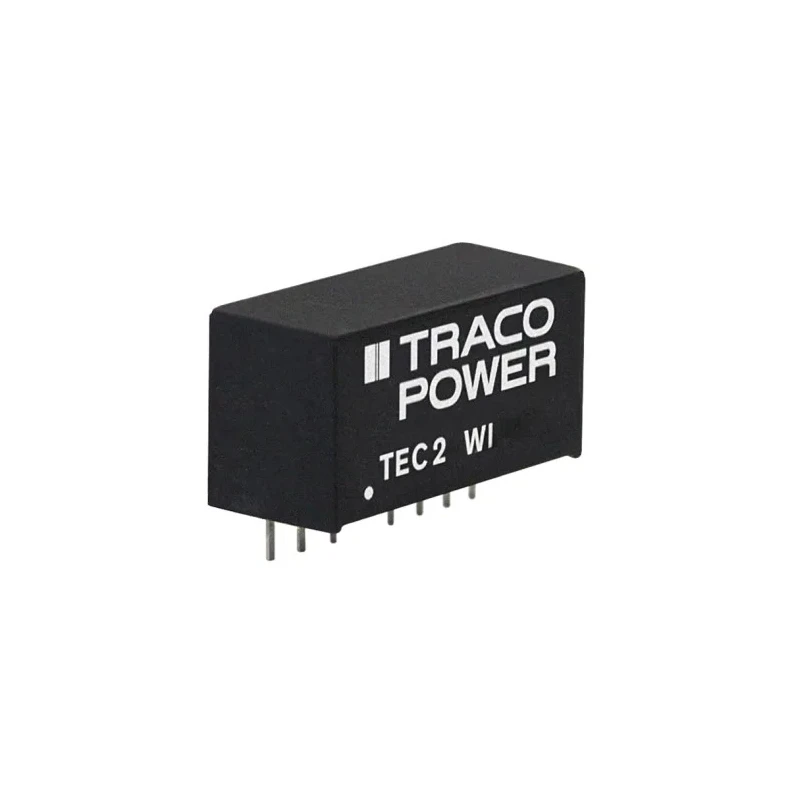

TRACOPOWER TEC 2WI High-Efficiency 2W SIP-8 DC/DC Converter, 15V and -15V Output, 4.5-18V Input Range, PCB TEC 2-1223WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2WI DC/DC Converter, 15V, -15 V/ 67 |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | TEC 2-1223WI |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2WI |
| Maximum Operating Temperature | 93°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 67mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- The converter features a dual regulated output voltage of 15V and -15V, suitable for varied electronic applications.
- It supports an output current of 67mA with a maximum output power of 2 watts for efficient low-power operation.
- It has a compact SIP-8 package designed for PCB mounting, with dimensions 21.8mm length, 11.2mm depth, and 9.1mm width.
- The converter exhibits high efficiency at 81% and an extended operating temperature range from -40°C to +93°C.
- It provides a robust isolation voltage of 1600 V DC to protect sensitive circuits.
- Features include fully regulated outputs over the entire load range with no minimum load requirement.
- The converter offers continuous short circuit protection and remote On/Off control for system safety.
- MTBF is rated at 6,620,000 hours, ensuring excellent reliability in industrial use.
Product Description
TRACOPOWER TEC 2-1223WI DC/DC Converter is a high-performance, low-power converter designed for reliable and efficient electronic applications. It outputs stable dual voltages of 15V and -15V with a continuous output current capacity of 67mA and total power of 2 watts.
This converter features an ultra-wide 4.5-18V DC input range and is housed in a compact SIP-8 package ideal for direct printed circuit board mounting. Its design incorporates latest technology components to achieve over 20% improvement in efficiency compared to previous models, reaching an impressive 81% efficiency rating.
Operating temperature ranges from -40°C to 93°C, making it suitable for use in harsh industrial, electronic, and telecommunications environments. The product includes continuous short circuit protection and remote On/Off functionality to ensure operational safety and control.
With an isolation voltage of 1.6 kV DC, this DC/DC converter safeguards sensitive components from electrical noise and voltage spikes, critical for medical, industrial automation, instrumentation, and embedded system applications.
The TEC 2WI series converters are fully regulated over 0 to 100% load without requiring a minimum load, enhancing their versatility. The extremely high mean time between failures (MTBF) of over 6.6 million hours underscores its robust construction and reliability.
Dual regulated outputs at +15V and -15V voltages. High efficiency at 81% optimizing power usage. Wide input voltage range of 4.5V to 18V DC. Compact SIP-8 PCB mount package with small footprint. Operating temperature from -40°C to +93°C for industrial applications.
1.6kV DC isolation voltage for system protection. Continuous short circuit protection and remote On/Off control. MTBF of 6,620,000 hours indicates long service life. RoHS compliant and manufactured in Taiwan.
Ideal for applications in industrial electronics, telecommunications, instrumentation, and embedded systems requiring stable dual output voltages with high efficiency and reliability. Explore EnvMart's selection to find more advanced DC/DC converters and power supply solutions.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is ultra-wide, spanning from 4.5V to 18V DC.
It provides dual regulated output voltages of +15V and -15V.
The maximum output power of this converter is 2 watts.
It exhibits a high efficiency rating of 81%.
The dimensions of the SIP-8 package are 21.8mm in length, 11.2mm in depth, and 9.1mm in width.
The operating temperature range is from -40°C to +93°C.
This model is designed for PCB mounting.
The isolation voltage is rated at 1.6 kV DC, which protects sensitive circuits.
Yes, it includes continuous short circuit protection for operational safety.
The MTBF is rated at 6,620,000 hours, indicating excellent reliability.
It is ideal for applications in industrial electronics, telecommunications, instrumentation, and embedded systems.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
