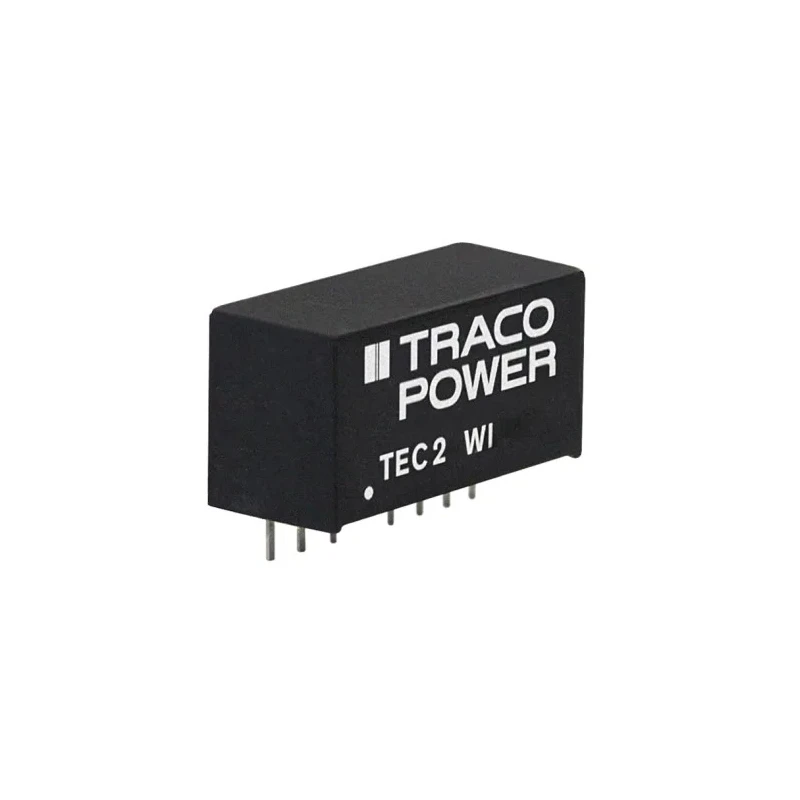

TRACOPOWER TEC 2WI DC/DC Converter, 9V DC Output, 222mA, 18V DC Max Input, 4.5V Min Input, 2W Power, SIP-8 PCB TEC 2-1219WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2WI DC/DC Converter, 9V dc/ 222 mA |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | TEC 2-1219WI |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2WI |
| Maximum Operating Temperature | 93°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 6621000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 222mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- Maintains regulation over 0 to 100% load without requiring minimum load conditions.
- High efficiency of 80% reduces thermal loss and supports extended operating temperature range.
- Designed for PCB mounting with a compact SIP-8 package dimension of 21.8mm x 9.1mm x 11.2mm.
- I/O isolation voltage rated at 1600 VDC ensures electrical safety and reliability.
- Operating temperature range from -40°C up to 93°C suitable for harsh environments.
- Continuous short circuit protection enhances durability and reliability.
- Includes remote On/Off control feature for flexible operation management.
- Manufactured with RoHS compliant components ensuring environmental safety.
Product Description
TRACOPOWER TEC 2-1219WI DC/DC Converter is engineered to provide a reliable 9V DC output at 222mA with a maximum input voltage of 18V DC and a minimum input voltage of 4.5V DC. This converter delivers a maximum output power of 2W in a compact SIP-8 package optimized for printed circuit board (PCB) mounting.
The converter features an ultra-wide 4:1 input voltage range, supporting flexible application requirements and improving efficiency by over 20% compared to previous models. The high efficiency of 80% reduces thermal losses, allowing for an extended operating temperature range from -40°C up to a maximum of 93°C, making it suitable for industrial and harsh environment usage.
Its robust design incorporates a high isolation voltage of 1600 VDC, providing strong electrical isolation between input and output, essential for safety and noise reduction in industrial electronics. The device is fully regulated over the entire load range without requiring a minimum load, ensuring stable voltage output under varying conditions.
Additional features include continuous short circuit protection to prevent damage under fault conditions, and a remote On/Off control for convenient power management in complex systems. The converter complies with RoHS standards, supporting environmentally responsible manufacturing and disposal.
Typical applications include industrial automation, telecommunications, instrumentation, laboratory electronics, and other demanding electrical systems requiring compact, efficient, and reliable DC/DC conversion on a PCB.
Ultra-wide 4:1 input voltage range enhances device versatility. Compact SIP-8 package measures 21.8mm length, 9.1mm width, and 11.2mm depth for space-efficient PCB mounting. Operating temperature range from -40°C to +93°C ensures reliability in harsh conditions.
Isolation voltage of 1600 VDC for electrical safety and noise immunity. Fully regulated output voltage over 0-100% load without minimum load requirement. Continuous short circuit protection to safeguard the device and connected circuitry.
Remote On/Off functionality enables easy integration into complex control systems. RoHS compliant, ensuring environmental safety and sustainability. Designed and manufactured in Taiwan, Province Of China, guaranteeing quality and reliability.
3-year warranty offers confidence in product durability and performance.
Choose TRACOPOWER TEC 2WI series for efficient and reliable DC/DC conversion needs. Browse our Electronics & Electricals > Converters > DC-DC Converter category for complementary products and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 9V DC with a maximum output current of 222mA.
The maximum input voltage is 18V DC, while the minimum input voltage is 4.5V DC.
It has an efficiency rating of 80%, which helps reduce thermal losses during operation.
The SIP-8 package measures 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
The operating temperature range is from -40°C to 93°C, making it suitable for harsh environments.
Yes, it features continuous short circuit protection to prevent damage under fault conditions.
The isolation voltage is rated at 1600 VDC, ensuring electrical safety and noise immunity.
Yes, it includes a remote On/Off control feature for flexible operation management in complex systems.
Typical applications include industrial automation, telecommunications, instrumentation, and laboratory electronics.
It has an ultra-wide input voltage range of 4:1, enhancing its versatility for various applications.
This model is manufactured in Taiwan, Province Of China, ensuring quality and reliability.
The maximum output power is 2W, suitable for various electronic applications.
