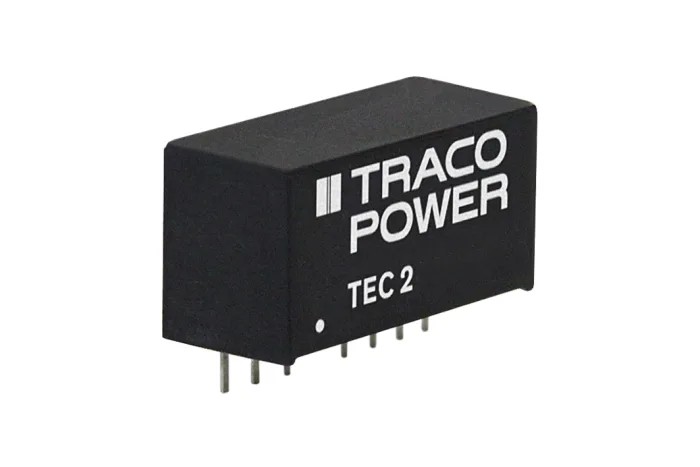

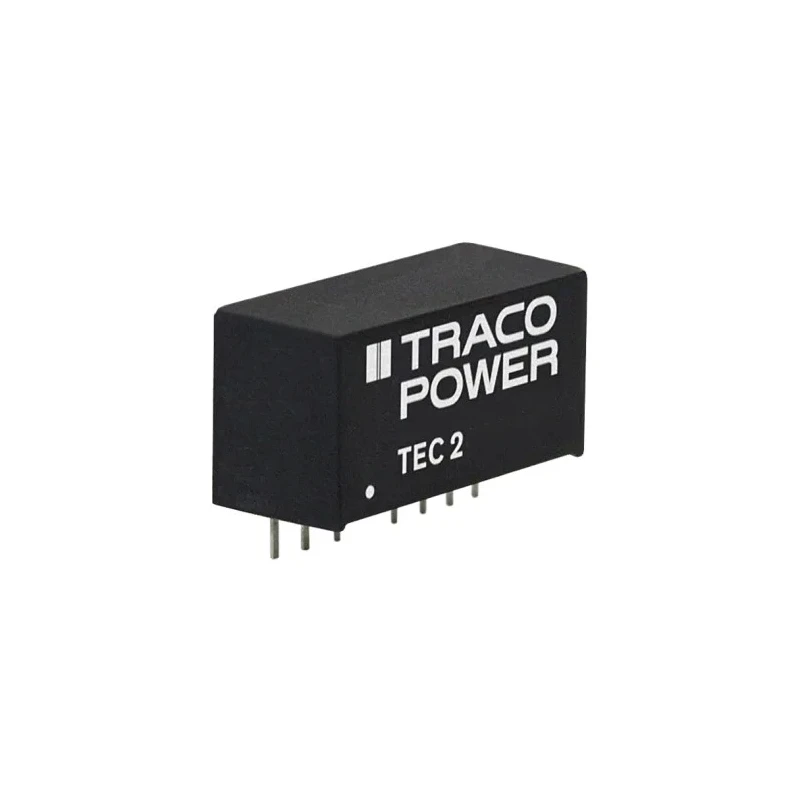

TRACOPOWER 2 W SIP-8 DC/DC Converter 24V DC Output 83mA Input 9-18V DC TEC 2-1215
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2 DC/DC Converter, 24V dc/ 83 mA, 1 |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 21.8mm |
| Model | TEC 2-1215 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 6621000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 83mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Fully regulated output voltage over 0 to 100% load without minimum load requirements.
- High efficiency of 84% reduces thermal loss and enables extended operating temperature range.
- Compact SIP-8 packaging with isolation voltage of 1600 VDC for robust electrical isolation.
- Operating temperature range from -40°C to +95°C suitable for demanding environments.
- Continuous short circuit protection ensures reliable operation under fault conditions.
- Remote On/Off functionality for flexible power management in system designs.
- Mean time between failures (MTBF) of over 6.6 million hours underlines product reliability.
- RoHS compliant construction supporting environmental safety standards.
Product Description
TRACOPOWER TEC 2-1215 DC/DC Converter is a high-performance, fully regulated power supply module delivering 2 Watts output at 24V DC voltage and 83mA current. Its optimized design improves efficiency by more than 20% over previous generations, achieving 84% efficiency which reduces thermal dissipation significantly and broadens the operating temperature window from -40°C to +95°C. The converter is packaged in a compact SIP-8 form factor designed for PCB mounting applications.
This converter features a wide input voltage range from 9V to 18V DC using a 2:1 input ratio and provides electrical isolation with 1600 VDC isolation voltage between input and output. Continuous short-circuit protection and remote On/Off control functionality provide enhanced system safety and control flexibility.
Typical applications include industrial automation systems, instrumentation, and embedded systems requiring reliable DC voltage conversion with low noise and high efficiency. The fully regulated output voltage ensures stability across varying load conditions without requiring a minimum load. The product is RoHS compliant and built for demanding environments with reliable performance throughout its lifetime, supported by a mean time between failures (MTBF) exceeding 6.6 million hours.
Fully regulated output voltage across full load range. Wide 9-18V DC input range with 2:1 ratio. High efficiency of 84% for low thermal loss. Compact SIP-8 package for PCB mounting. Electrical isolation up to 1600 VDC. Operating temperature from -40°C to +95°C.
Continuous short circuit protection. Remote On/Off functionality. RoHS compliant construction. Manufactured in Taiwan, Province Of China.
This DC/DC converter is ideal for a variety of industrial, laboratory, and electronic applications demanding small, efficient and reliable power conversion. It enables designers to incorporate robust and compact power solutions with enhanced thermal performance. For more high-quality converters and power supplies from TRACOPOWER, explore EnvMart's Electronics & Electricals category.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a maximum output power of 2 Watts at 24V DC and 83mA current.
It operates within a wide input voltage range of 9V to 18V DC, featuring a 2:1 input ratio.
The converter achieves an efficiency of 84%, which helps reduce thermal loss during operation.
The dimensions of the TRACOPOWER TEC 2-1215 are 21.8mm in length, 11.2mm in depth, and 9.1mm in width.
It provides an isolation voltage of 1600 VDC between input and output, ensuring robust electrical isolation.
This unit operates effectively within a temperature range of -40°C to +95°C, suitable for demanding environments.
Yes, it includes continuous short-circuit protection to ensure reliable operation under fault conditions.
It is designed for PCB mounting, making it suitable for various electronic applications.
The MTBF for the TRACOPOWER TEC 2-1215 is over 6.6 million hours, indicating high reliability.
Yes, it is RoHS compliant, supporting environmental safety standards.
Typical applications include industrial automation systems, instrumentation, and embedded systems requiring reliable DC voltage conversion.
The remote On/Off functionality allows for flexible power management in system designs, enhancing control over the power supply.
