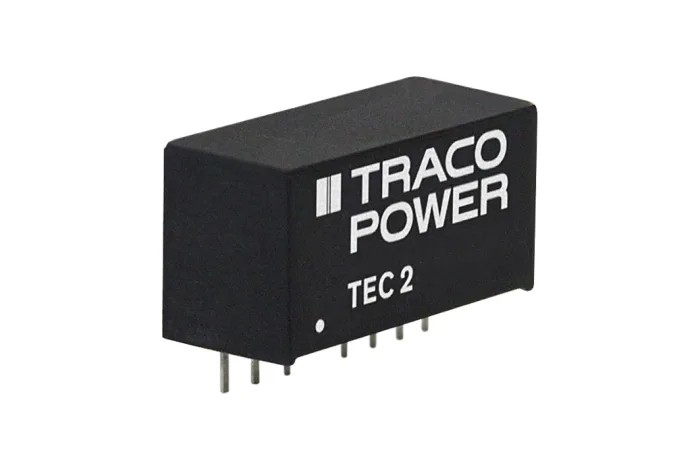

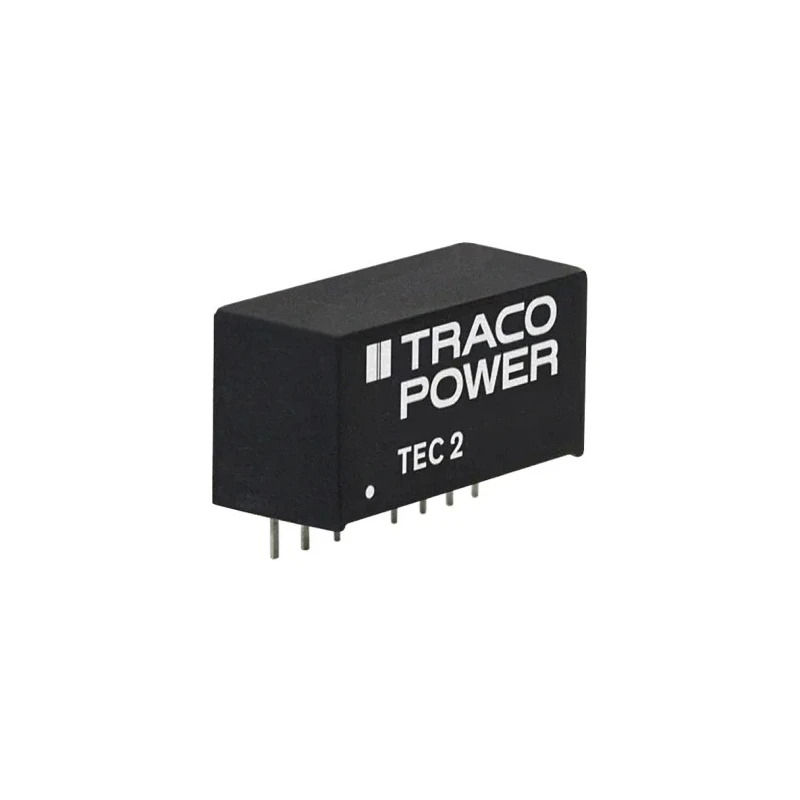

TRACOPOWER DC/DC Converter 12V 67mA, 13.2V/4.5V Input, 2W Power, SIP-8 Package TEC 2-0923
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2 DC/DC Converter, 12V/ 67 mA, 13 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 21.8mm |
| Model | TEC 2-0923 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 6621000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 12V |
| Output Current 1 | 67mA |
| Isolation Voltage | 1.6kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V |
Key Features
- Compact SIP-8 package with efficient PCB mounting.
- Operates with input voltage ranging from 4.5V to 13.2V DC.
- Maximum output power capacity of 2 Watts with full regulation over load.
- Isolation voltage rated at 1600 VDC ensuring robust electrical separation.
- Wide operating temperature range from -40°C to +95°C.
- High efficiency of approximately 82% reducing thermal losses.
- Designed with continuous short circuit protection for reliability.
- Remote On/Off functionality for flexible control.
Product Description
TRACOPOWER TEC 2-0923 is a high-performance DC/DC converter designed to deliver 12V output voltage at 67mA output current with a compact SIP-8 PCB mount package. It supports input voltage ranges from 4.5V to 13.2V DC, making it suitable for a range of low voltage power applications.
This series improves efficiency by over 20% compared to previous designs, achieving 82% efficiency which reduces thermal loss and extends operating temperature range from -40°C up to 95°C. It features full output regulation across 0 to 100% load without a minimum load requirement.
The converter has a robust functional input/output isolation rated at 1600 VDC (60 second test), ensuring safety and noise immunity in industrial and laboratory environments. It provides continuous short circuit protection and a remote on/off capability for system integration.
It is well suited for use in industrial, electronic manufacturing, laboratory instrumentation, and embedded systems where reliable regulated DC power conversion is essential. The compact SIP-8 package (dimensions approximately 21.8mm length x 9.1mm width x 11.2mm depth) simplifies PCB integration.
Compact SIP-8 package for easy PCB mounting and space saving. Dual input voltage range of 4.5V to 13.2V to accommodate varying supply voltages. 2 Watt maximum output power suitable for low power applications. Isolation voltage 1600 VDC for enhanced safety and electrical separation.
Operating temperature range from -40°C to +95°C for harsh environments. High efficiency of 82% reduces heat generation and energy loss. Continuous short circuit protection ensures converter reliability. Remote On/Off control capability for flexible system use.
MTBF rated at over 6.6 million hours for high reliability and long service life.
This TRACOPOWER TEC 2 series DC/DC converter maintains high performance and efficiency standards for demanding electronic power supply applications. The product is manufactured in Taiwan, Province Of China, following RoHS compliance standards and includes a 3-year product warranty.
Explore more DC/DC converters and power supply solutions on EnvMart to find ideal components for your electronic design and manufacturing needs.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5V to 13.2V DC.
This unit has a maximum output power capacity of 2 Watts.
The efficiency of the TEC 2-0923 is approximately 82%, which helps reduce thermal losses.
The dimensions of the SIP-8 package are approximately 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
The isolation voltage is rated at 1600 VDC, ensuring robust electrical separation.
The operating temperature range is from -40°C to +95°C.
Yes, this model features continuous short circuit protection for enhanced reliability.
It supports PCB mounting, making it suitable for various electronic applications.
The output voltage is 12V with an output current of 67mA.
Yes, the TEC 2-0923 is manufactured following RoHS compliance standards.
It is well suited for use in industrial, electronic manufacturing, laboratory instrumentation, and embedded systems.
The MTBF (Mean Time Between Failures) is rated at over 6.6 million hours.
