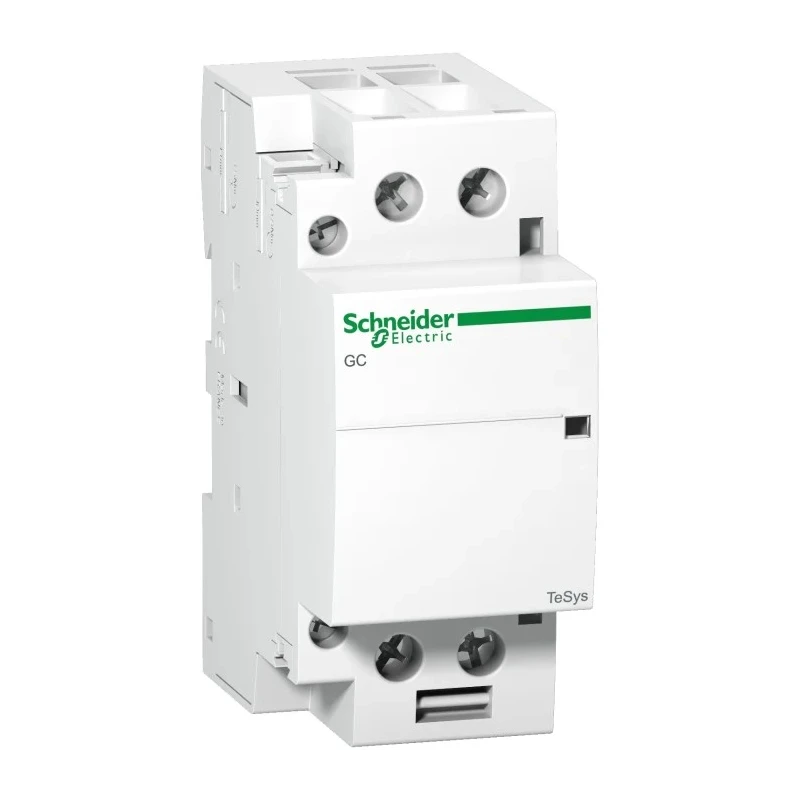

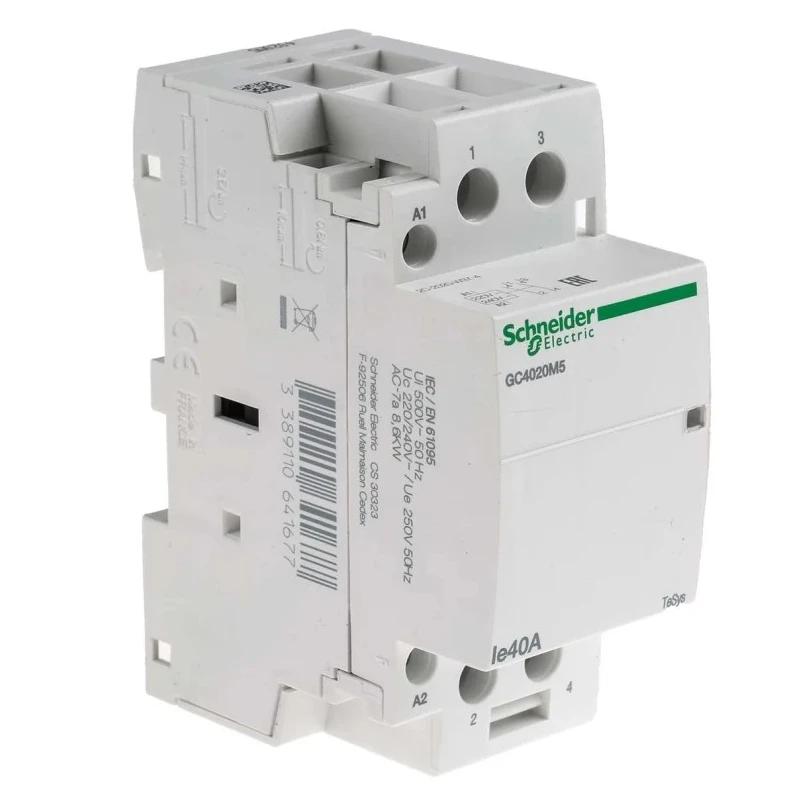

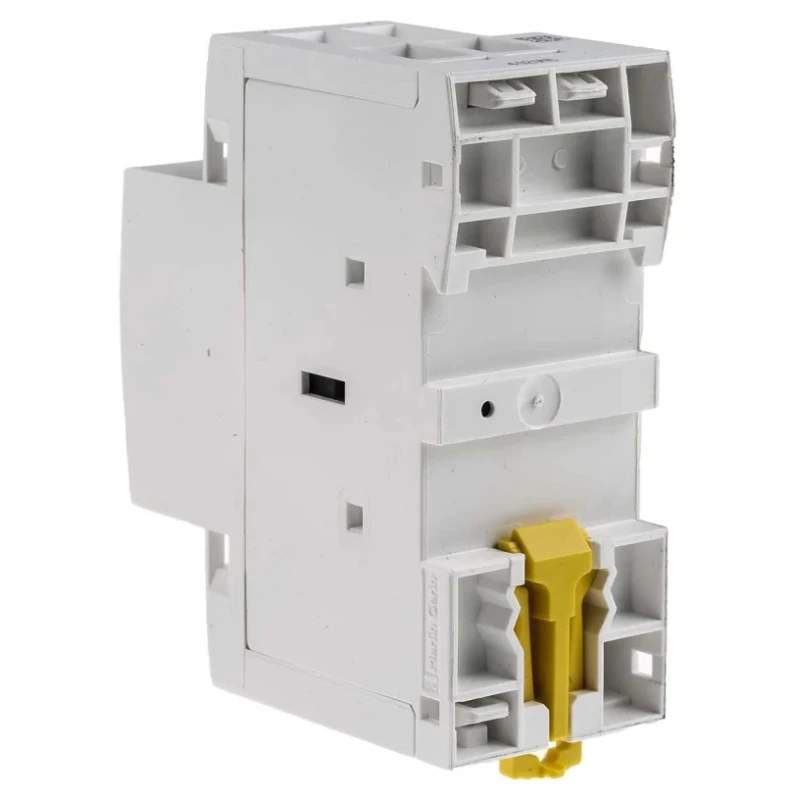

Schneider Electric TeSyS GC Contactor, 230V AC Coil, 2-Pole, 40A, 3.2W Power, 2 NO, 250V AC Contact GC4020M5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 81mm |
| Model | GC4020M5 |
| Depth | 65mm |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | TeSys GC |
| Power Rating | 3.2W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | CEBEC, EN, IEC, NF-USE, OVE, RoHS, VDE |
| Contact Voltage | 250V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 2 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- Designed for motor control with a 230V AC coil and 2 NO normal state contacts.
- Compact 35mm width enabling easy installation on DIN rails or crowded control panels.
- Supports up to 40A contact current and contact voltage of 250V AC.
- Wide operating temperature range from -5°C to +50°C for diverse environments.
- High electrical durability with a lifespan of 100,000 cycles ensuring long service life.
- IP20 finger-safe screw terminals for secure and safe wiring connections.
- Designed and tested to meet standards including CEBEC, EN, IEC, NF-USE, OVE, RoHS, and VDE.
- Quiet operation suitable for residential, public building, and HVAC lighting control applications.
Product Description
Schneider Electric GC4020M5 TeSyS GC Contactor is a 2-pole contactor with a 230V AC coil and a contact current rating of 40A, designed for reliable motor control and general switching of slightly inductive loads. Rated at 3.2W coil power, this compact device is ideal for residential buildings, public amenities, HVAC systems, and domestic appliance controls such as kitchen blenders.
The contactor features screw-type terminals with IP20 finger safety, making it suitable for safe wiring in control panels. Its narrow width of 35mm enables installation in compact panels or crowded spaces, with easy DIN rail mounting. It supports operation in a wide temperature range from -5°C to +50°C, ensuring reliable performance in demanding industrial or commercial environments.
With a normal state configuration of 2 NO (normally open) contacts and 1 NO auxiliary contact, it offers versatile control capabilities, including remote operation via timers or switches. The contactor has a fast switching time of 10 to 30 milliseconds and can cycle up to 300 times per hour at elevated temperatures.
This contactor meets multiple international standards such as CEBEC, EN, IEC, NF-USE, OVE, RoHS, and VDE, ensuring compliance and safety. Its quiet operation makes it well suited for noise-sensitive environments such as homes and public buildings.
The device is part of the TeSyS GC series from Schneider Electric, known for compact design and modular functionality. It is designed for easy integration and disassembly, supporting sustainable practices.
Designed for motor control with robust 2-pole contactor configuration. 230V AC coil voltage with 40A contact current rating. Compact DIN rail mount design with 35mm width for space-efficient installation. Wide temperature operation from -5°C to +50°C for durability.
IP20 screw terminals provide safe and reliable wiring. Complies with multiple international electrical and safety standards. Quiet operation suitable for residential and commercial application. Fast switching with 10-30 ms operation times and 100,000 electrical cycles lifespan.
Ideal for industrial, residential, HVAC, and manufacturing applications requiring reliable power switching. Browse more Schneider Electric Contactors and control gear on EnvMart for tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 40A.
It operates with a coil voltage of 230V AC.
The dimensions are 81mm in length, 35mm in width, and 65mm in depth.
The maximum operating temperature is 50°C.
This contactor has 2 poles.
It features screw-type terminals with IP20 finger safety.
The operational power rating is 3.2W.
The normal state configuration includes 2 normally open (NO) contacts.
It complies with standards including CEBEC, EN, IEC, NF-USE, OVE, RoHS, and VDE.
It has a lifespan of 100,000 electrical cycles.
It is suitable for motor control and general switching of slightly inductive loads in residential, public, and HVAC applications.
This model is designed for DIN rail mounting, making it suitable for compact installations.
