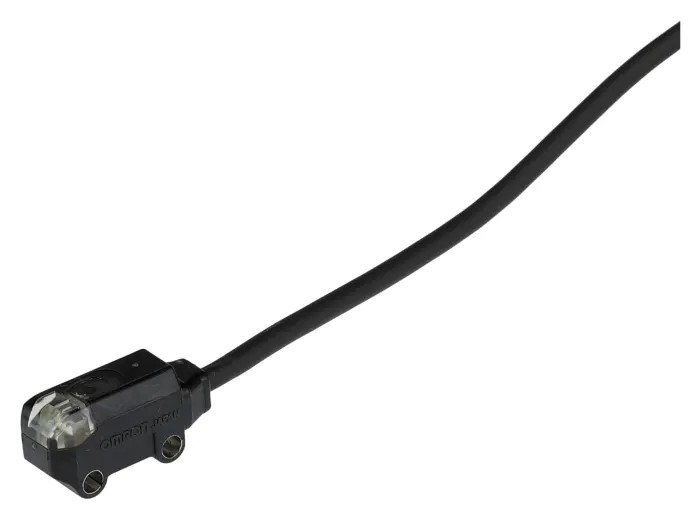

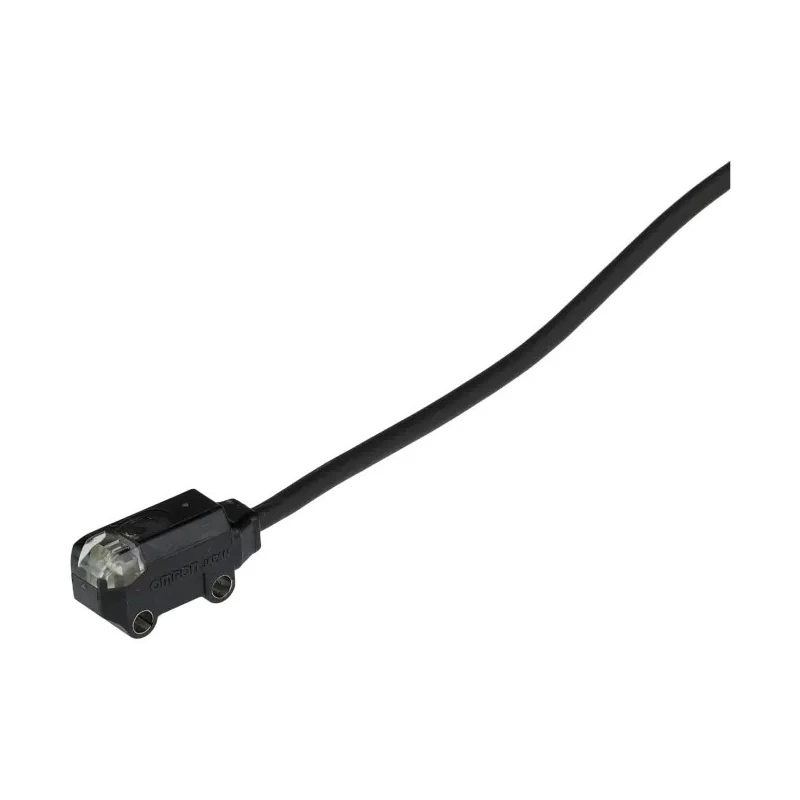

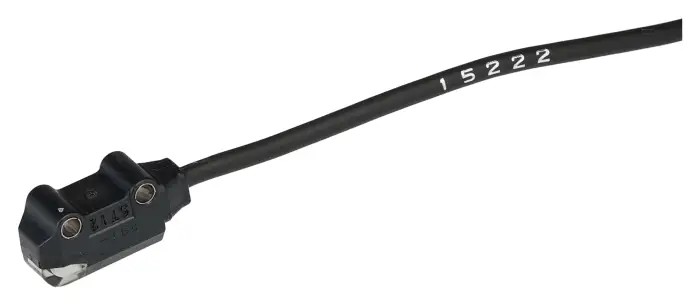

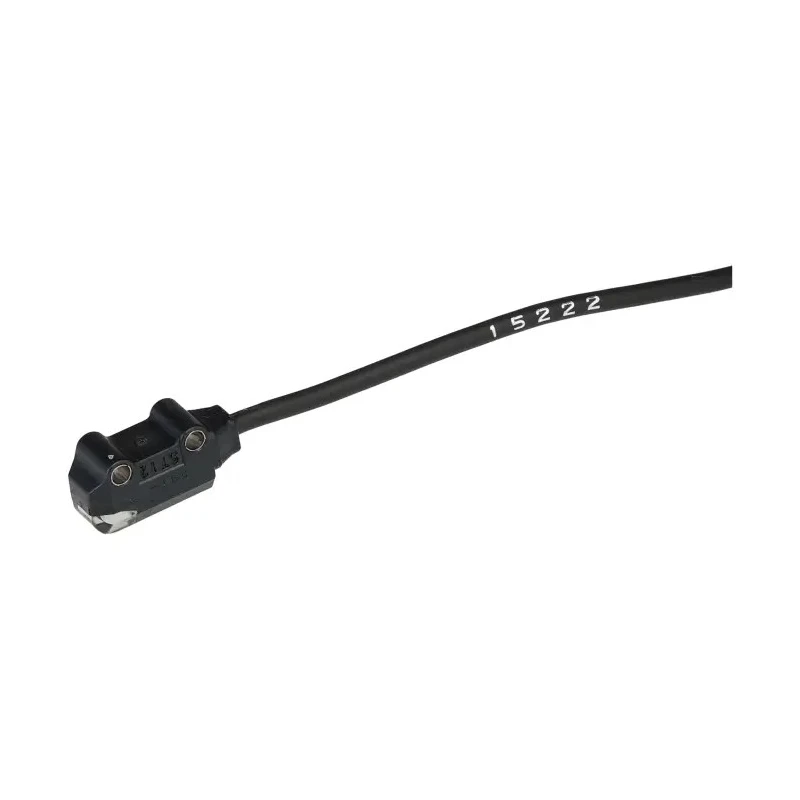

Omron Through Beam Photoelectric Sensor Block Style 1 m Detection Range NPN Output IP67 E3T-ST12 2M

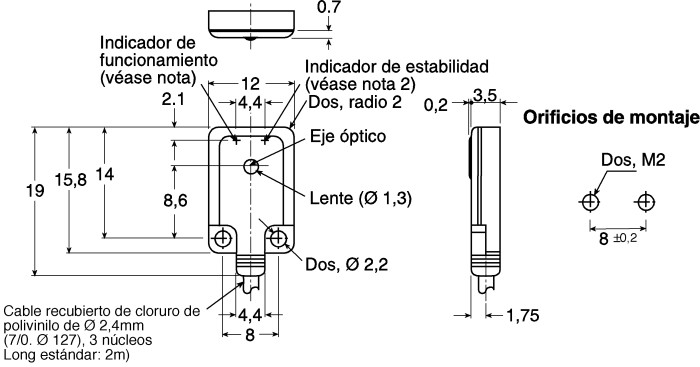

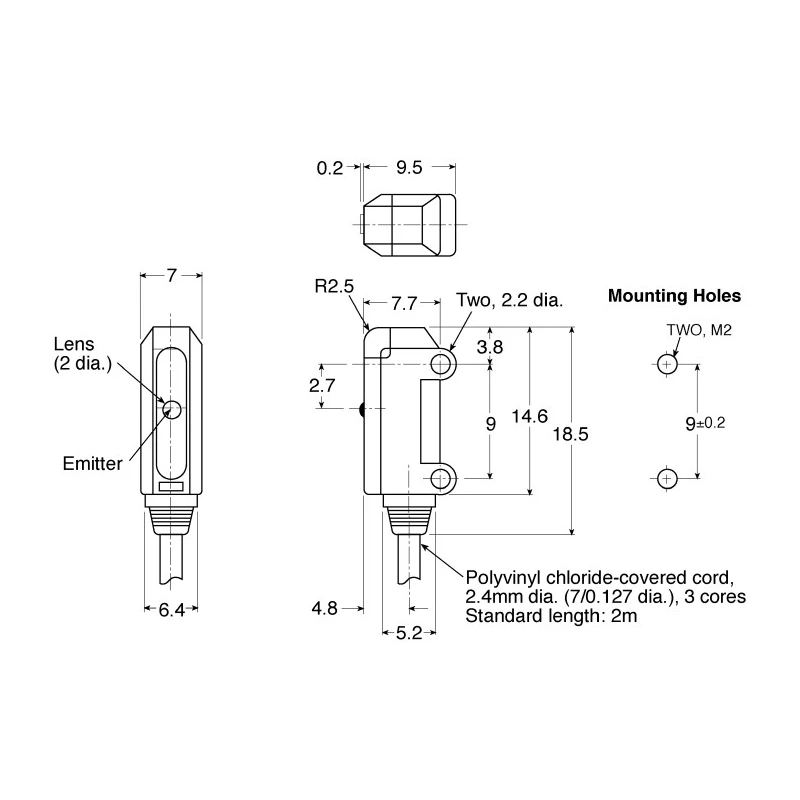

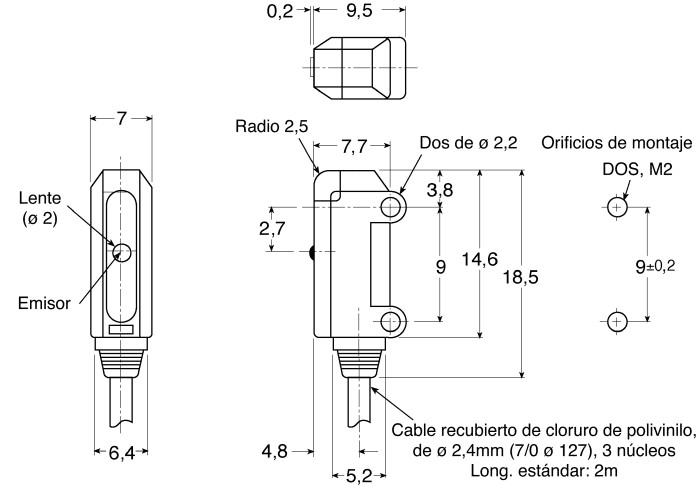

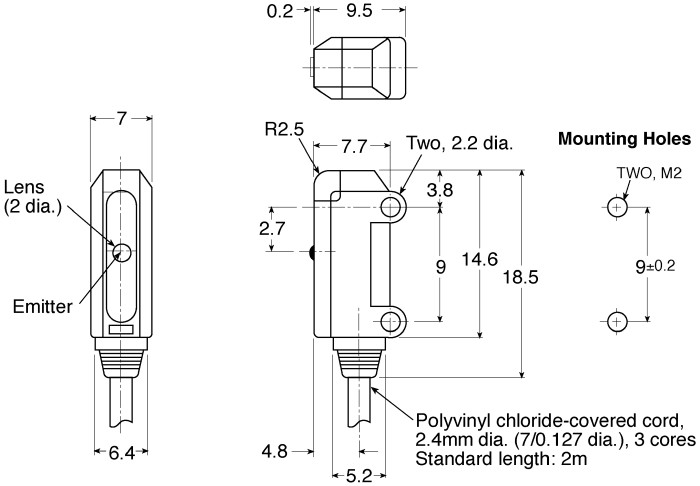

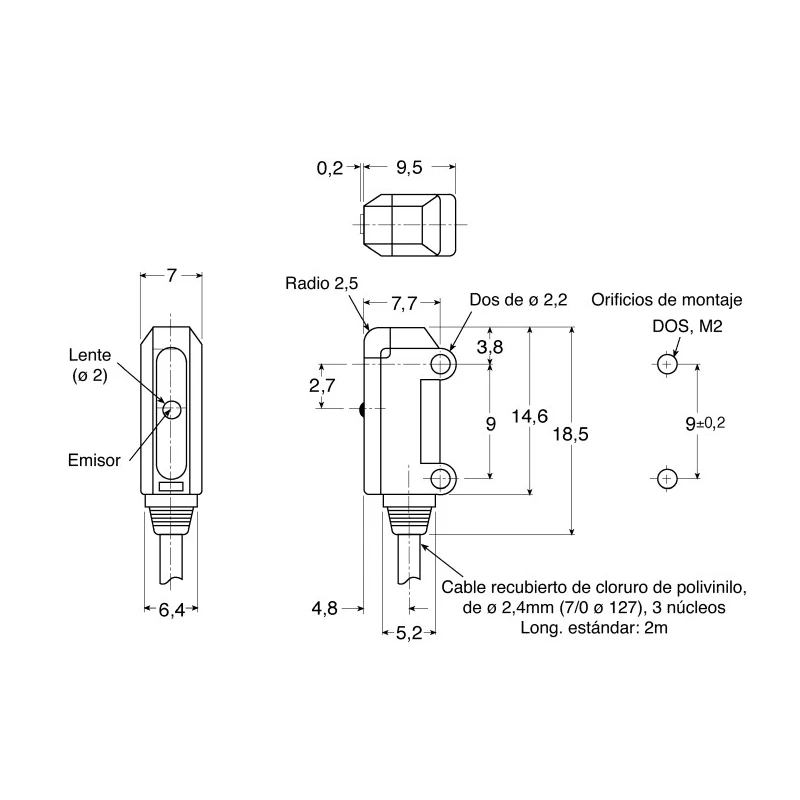

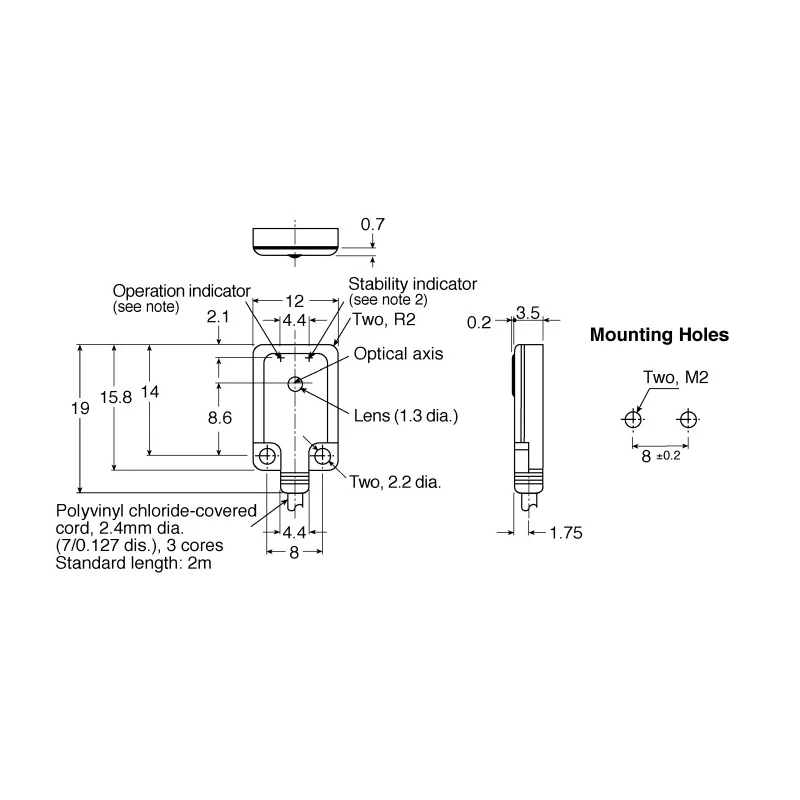

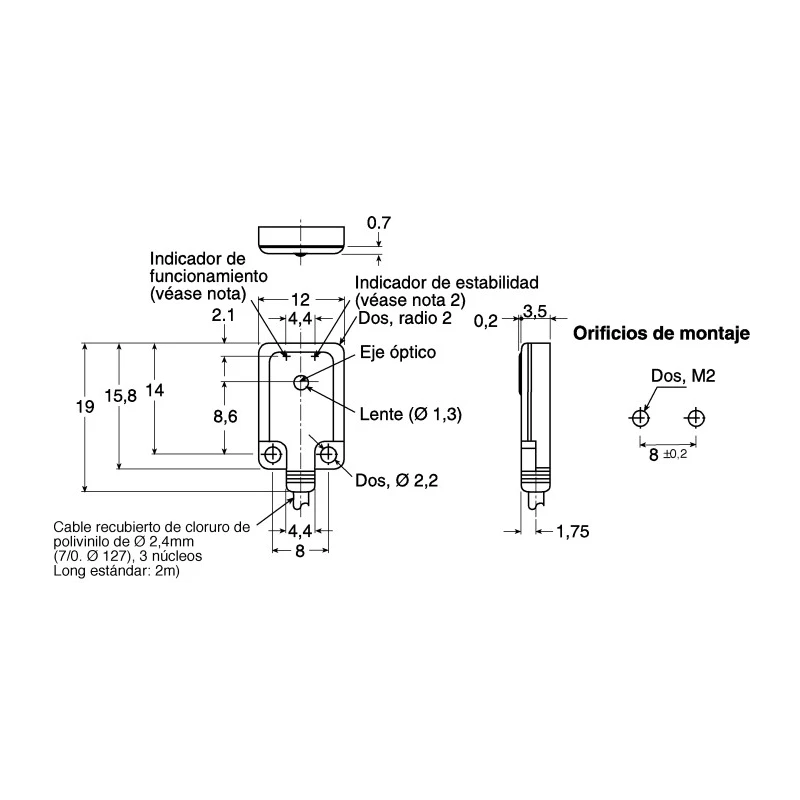

Omron E3T-ST12 2M is a through beam photoelectric sensor designed for precise and reliable object detection within a 1 meter detection range. Its block sensor style and compact dimensions of 93.8mm length, 4.9mm width, and 14.6mm height make it suitable for installations where space is limited. This sensor employs a red LED light source to achieve high sensing accuracy and operates with an NPN output type that can handle a maximum load current of 50 mA under supply voltages up to 26.4 Vdc.

Built with a durable Polybutylene Terephthalate housing, the E3T-ST12 2M withstands harsh industrial environments. It has an IP67 ingress protection rating, providing dust-tight and water immersion resistance for reliable operation in challenging locations. The sensor supports operating temperatures from -25°C to +55°C, ensuring versatility across various industrial conditions. Featuring a fast response time of 1 millisecond, this device is ideal for applications requiring high-speed sensing such as automated machinery, packaging lines, and robotics.

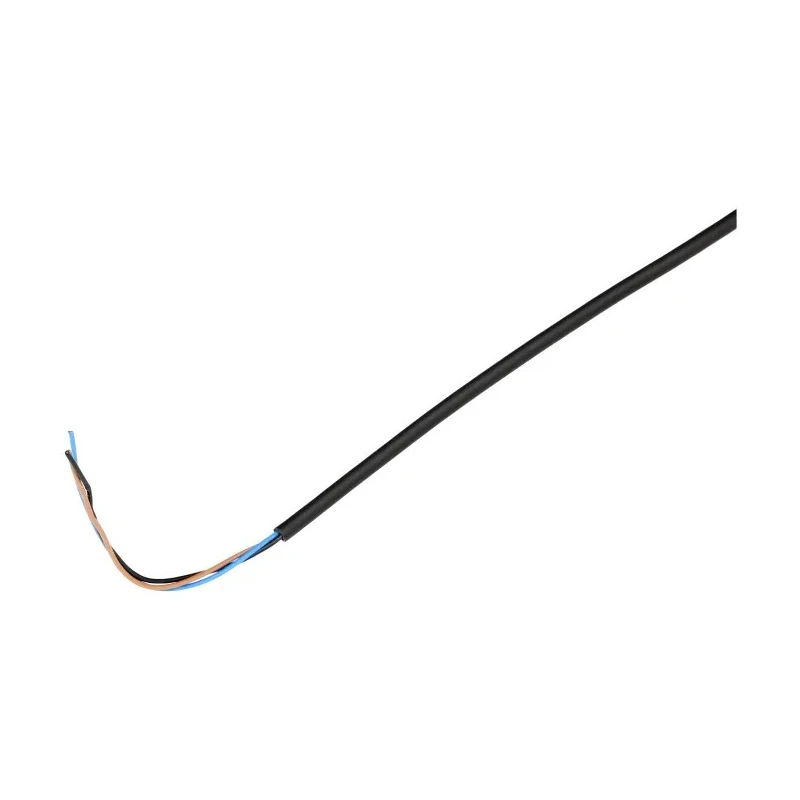

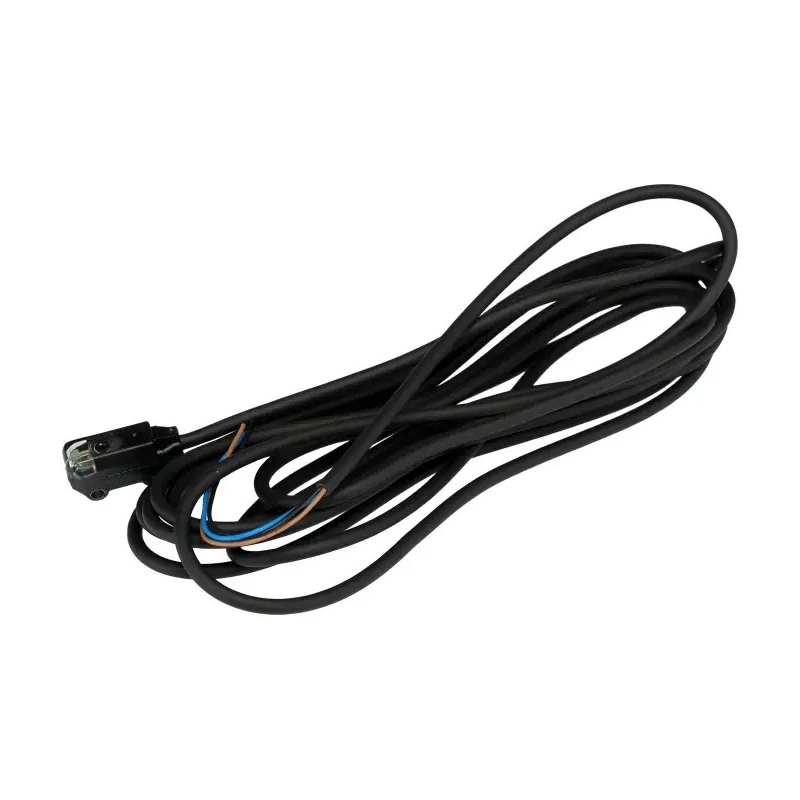

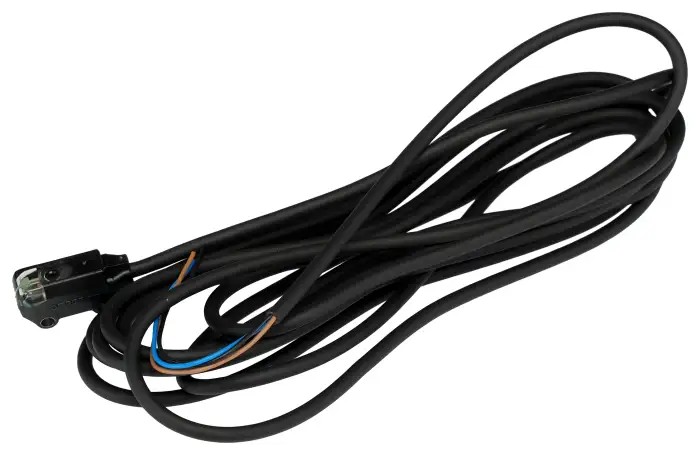

The device is mounted using screws, ensuring secure placement and stability. The sensor also utilizes pulse synchronization technology to maintain ambient light immunity, enhancing detection accuracy even in brightly lit areas. The pre-wired cable simplifies installation and reduces setup time, making it practical for manufacturing and industrial automation installations.

This photoelectric sensor finds use in automated machine processes for object detection, packaging systems for material handling accuracy, and robotics where precise proximity sensing is critical. Its IP67 rating allows deployment in dusty or wet environments such as manufacturing floors and processing plants.

Compact block style photoelectric sensor with 1 m detection range. Red LED light source enables precise sensing performance. IP67 rated housing provides robust ingress protection. Operates from -25°C to 55°C for versatile industrial use.

Fast 1 ms response time supports high-speed automation. NPN output type with 50 mA maximum current capacity. Durable Polybutylene Terephthalate housing material. Screw mount type for stable installation. Pre-wired cable allows easy connectivity.

Useful for automated machinery, packaging, and robotics. Explore EnvMart for a broad range of industrial Photoelectric Sensors and automation components to suit your applications.
