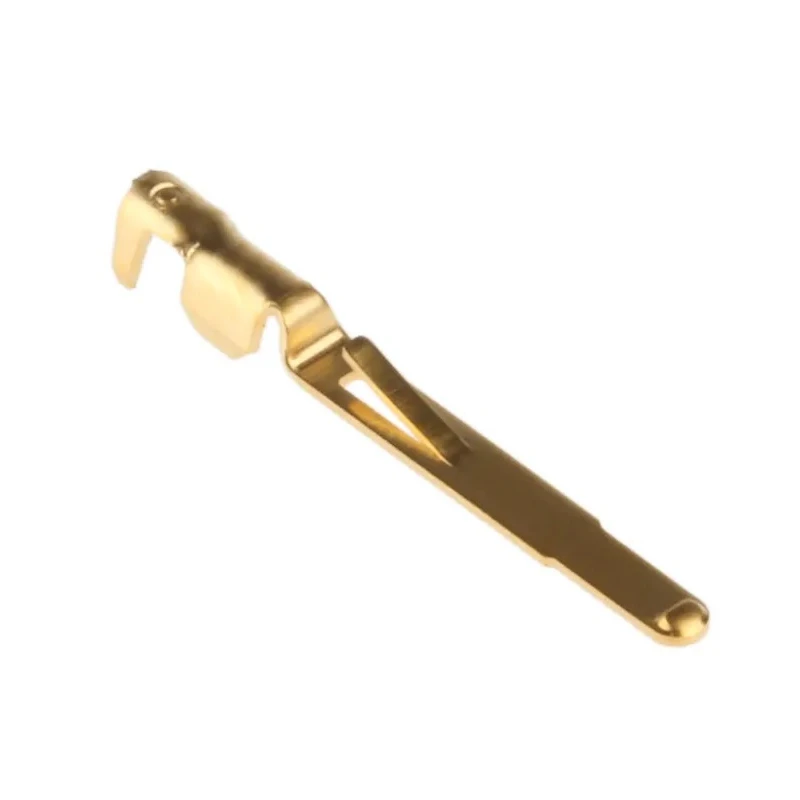

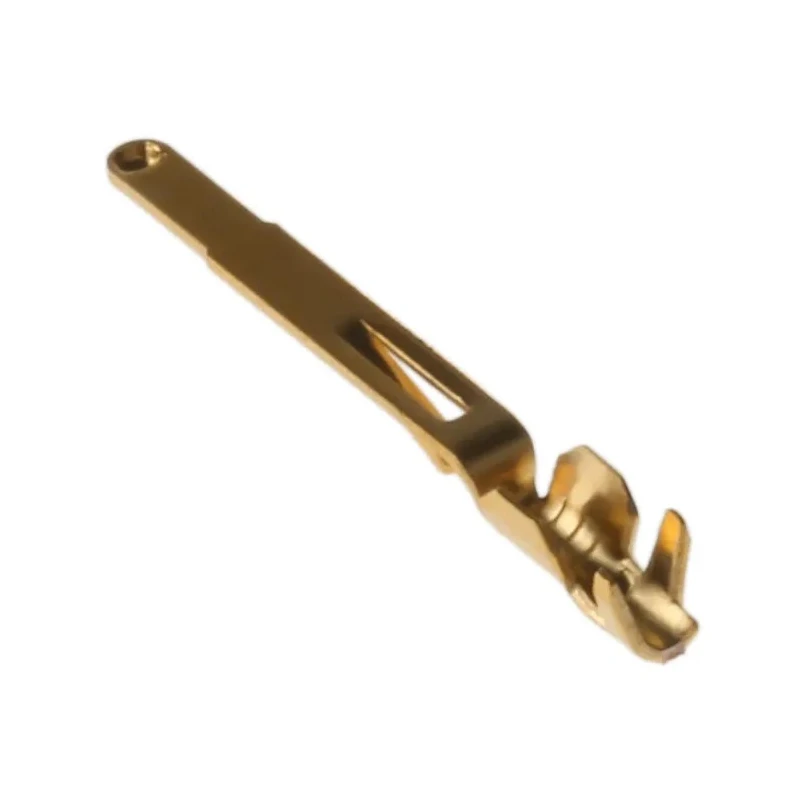

ITT Cannon Male Crimp Circular Connector Contact DL Series, 22AWG, Gold over Nickel Plating, Copper Alloy, 030-2409-003

ITT Cannon 030-2409-003 Male Crimp Circular Connector Contact DL Series is a precision copper alloy contact engineered for use with ZIF connectors, providing reliable and durable crimp termination for 22AWG wires. Featuring gold plating over nickel, this contact ensures low resistance and excellent corrosion protection, essential for critical electronic applications.

Designed to operate in a wide temperature range from -40°C to 105°C, this connector contact is suitable for demanding industrial, medical, and avionics environments. The DL series connectors facilitate high-density multi-pole connections with up to 360 pins, supporting complex instrumentation and diagnostic equipment.

The contact includes a 50μin gold bump plating enhancing electrical performance and minimizing contamination buildup, ensuring consistent signal integrity for high-speed digital and low current applications below 100mA. The zero insertion force (ZIF) design reduces wear and tear, considerably extending service life to up to 10000 mating cycles.

This male contact offers crimp termination, enabling secure cable mounting and reliable electrical performance with a maximum current rating of 5A. The DL range also includes backshell and strain relief options, along with polarization features to avoid mismating.

Constructed in China under ITT Cannon quality standards, this Circular Connector Contact is widely used in electronic components for industrial, laboratory, medical, telecommunications, and avionics sectors, where dependable electrical connections are vital for system integrity.

The connector contact supports a wide operating temperature range from -40°C up to 105°C. Contact plating consists of 50μin gold bump over nickel providing excellent conductivity and corrosion resistance. Crimp termination type facilitates cable mounting with ZIF connectors.

High pin count multi-pole connector compatibility enables usage in complex diagnostic and instrumentation equipment. Long mating cycle life ensures durability and reduces maintenance intervals. Cam actuated zero insertion force reduces wear on contacts during mating.

Metal and plastic plug and socket options provide shielding and mechanical robustness. Current rating is 5A suitable for power and signal applications. Connector contact material is copper alloy balancing conductivity and mechanical strength.
