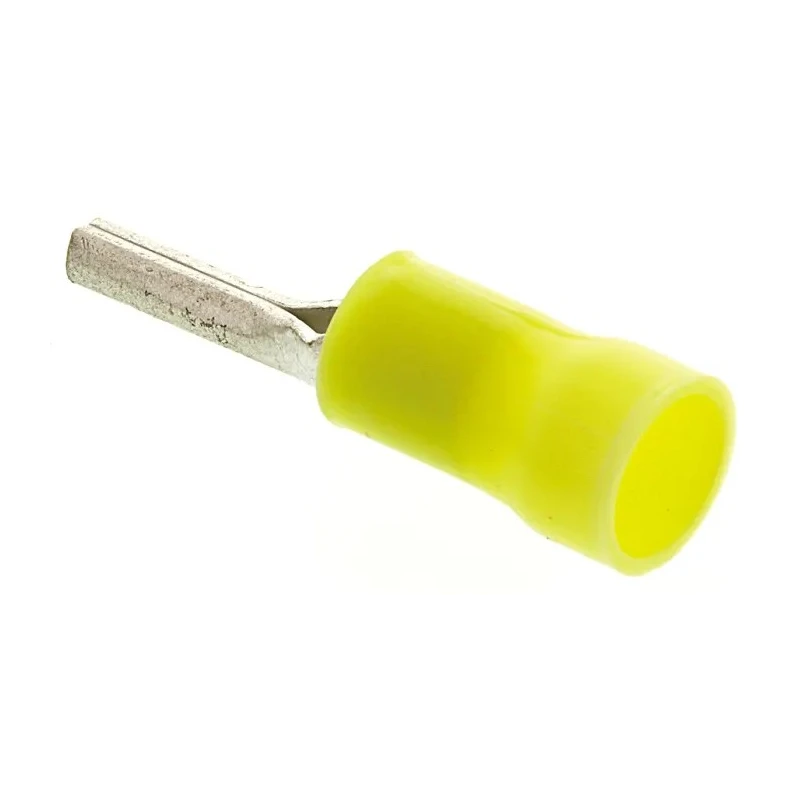

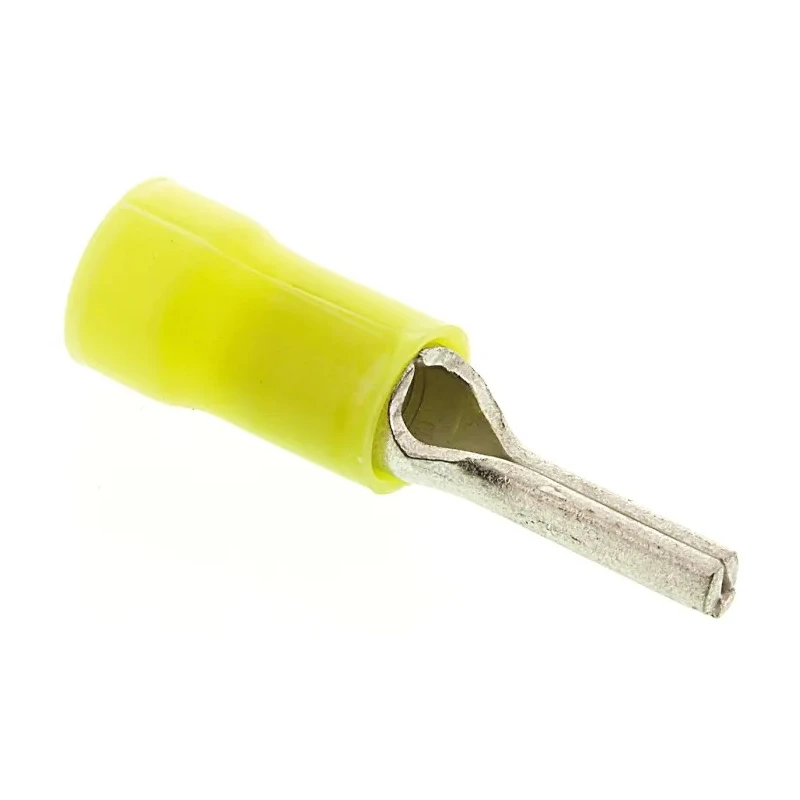

RS PRO TE Connectivity PLASTI-GRIP Insulated Tin Crimp Pin Connector 12 AWG to 10 AWG Yellow Nylon Insulation 165085-0

RS PRO 165085-0 Crimp Pin Connector is a high-quality insulated terminal designed by TE Connectivity for electronic and electrical applications. It features a nylon insulation sleeve that provides excellent dielectric strength with a 94V-0 rating, ensuring safety and durability in use. The connector is suitable for wire sizes ranging from 12 AWG to 10 AWG, accommodating wire cross-sections between 2.6 mm² and 6.6 mm².

The terminal is manufactured with high conductivity copper and finished with tin plating to resist corrosion and enhance electrical conductivity. Its yellow insulation sleeve enables easy visual identification and adherence to wiring color codes.

The crimp pin has an overall length of 29.2 mm with a pin diameter of 2.5 mm, and a pin length of 9.9 mm, designed for precise integration in electrical assemblies. Inside the terminal, the serrated barrel ensures maximum electrical contact and tensile strength after crimping, while the funnelled entry allows easy insertion of stripped wires to improve assembly speed and quality.

This product is ideal for industrial, manufacturing, electrical, and electronic assembly applications where dependable and safe wire termination is critical. It is not recommended for double wire use. Though no specific approval standards are stated, it meets reliability needs typical for professional electronic components.

RS PRO 165085-0 terminals offer an effective solution for secure and long-lasting electrical connections in multiple use cases including power connectors, control panels, and wiring harnesses.

Suitable for wire sizes from 12 AWG to 10 AWG ensuring broad compatibility. Constructed with a high conductivity tin-plated copper contact for reliable performance. Features a yellow nylon insulation sleeve rated to 94V-0 for high dielectric strength and safety.

Overall length of 29.2 mm with a pin diameter of 2.5 mm and pin length of 9.9 mm for precise fit. Designed with a serrated inner barrel to maximize electrical contact and tensile strength after crimping. Funnelled wire entry facilitates easy insertion of stripped wires enhancing installation efficiency.

Termination type is crimp, enabling strong mechanical and electrical connection. Color-coded yellow insulation helps in easy identification for wiring standards. Complies with industry requirements though no specific standards or approvals are indicated.
