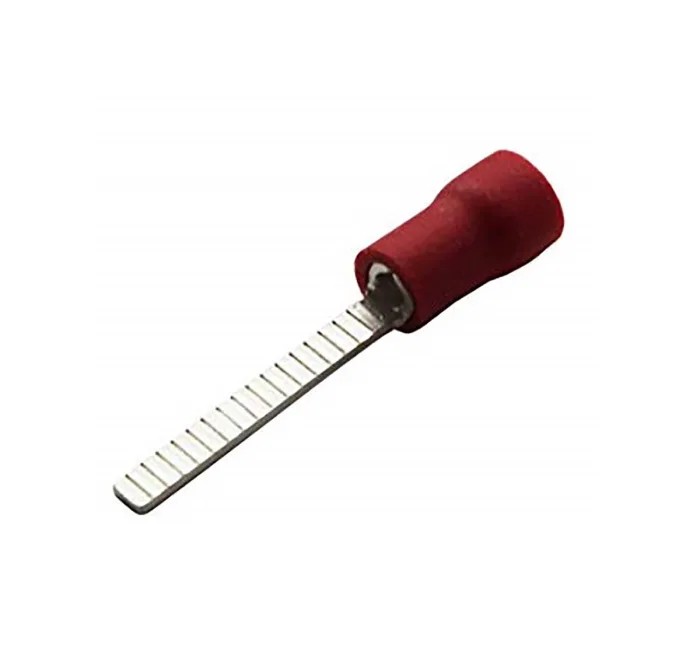

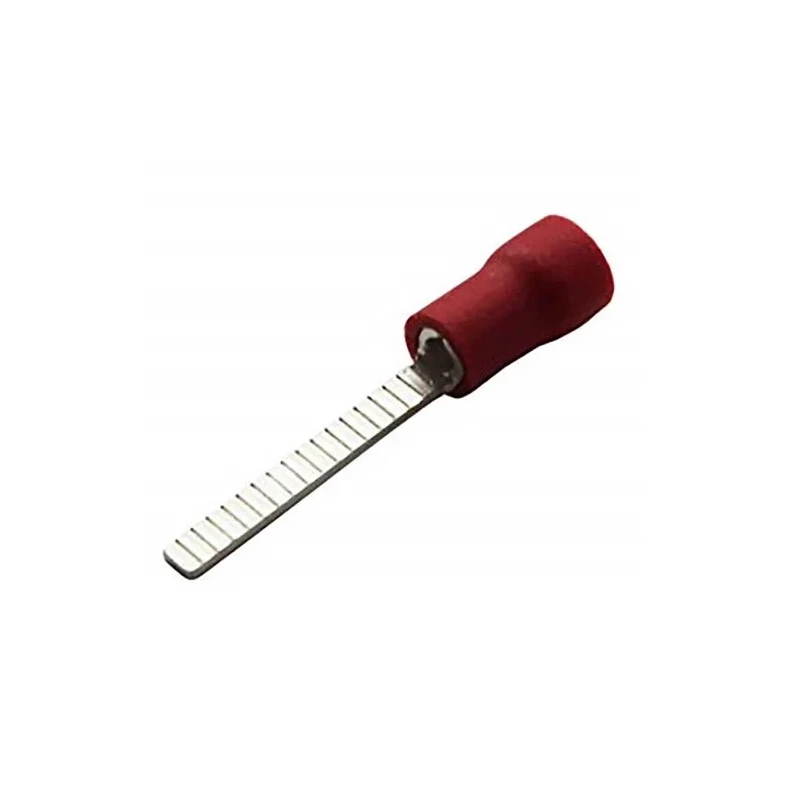

MECATRACTION C100 Insulated Tin Crimp Pin Connector 22 AWG to 16 AWG, 3.6 mm Pin Diameter, 21 mm Pin Length, Red C100-51225-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | MECATRACTION |
| Colour | Red |
| Model | C100-51225-2 |
| Insulation | Insulated |
| Contact Material | Copper |
| Series | C100 |
| Termination Type | Crimp |
| Insulation Material | Polycarbonate |
| Pin Diameter | 3.6mm |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Pin Length | 21mm |
| Material for disconnects | Tin-plated phosphorous bronze |
| Material for blade terminals | Tin-plated copper |
| RATP drawing | MR-3-52965 |
Key Features
- Offers secure electrical connections for copper cables with tin-plated contacts.
- Insulation made of durable polycarbonate material compliant with EN 45545.
- Suitable for conductor sizes from 0.34 mm² to 1.5 mm².
- Termination type is crimp ensuring firm and reliable attachment.
- Meets SNCF and RATP drawing standards.
- Red insulation color aids in easy identification during wiring.
- Contact plating is tin for corrosion resistance.
- Contact material is copper providing excellent conductivity.
Product Description
MECATRACTION C100-51225-2 insulated tin crimp pin connector is engineered for secure and reliable wire connections in electronic and electrical applications, supporting wire sizes between 22 AWG and 16 AWG. Its pin measures 3.6 mm in diameter and 21 mm in length, optimized for efficient connectivity.
The connector features high-quality copper contacts with tin plating to resist corrosion and ensure long-lasting conductivity. The insulation is made of polycarbonate, meeting EN 45545 standards for enhanced safety and durability, suitable for environments requiring compliance with international norms.
This crimp pin connector is designed to fit conductor sizes ranging from 0.34 mm² to 1.5 mm², making it versatile for various industrial, commercial, and electronic assembly uses. The termination method is crimped, providing strong and vibration-resistant connections.
Material choices include tin-plated phosphorous bronze for disconnects and tin-plated copper for blade terminals, ensuring mechanical strength alongside electrical performance. The red insulation color facilitates easy wiring identification in complex assemblies.
The product complies with SNCF drawing 10-5050-310 and RATP drawing MR-3-52965, which assures compatibility and standards adherence for professional applications. This makes it suitable for manufacturing, aerospace, railway, and other critical industrial sectors requiring high quality and safety in connections.
Offers secure electrical connections for copper cables with tin-plated contacts. Insulation made of durable polycarbonate material compliant with EN 45545. Suitable for conductor sizes from 0.34 mm² to 1.5 mm². Termination type is crimp ensuring firm and reliable attachment.
Meets SNCF and RATP drawing standards. Red insulation color aids in easy identification during wiring. Contact plating is tin for corrosion resistance. Contact material is copper providing excellent conductivity. Material for disconnects is tin-plated phosphorous bronze.
Material for blade terminals is tin-plated copper ensuring reliable performance.
Ideal for industrial, electrical, and electronic component manufacturing and repair, these Crimp Pin Connectors provide quality assurance and safety compliance. Browse MECATRACTION products and other connectors at EnvMart for your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 16 AWG, accommodating conductor sizes ranging from 0.34 mm² to 1.5 mm².
The pin diameter is 3.6 mm and the pin length is 21 mm, optimized for efficient connectivity.
The contacts are made of copper, which provides excellent conductivity, and are tin-plated for corrosion resistance.
The insulation is made of polycarbonate material, which is compliant with EN 45545 standards for safety and durability.
The termination type is crimp, ensuring a firm and reliable attachment for the wires.
It meets SNCF drawing 10-5050-310 and RATP drawing MR-3-52965, ensuring compatibility for professional applications.
The insulation is red, which aids in easy identification during wiring in complex assemblies.
Disconnects are made of tin-plated phosphorous bronze, while blade terminals are made of tin-plated copper, ensuring reliable performance.
The product is manufactured in India.
It is suitable for various industrial, commercial, and electronic assembly uses, especially in sectors requiring high-quality connections.
The crimping process provides strong and vibration-resistant connections, which are essential for maintaining electrical integrity in applications.
Yes, it is designed to comply with specific standards required in manufacturing, aerospace, and railway applications, ensuring safety and quality.
