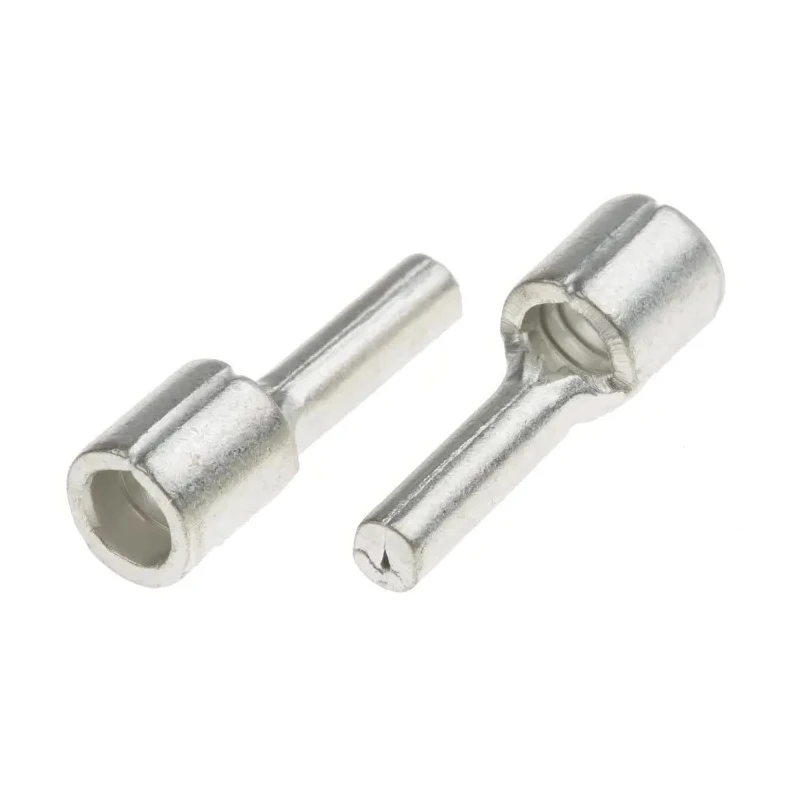

RS PRO Uninsulated Crimp Pin Connector 12 AWG to 10 AWG Copper Contact 2.8 mm Diameter 10 mm Length 809-2353
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 809-2353 |
| Insulation | Uninsulated |
| Overall Length | 26mm |
| Contact Material | Copper |
| Termination Type | Crimp |
| Pin Diameter | 2.8mm |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Pin Length | 10mm |
Key Features
- Constructed from high-quality copper with a brazed seam for durability.
- Uninsulated design suitable for reliable electrical connections.
- Compatible with wire sizes from 12 AWG to 10 AWG (2.5 mm² to 6 mm²).
- Features a 2.8 mm pin diameter and 10 mm pin length for secure fits.
- Overall length of 26 mm ensures effective installation in electrical assemblies.
- Termination type is crimp, providing strong mechanical and electrical connection.
- Manufactured in Taiwan, Province Of China adhering to RS PRO quality standards.
- Available as individual pins for flexible quantity use in various industrial and electronic applications.
Product Description
RS PRO 809-2353 is an uninsulated crimp pin connector engineered to provide reliable connectivity in electronic and electrical systems. It is designed to accommodate wire sizes ranging from 12 AWG to 10 AWG (2.5 mm² to 6 mm²), making it suitable for a variety of wiring requirements in power and industrial applications.
This connector features a copper contact material known for excellent electrical conductivity and corrosion resistance. The connector has a pin diameter of 2.8 mm and a pin length of 10 mm, offering precise and secure insertion into corresponding sockets or terminals.
The overall length of 26 mm allows for convenient handling and installation while maintaining a compact form factor. Its crimp termination type ensures a mechanically stable and electrically sound connection, which is essential in demanding environments like manufacturing, industrial automation, and electrical distribution.
Being uninsulated, it is important to use this crimp pin connector in appropriate applications where insulation is provided by other means or where direct contact is required.
The product is produced by RS PRO, a brand renowned for quality electronic components, and manufactured in Taiwan, Province Of China, ensuring consistent product reliability and performance.
Constructed from high-quality copper with brazed seam for enhanced durability. Allows easy crimp termination for secure wire attachment. Suitable for electrical, manufacturing, and automation industry applications. Supports wire gauge sizes 12 AWG to 10 AWG (2.5 mm² to 6 mm²).
Dimensionally precise 2.8 mm pin diameter and 10 mm pin length. Compact 26 mm overall length facilitates easy integration in assemblies. Non-insulated design suited for specific electrical configurations. Manufactured to high-quality standards in Taiwan, Province Of China.
This Crimp Pin Connector is ideal for use in industrial and laboratory environments, HVAC systems, manufacturing processes, and electrical assembly tasks requiring dependable wire termination solutions. For more options in RS PRO connectors and related electronic components, browse EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp pin connector is compatible with wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.5 mm² to 6 mm².
The pin diameter is 2.8 mm and the pin length is 10 mm, providing a secure fit for connections.
The overall length of this crimp pin connector is 26 mm, facilitating easy integration into electrical assemblies.
The contact material used in this connector is copper, known for its excellent electrical conductivity and corrosion resistance.
This connector uses a crimp termination type, ensuring a mechanically stable and electrically sound connection.
No, this model is uninsulated, which means it should be used in applications where insulation is provided by other means or where direct contact is acceptable.
This crimp pin connector is manufactured in Taiwan, Province Of China, adhering to RS PRO quality standards.
It is suitable for various industrial and electronic applications, including manufacturing, industrial automation, and electrical assembly tasks.
The minimum wire size is 2.5 mm² and the maximum wire size is 6 mm² for this connector.
The brazed seam enhances the durability of the connector, ensuring a reliable electrical connection in demanding environments.
The compact overall length of 26 mm allows for convenient handling and installation in various electrical assemblies.
The model number of this crimp pin connector is 809-2353, which can be used for identification in catalogs or inquiries.
