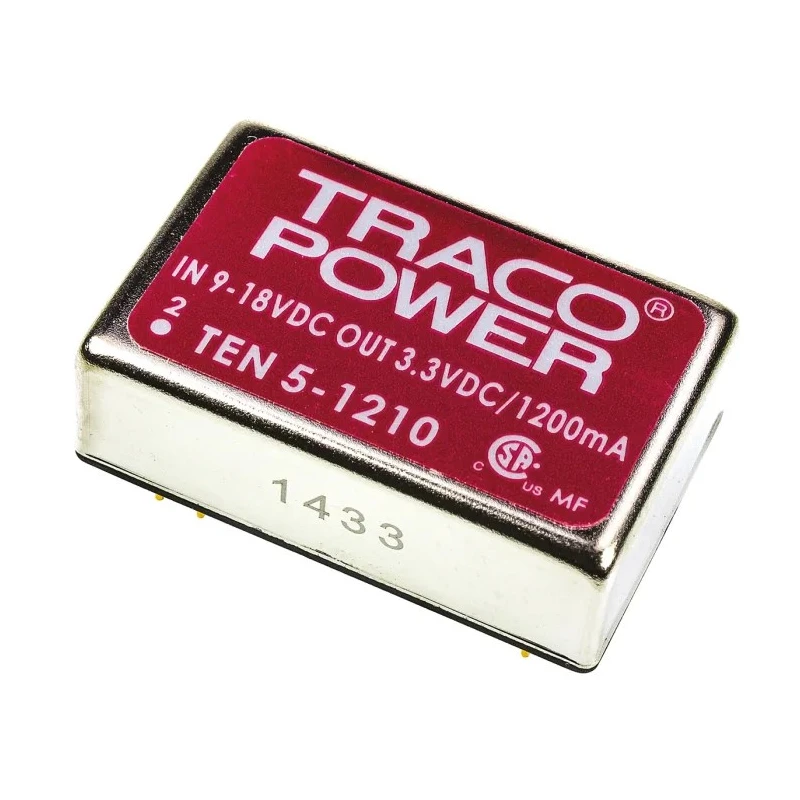

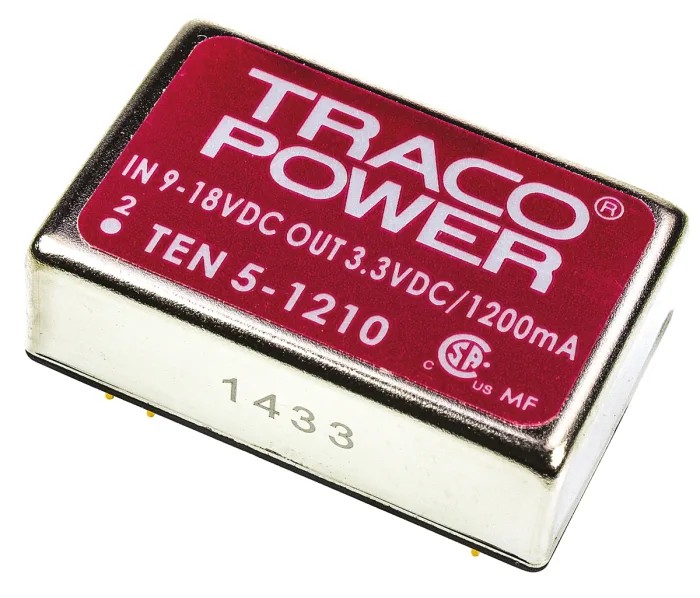

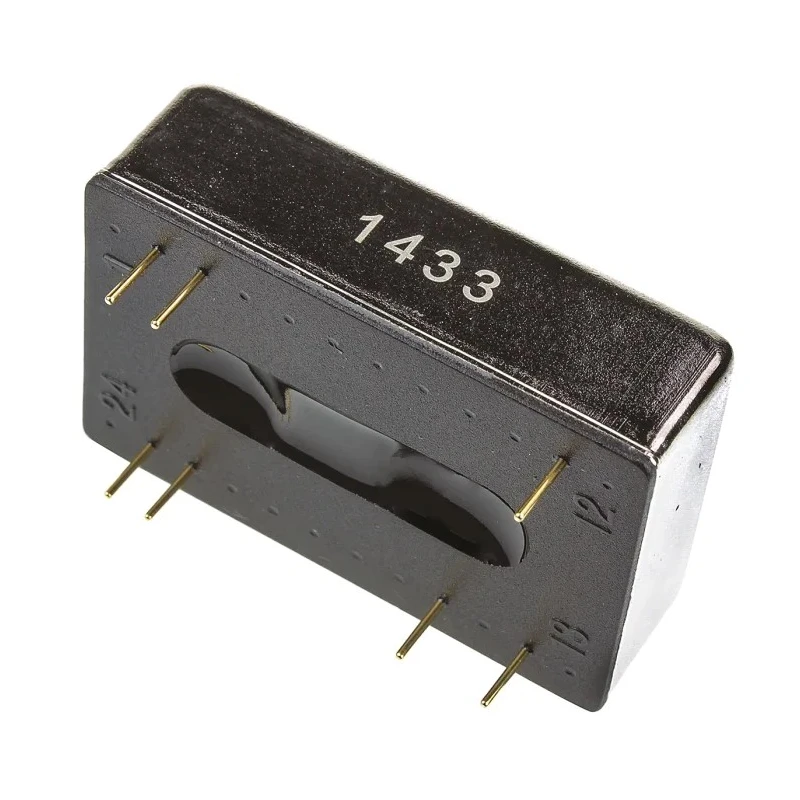

TRACOPOWER TEN 5 DC/DC Converter 3.3V DC 1.2A 18V DC Input 9V Input 6W Through Hole 85°C Max Temp TEN 5-1210

TRACOPOWER TEN 5-1210 is a high-performance DC/DC Converter providing 3.3V DC output at 1.2A with a maximum output power of 6W. The converter accepts input voltages ranging from 9V to 18V DC, offering a wide 2:1 input ratio, ideal for applications requiring flexible and stable power solutions. Packaged in a through-hole DIP-24 format measuring 32mm in length, 20mm in width, and 10mm in depth, it features a surface mount design that assures high reliability and ease of assembly.

Its impressive 1.5 kV DC isolation voltage enhances operational safety by protecting circuits from high voltage surges. The converter's efficiency of 77% reduces energy losses and thermal stress, making it suitable for continuous operation in industrial and telecommunications environments. Operating temperatures from -40°C to 85°C enable deployment in harsh conditions. Additionally, built-in EMI input filtering ensures compliance with EN 55022 and FCC Class A, eliminating the need for external filters.

The TEN 5-1210 model includes indefinite short circuit protection to safeguard the device and connected systems. It is engineered to support battery-operated equipment, industrial process control systems, telecommunication devices, and any other electronic applications requiring wide input ranges and regulated isolated DC-DC power conversion.

Operates with input voltages from 9V to 18V DC for flexible power sources. Provides regulated 3.3V DC output at 1.2A current suitable for sensitive electronics. Compact through-hole DIP-24 package dimensions: 32mm length, 20mm width, and 10mm depth.

High isolation voltage of 1.5 kV DC ensures safety and noise reduction. Efficiency of 77% contributes to lower heat dissipation and energy savings. Wide operating temperature range from -40°C up to 85°C supports harsh environments.

Built-in EMI input filter complies with EN 55022 and FCC Class A standards without extra components. Designed for industrial, telecommunications, battery-powered, and process control applications. MTBF is 1,000,000 hours for robust reliability and long lifetime.

Indefinite short circuit protection enhances device safety during fault conditions.

This TRACOPOWER DC/DC converter is manufactured with superior quality components in Taiwan, Province Of China, assuring consistent performance and durability. Its combination of high isolation, efficiency, and input flexibility makes it an excellent choice for powering sensitive electronic systems in industrial, laboratory, and commercial sectors.
